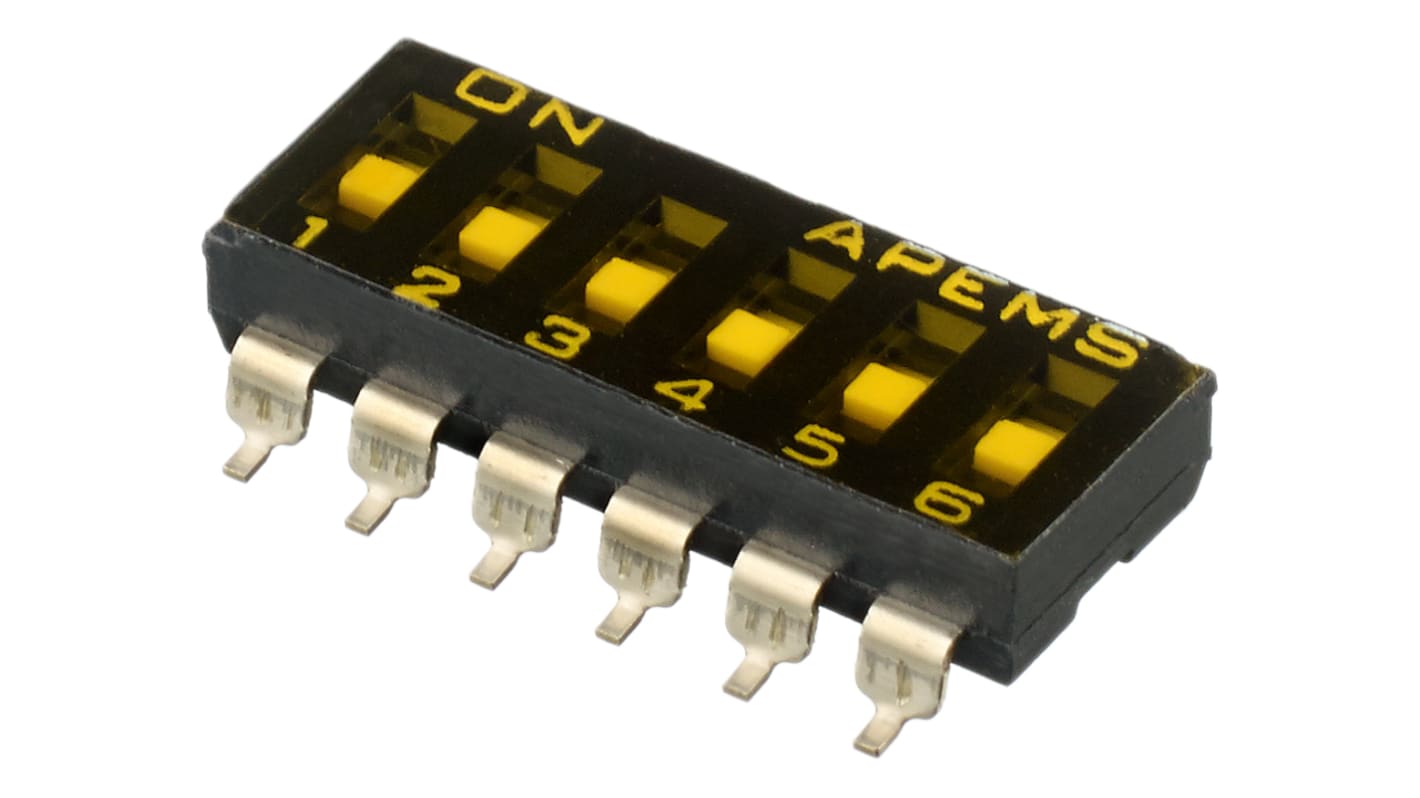

6 Way Surface Mount DIP Switch SPST, Recessed Actuator Slide Actuator

  • RS Stock No. 877-2318
  • Mfr. Part No. IKD0603000
  • Brand Apem
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Apem DIP Switch - IKD Series

The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting

Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 25 (Switching) mA @ 24 V dc, 100 (Non-Switching) mA @ 50 Vdc
Contact Material Phosphor Bronze (Moving Contact)
Number of Positions 6
Mounting Type Surface Mount
Actuator Type Recessed Actuator Slide
Package Style DIP
Maximum Operating Temperature +85°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +85°C
Dielectric Strength 500V ac
Voltage Rating 24 V dc, 50 V dc
364 In stock - FREE next working day delivery available
Price Each (In a Tube of 28)
£ 0.743
(exc. VAT)
£ 0.892
(inc. VAT)
Units
Per unit
Per Tube*
28 - 112
£0.743
£20.804
140 - 252
£0.698
£19.544
280 - 672
£0.639
£17.892
700 +
£0.579
£16.212
*price indicative
