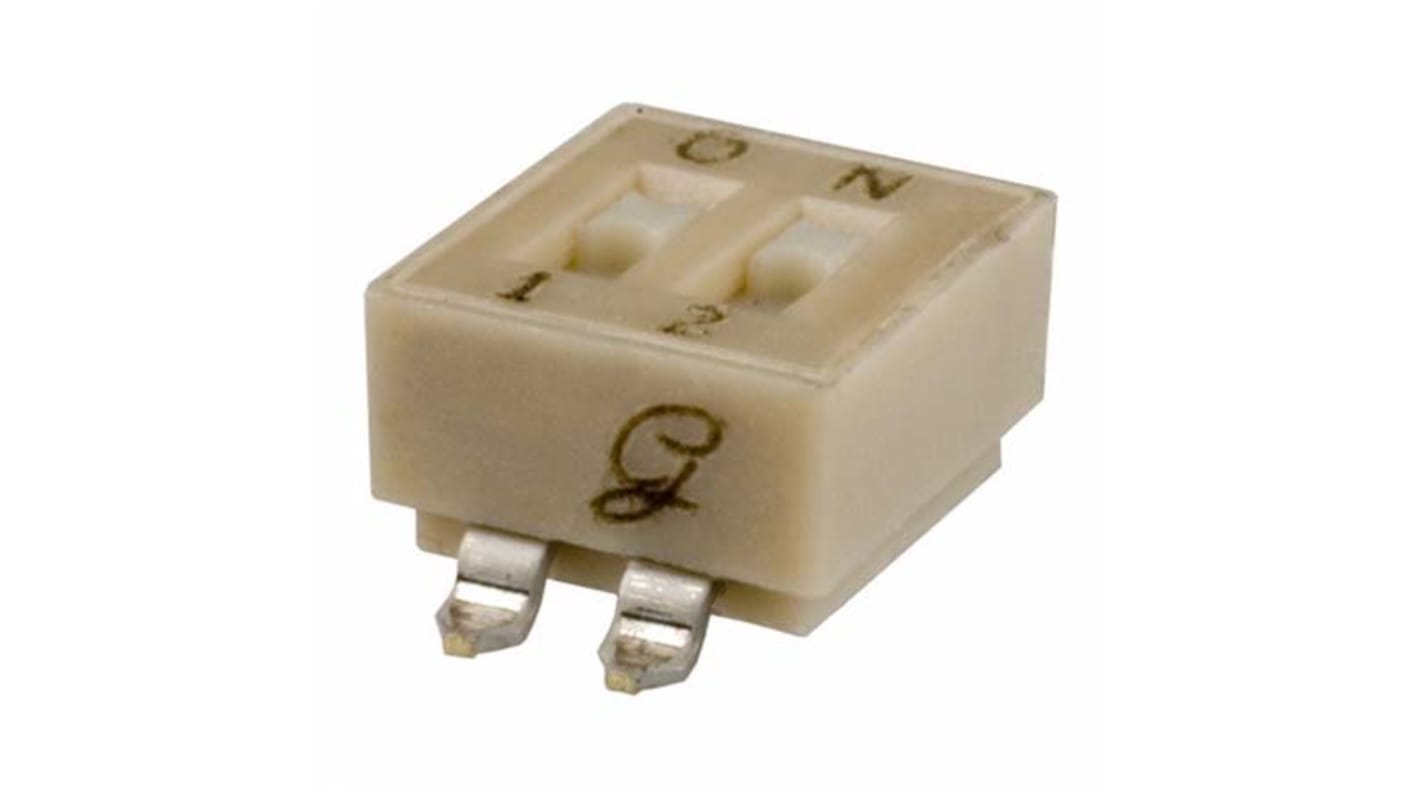

2 Way Surface Mount DIP Switch SPST

  • RS Stock No. 876-7512
  • Mfr. Part No. 90HBW02PT
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Low Profile Series 90HB

Compatible with SMT assembly, including Reflow and Vapour-Phase
Top seal withstands high pressure aqueous cleaning
Maximum process temperature of 260 ºC
Polyimide film tape seal

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 3 A
Contact Material Copper Alloy
Number of Positions 2
Mounting Type Surface Mount
Actuator Type Slide
Package Style DIP
Mechanical Life 2000Operations
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
Dielectric Strength 500V
Available to back order for despatch 30/06/2020
Price Each
£ 1.85
(exc. VAT)
£ 2.22
(inc. VAT)
Units
Per unit
1 - 9
£1.85
10 - 24
£1.80
25 - 49
£1.75
50 - 99
£1.71
100 +
£1.66
