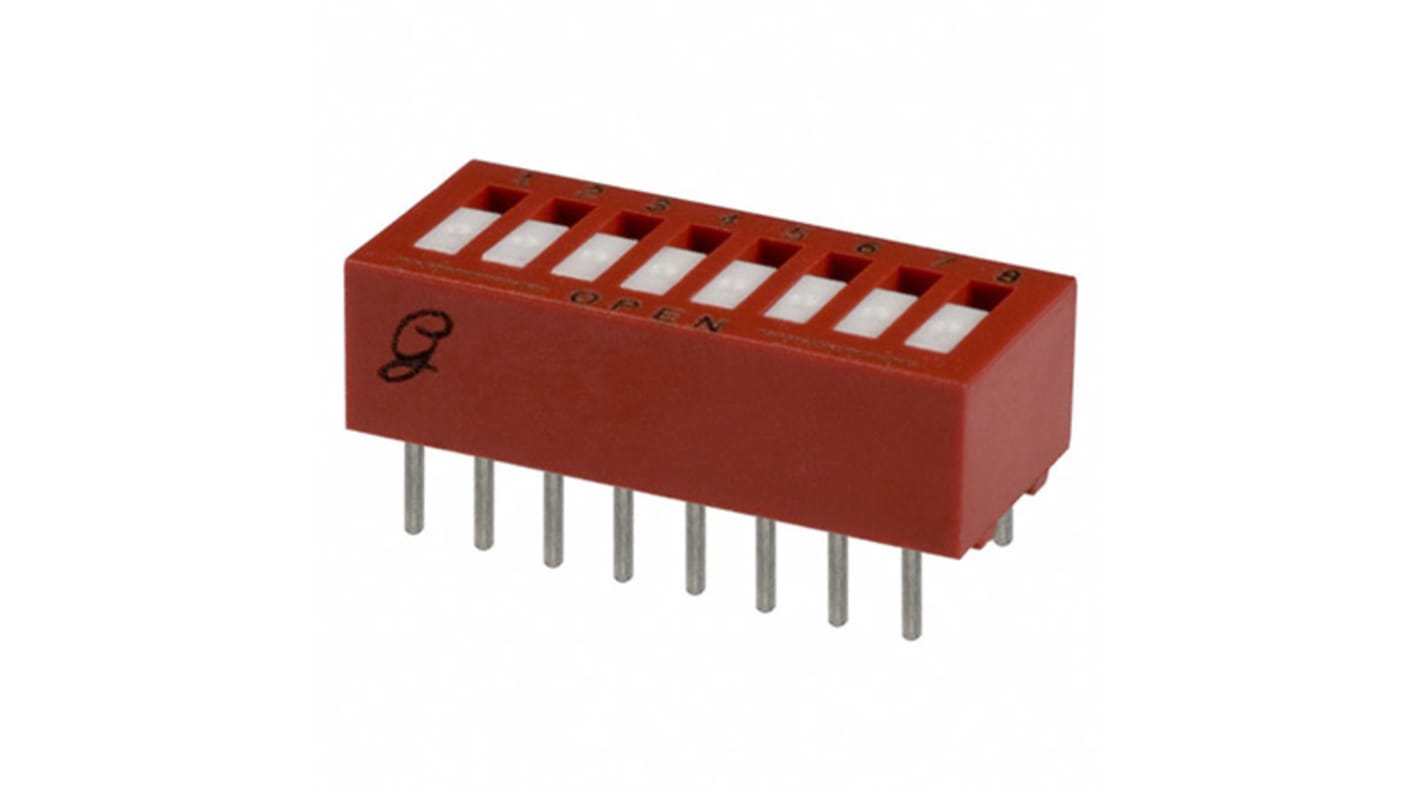

8 Way Through Hole DIP Switch SPST, Piano Actuator

  • RS Stock No. 876-7470
  • Mfr. Part No. 76RSB08ST
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Grayhill 76 Series Through-Hole DIP Switches

The 76 series of through-hole DIP switches from Grayhill are easy to install while being more convenient to use than pin headers and jumper blocks.
This series of SPST DIP switches are available in rocker, PIANO-DIP and raised & recessed styles.

Features:
Spring & Ball Contact
Sealed Base as Standard
Optional Top Tape Seal
2 to 12 Position Versions Available

Note

To order top seal versions add "S" to the Grayhill part number

Specifications
Attribute Value
Contact Configuration SPST
Number of Positions 8
Mounting Type Through Hole
Actuator Type Piano
Package Style DIP
Available to back order for despatch 09/11/2020
Price Each (In a Pack of 10)
£ 1.803
(exc. VAT)
£ 2.164
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£1.803
£18.03
*price indicative
