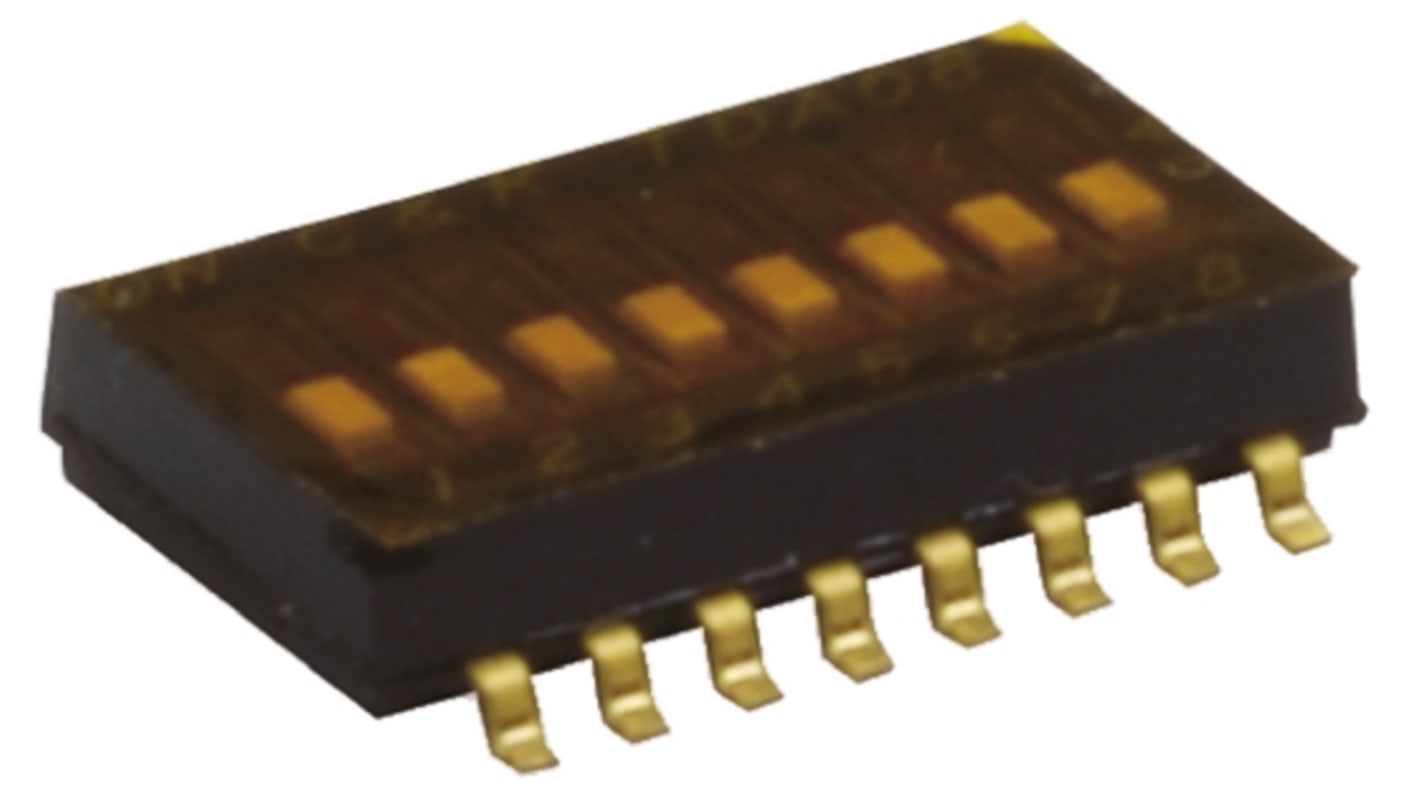

C & K 8 Way Surface Mount DIP Switch SPST, Flush Actuator
- RS Stock No.:
- 793-1784
- Mfr. Part No.:
- TDA08H0SB1
- Brand:
- C & K
361 In stock - FREE next working day delivery available
Added
Price Each
£2.74
(exc. VAT)
£3.29
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.74 |
| 10 - 39 | £2.48 |
| 40 - 119 | £2.37 |
| 120 + | £2.26 |
- RS Stock No.:
- 793-1784
- Mfr. Part No.:
- TDA08H0SB1
- Brand:
- C & K
Technical Reference
Legislation and Compliance
Product Details
C & K TDA Series Half Pitch
C & K TDA series of ultra-miniature surface mount half pitch DIP switches. Applications include hand held devices, computers, test equipment and instrumentation.
Bifurcated contacts for increased electrical reliability
Switch contact rating: 25 mA @ 24 V dc
Electrical Life: 1000 cycles minimum
Switch contact rating: 25 mA @ 24 V dc
Electrical Life: 1000 cycles minimum
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 8 |
| Mounting Type | Surface Mount |
| Contact Material | Gold over Nickel Plated Copper Alloy |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Flush |
| Contact Current Rating | 25 mA@ 24 V dc |
| Mechanical Life | 1000Cycles |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
