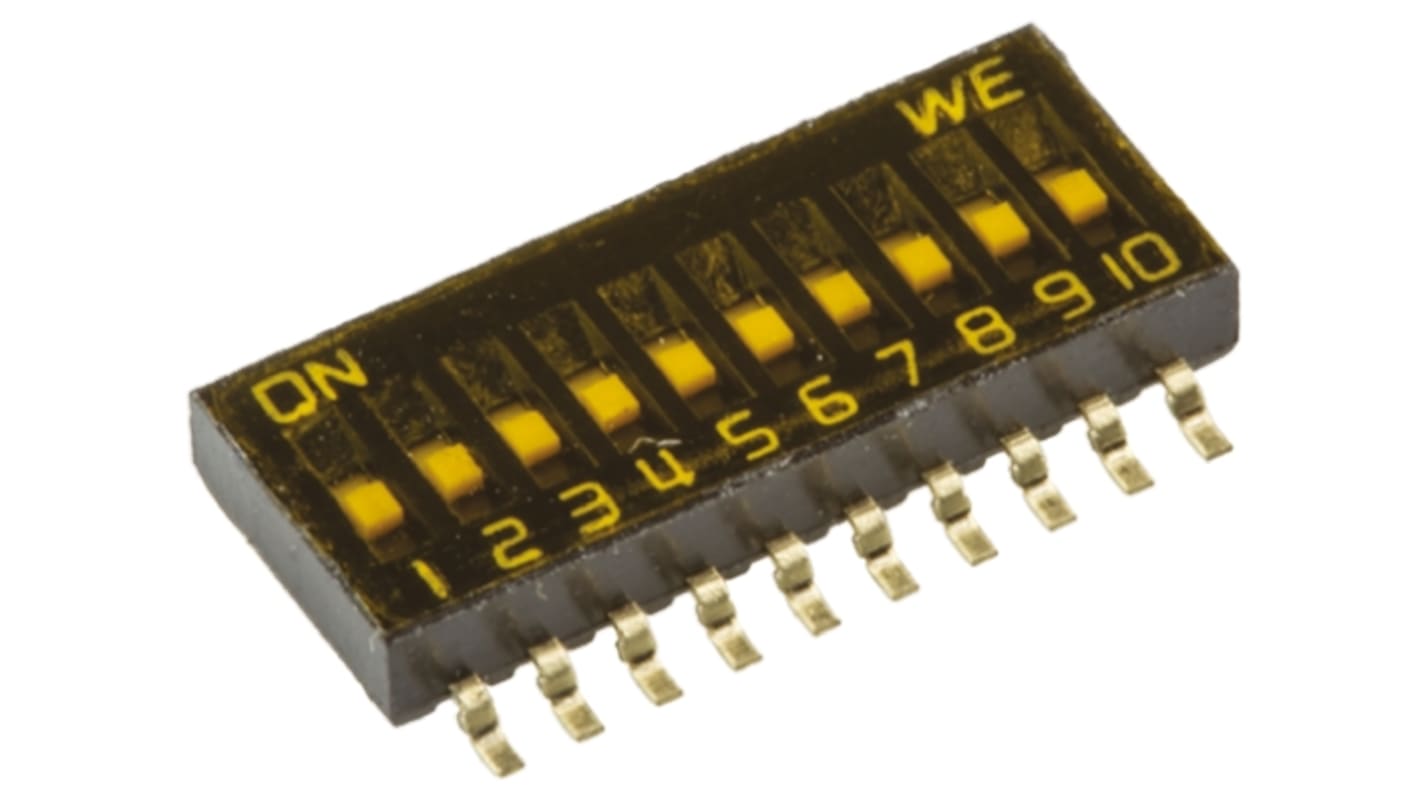

10 Way Surface Mount DIP Switch 10P, Flat Actuator

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Wurth Elektronik Low Profile

Surface mount, low profile DIP switches from Wurth Elektronik

Top tape seal
Gold plated contacts
Operating temperature -40°C to +85°C
Reflow Soldering according to JEDEC J-STD 020 Hot Air3 cycles max

Dual-In-Line Switches

Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.

Specifications
Attribute Value
Contact Configuration 10P
Contact Current Rating 25 mA@ 24 V dc
Contact Material Copper Alloy
Number of Positions 10
Mounting Type Surface Mount
Actuator Type Flat
Package Style DIP
Mechanical Life 2000Cycles
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
Priced to Clear Yes
Voltage Rating 24V dc
Dielectric Strength 300V ac
Available to back order for despatch when stock is available
Price Each
Was £2.57
£ 1.39
(exc. VAT)
£ 1.67
(inc. VAT)
Units
Per unit
1 +
£1.39
