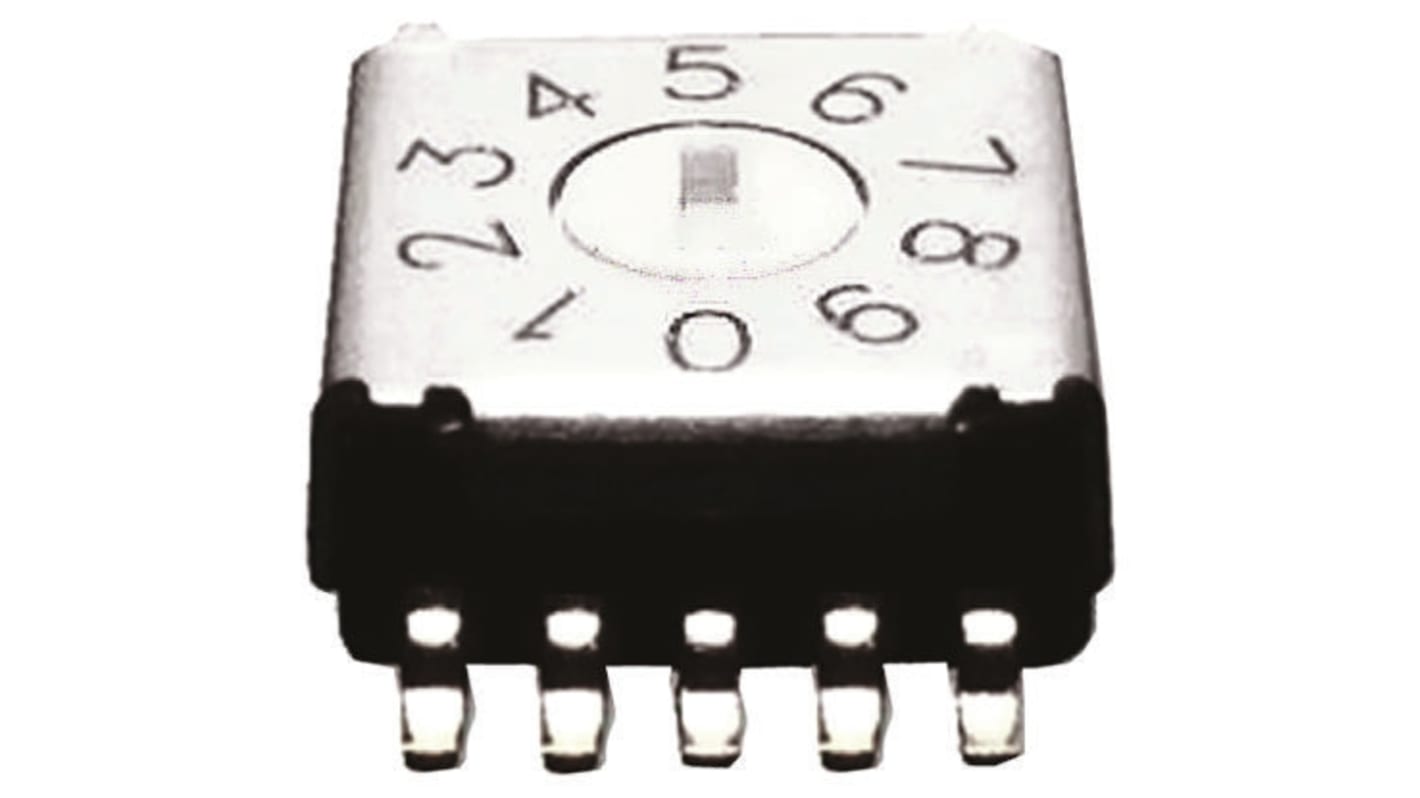

10 Way Surface Mount DIP Switch, Rotary Flush Actuator

  • RS Stock No. 707-2917
  • Mfr. Part No. A6KS-104RF
  • Brand Omron
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Miniature Rotary DIP Switch - A6K/A6KS Series

Miniature 7.2 x 7.2 mm size
Mounting space reduced by 50% (compared to conventional models)
Gold-plated contacts ensure high reliability

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Current Rating 25 mA@ 24 V dc
Contact Material Gold Plated
Number of Positions 10
Mounting Type Surface Mount
Actuator Type Rotary Flush
Package Style DIP
Maximum Operating Temperature +80°C
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +80°C
Voltage Rating 24V dc
135 In stock for FREE next working day delivery
Price Each
£ 4.37
(exc. VAT)
£ 5.24
(inc. VAT)
Units
Per unit
1 - 4
£4.37
5 - 9
£4.07
10 - 24
£3.96
25 - 49
£3.87
50 +
£3.67
