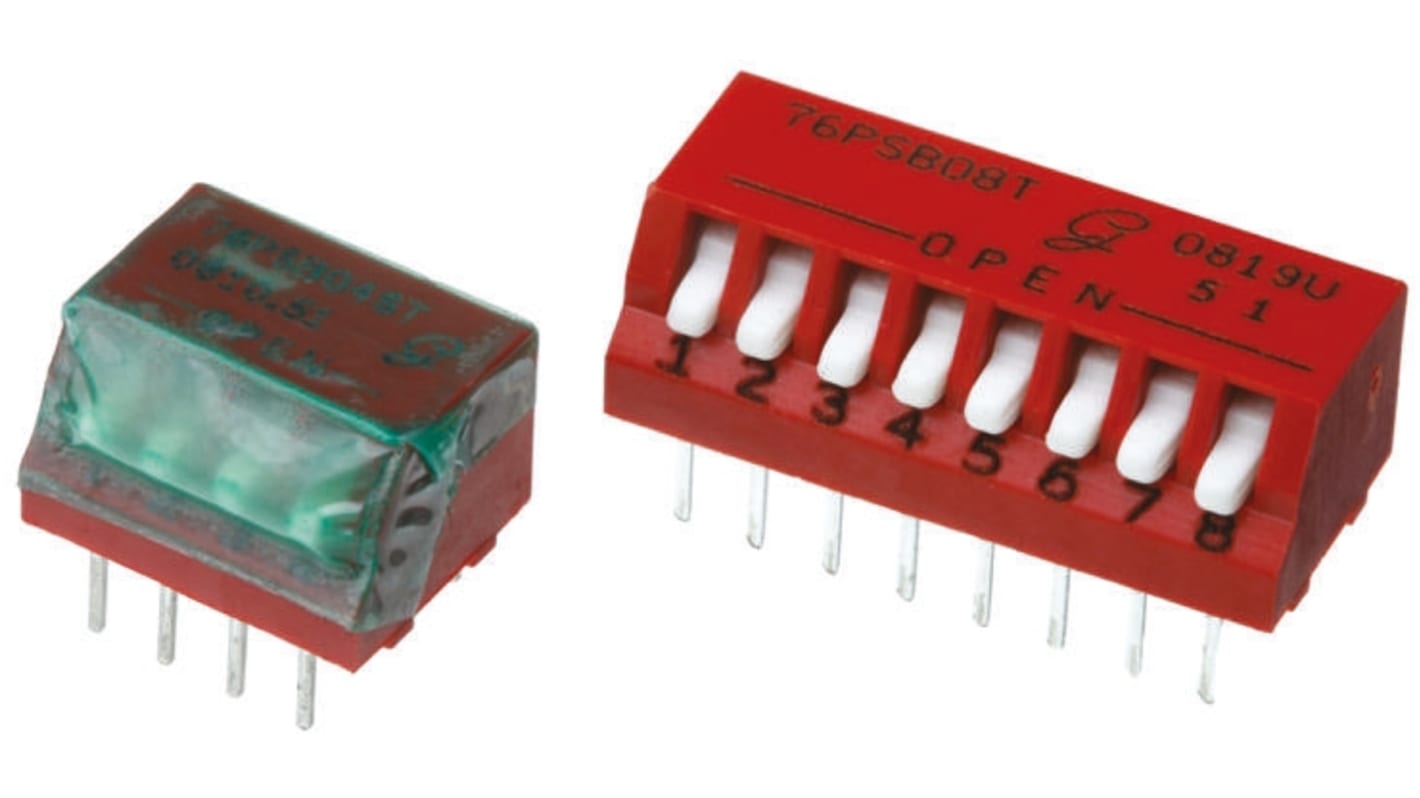

8 Way Through Hole DIP Switch SPST, Piano Actuator

  • RS Stock No. 690-3542
  • Mfr. Part No. 76PSB08ST
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Series 76 SPST through-hole mounting

Raised and Recessed, Rocker and Piano actuator styles
Sealed base as standard
Spring and ball contacts

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 150 mA@ 24 V dc
Contact Material Gold over Nickel Plated Copper Alloy
Number of Positions 8
Mounting Type Through Hole
Actuator Type Piano
Package Style DIP
Mechanical Life 2000Operations
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +85°C
48 In stock for FREE next working day delivery
Price Each (In a Pack of 3)
£ 1.547
(exc. VAT)
£ 1.856
(inc. VAT)
Units
Per unit
Per Pack*
3 - 147
£1.547
£4.641
150 - 297
£1.397
£4.191
300 - 747
£0.983
£2.949
750 - 1497
£0.92
£2.76
1500 +
£0.893
£2.679
*price indicative
