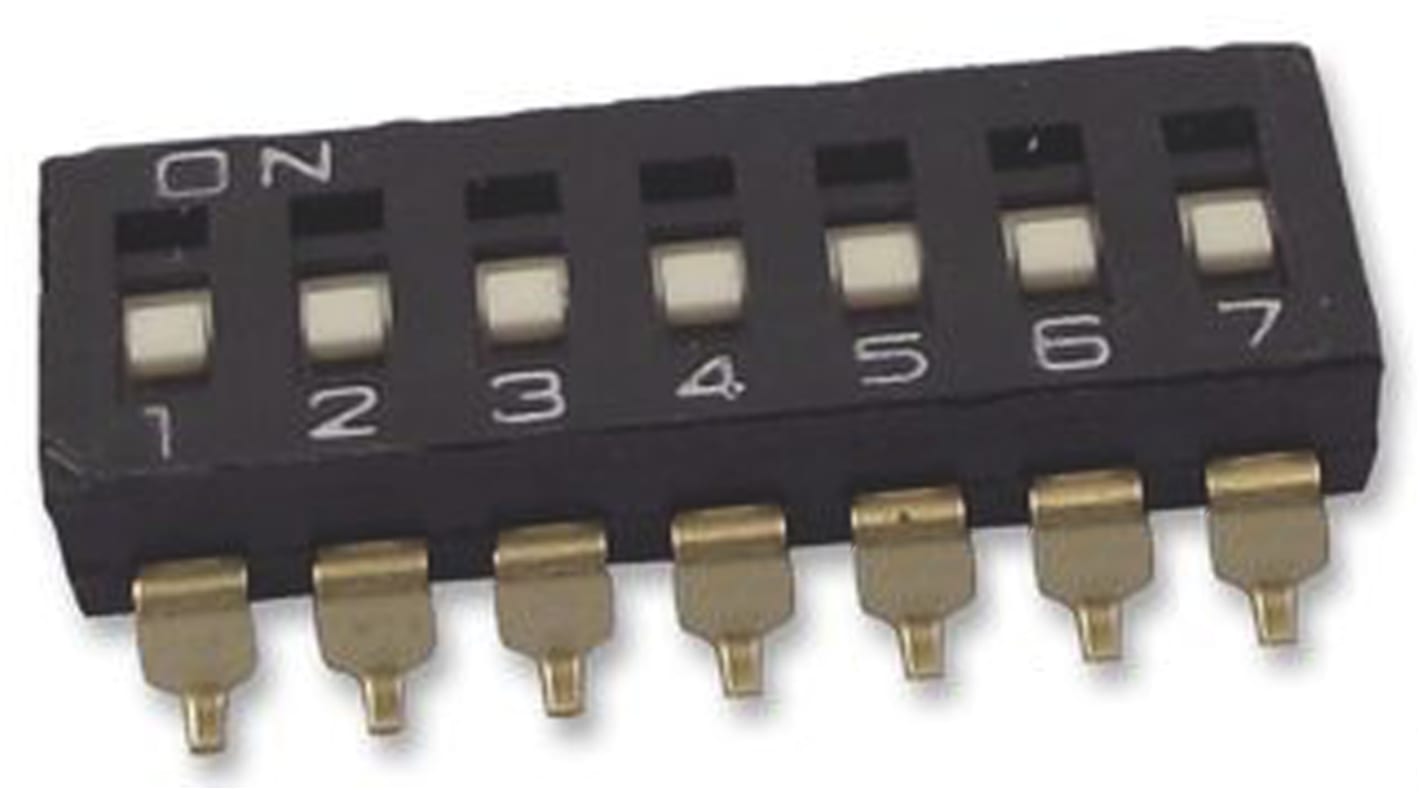

Omron 7 Way Surface Mount DIP Switch 7P
- RS Stock No.:
- 682-1024
- Mfr. Part No.:
- A6S-7104-H
- Brand:
- Omron
- RS Stock No.:
- 682-1024
- Mfr. Part No.:
- A6S-7104-H
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Slide Switch
Surface mount DIL switches designed to DIL standards. Allow automatic mounting with IC insertion machines.
Surface mounting
Flat actuators available as sealed tape versions
Gold plated contacts
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min at 250Vdc
RoHS compliant
Mechanical life: 1000 operations
Flat actuators available as sealed tape versions
Gold plated contacts
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min at 250Vdc
RoHS compliant
Mechanical life: 1000 operations
Dual-In-Line Switches
Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 7 |
| Mounting Type | Surface Mount |
| Contact Configuration | 7P |
| Contact Material | Gold Plated |
| Package Style | DIP |
| Actuator Type | Slide |
| Contact Current Rating | 25 mA@ 24 V dc |
| Mechanical Life | 1000Operations |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Dielectric Strength | 500V ac |
- RS Stock No.:
- 682-1024
- Mfr. Part No.:
- A6S-7104-H
- Brand:
- Omron
