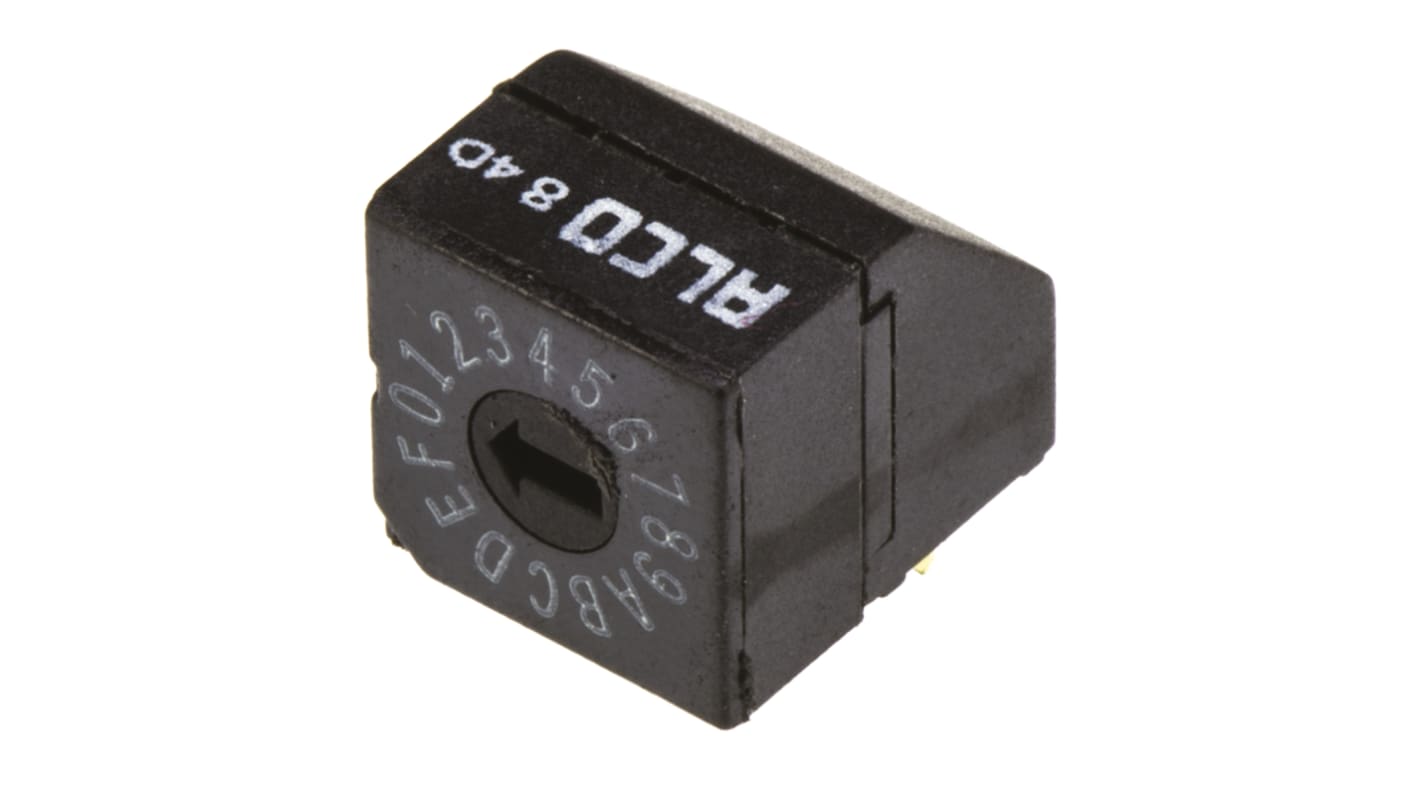

TE Connectivity 16 Way Through Hole DIP Switch 16P, Rotary Flush Actuator
- RS Stock No.:
- 639-4806
- Mfr. Part No.:
- DRD16RAE04
- Brand:
- TE Connectivity
170 In stock - FREE next working day delivery available
Added
Price Each
£3.74
(exc. VAT)
£4.49
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.74 |
| 10 - 19 | £3.66 |
| 20 + | £3.56 |
- RS Stock No.:
- 639-4806
- Mfr. Part No.:
- DRD16RAE04
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Miniature Rotary Encoded Switches
Contact rating: 0.4VA @ 20Vdc max
Contact resistance: 50mΩ max
Life expectancy: 10000 rotations
Temperature range: -30 to +85°C
5-second resistance to wave soldering at 285°C (mounted on 1.5mm card)
Resistant to ultrasound cleaning in a solvent solution, 10% contaminated by fluxing agent
Gold plated contacts
Contact resistance: 50mΩ max
Life expectancy: 10000 rotations
Temperature range: -30 to +85°C
5-second resistance to wave soldering at 285°C (mounted on 1.5mm card)
Resistant to ultrasound cleaning in a solvent solution, 10% contaminated by fluxing agent
Gold plated contacts
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 16 |
| Mounting Type | Through Hole |
| Contact Configuration | 16P |
| Contact Material | Gold over Nickel Plated Copper Alloy |
| Actuator Type | Rotary Flush |
| Contact Current Rating | 20 mA@ 20 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| Dielectric Strength | 300V ac |
