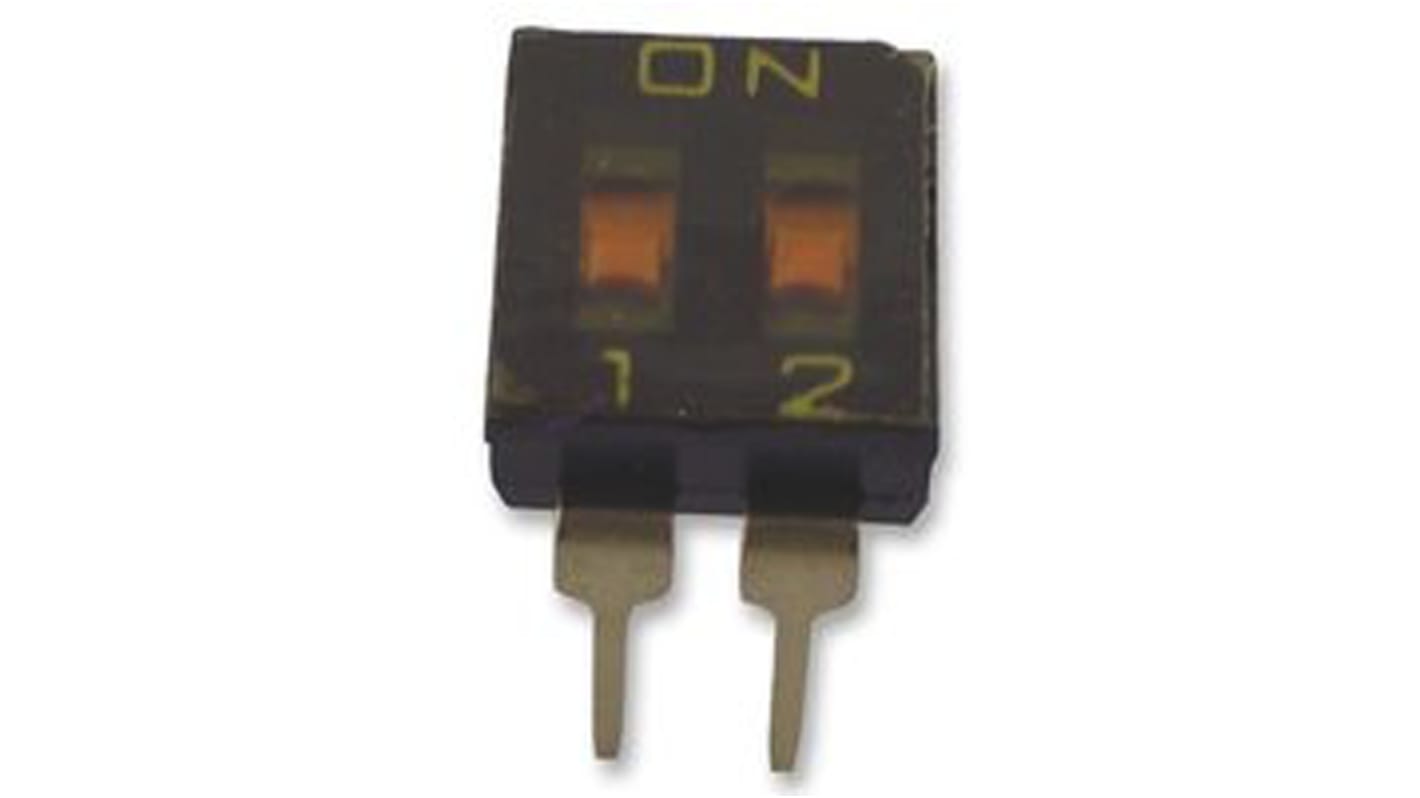

Omron 2 Way Through Hole DIP Switch DPST

RS Stock No.:: 616-0978
Mfr. Part No.:: A6T-2102
Brand:: Omron

Omron 2 Way Through Hole DIP Switch DPST

310 In stock - FREE next working day delivery available

Added

Price Each (In a Pack of 5)

£1.35

(exc. VAT)

£1.62

(inc. VAT)

Units	Per unit	Per Pack*
5 - 245	£1.35	£6.75
250 +	£1.006	£5.03
*price indicative

RS Stock No.:: 616-0978
Mfr. Part No.:: A6T-2102
Brand:: Omron

Technical Reference

A6T A6S Series Data Sheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Slide Switch, Raised and Flush Actuator

Through board mount DIL switches designed to DIL standards. Allow automatic mounting with IC insertion machines.

Through board mounting
Seal tape versions available
Gold plated contacts
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min at 250Vdc
RoHS compliant
Mechanical life: 1000 operations

Note

Unless stated otherwise, these switches are not suitable for immersion cleaning

Specifications

Attribute	Value
Number of Positions	2
Mounting Type	Through Hole
Contact Material	Gold Plated
Contact Configuration	DPST
Package Style	DIP
Actuator Type	Slide
Contact Current Rating	25 mA@ 24 V dc
Mechanical Life	1000Operations
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +70°C
Dielectric Strength	500V ac
