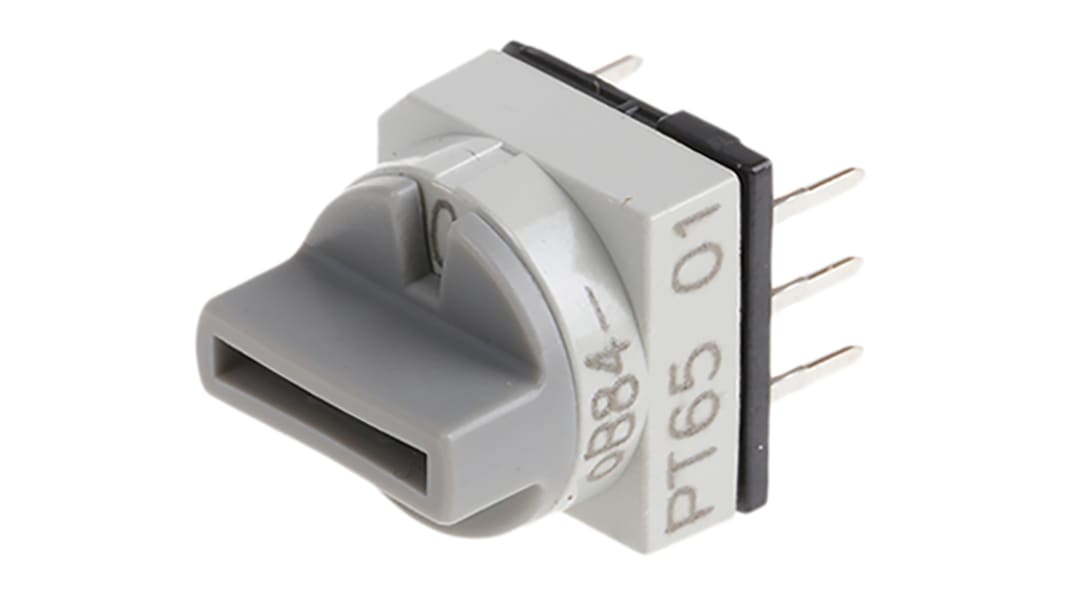

10 Way Through Hole DIP Switch, Wheel Actuator

  • RS Stock No. 379-5177
  • Mfr. Part No. PT65501
  • Brand Hartmann
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Slotted Head Rotary Encoder

Flux sealed & process washable
Contact rating: 150mA @ 24Vdc
Contact resistance: <80mΩ
Life: >104 operations
Positive detent
Soldering temperature: 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max.
Gold plated contacts

//media.rs-online.com/t_line/L175960-01.gif
//media.rs-online.com/t_line/L175960-02.gif
//media.rs-online.com/t_line/L379381-01.gif

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Current Rating 150 mA@ 24 V dc
Contact Material Gold over Nickel Plated Phosphor Bronze
Number of Positions 10
Mounting Type Through Hole
Actuator Type Wheel
Package Style DIP
Mechanical Life 10000Operations
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
70 In stock for FREE next working day delivery
Price Each
£ 5.13
(exc. VAT)
£ 6.16
(inc. VAT)
Units
Per unit
1 - 49
£5.13
50 - 99
£4.63
100 - 249
£3.36
250 - 499
£2.96
500 +
£2.77
