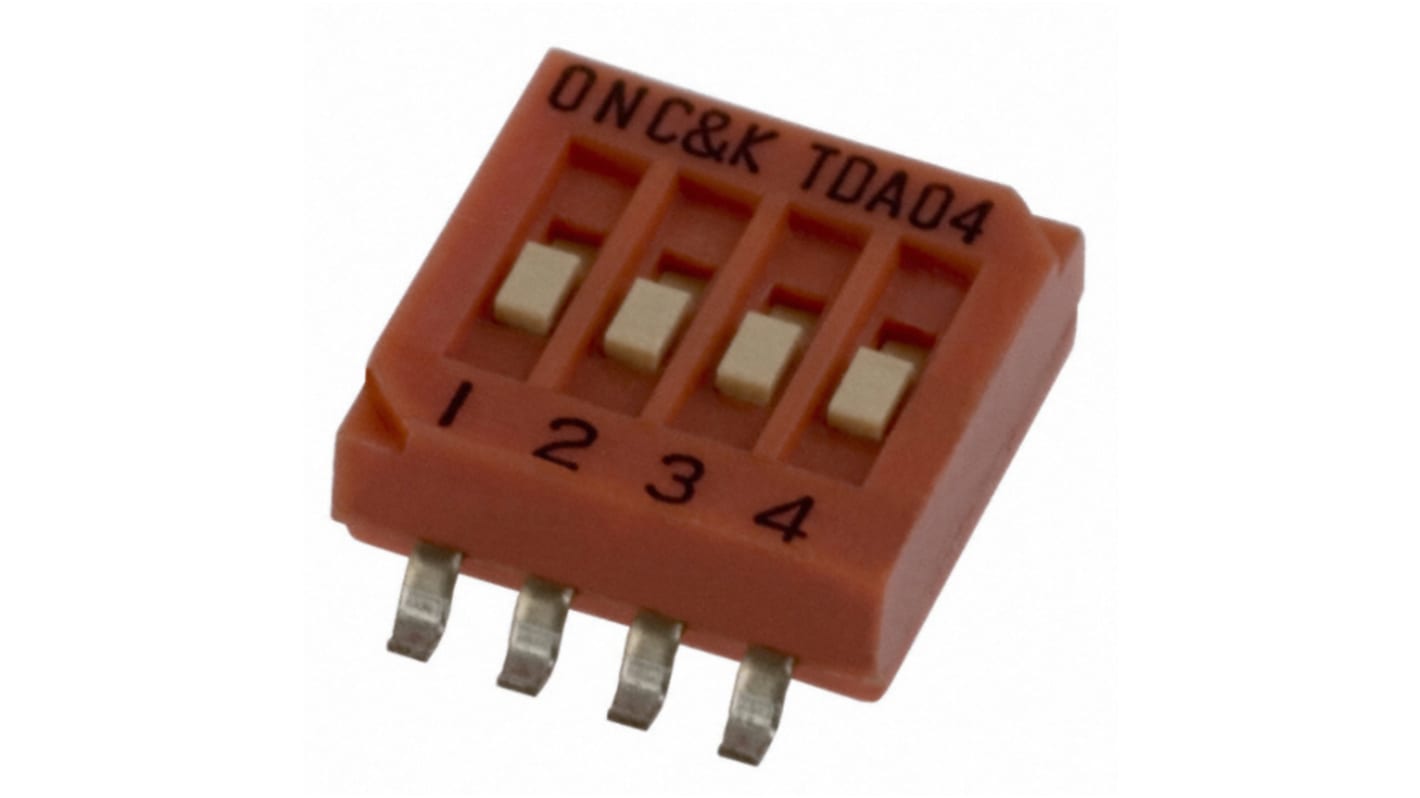

C & K 4 Way Surface Mount DIP Switch SPST, Flush, Recessed, Slide Actuator
- RS Stock No.:
- 161-2975
- Mfr. Part No.:
- TDA04H0SB1R
- Brand:
- C & K
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Pack of 5)
£2.42
(exc. VAT)
£2.90
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 10 | £2.42 | £12.10 |
| 15 - 45 | £2.30 | £11.50 |
| 50 - 95 | £2.058 | £10.29 |
| 100 - 245 | £1.984 | £9.92 |
| 250 + | £1.924 | £9.62 |
| *price indicative | ||
- RS Stock No.:
- 161-2975
- Mfr. Part No.:
- TDA04H0SB1R
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
C&K’s series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. C&K DIP switches are available in surface mount, through-hole, right angle and vertical mounting options. Washable DIP Switches for Easier Processing.
Bifurcated contact for increased electrical reliability
Process sealed for surface mount soldering and washable processing
Hand-held electronic devices
Portable computer and electronic devices
Instrumentation and controls
Process sealed for surface mount soldering and washable processing
Hand-held electronic devices
Portable computer and electronic devices
Instrumentation and controls
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 4 |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Flush, Recessed, Slide |
| Contact Current Rating | 25 mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 24V dc |
| Dielectric Strength | 300V ac |
