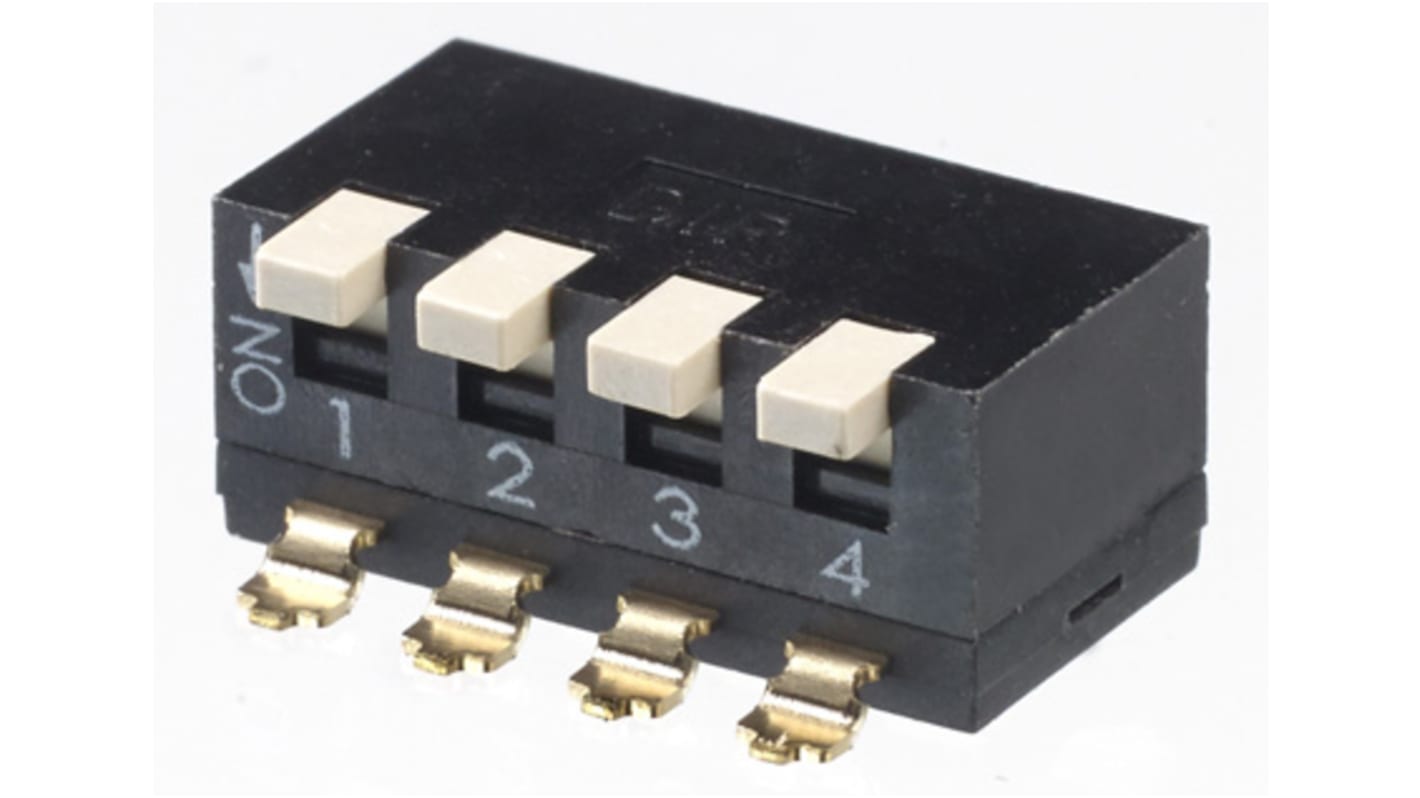

APEM 4 Way Surface Mount DIP Switch 4PST, Piano, Raised Actuator
- RS Stock No.:
- 122-2995
- Mfr. Part No.:
- IKP0403101
- Brand:
- APEM
Available to back order for despatch 28/10/2024
Added
Price Each (In a Tube of 40)
£1.228
(exc. VAT)
£1.474
(inc. VAT)
| Units | Per unit | Per Tube* |
| 40 - 40 | £1.228 | £49.12 |
| 80 - 80 | £1.198 | £47.92 |
| 120 - 120 | £1.167 | £46.68 |
| 160 - 160 | £1.136 | £45.44 |
| 200 + | £1.105 | £44.20 |
| *price indicative | ||
- RS Stock No.:
- 122-2995
- Mfr. Part No.:
- IKP0403101
- Brand:
- APEM
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem IKP Series SMT Mount DIP Switch, Raised Actuator
Apem IKP series of piano-style dual inline switches are offered in both surface mount & through board low profile options. The series offers both raised and recessed actuators to ensure compatibility with your application. The series also comes equipped with self-cleaning wiping contacts to minimise the need for maintainance. The IKP series are flexible and can be used in a range of environments, such as IR & vapor phase reflow soldering installations.
Features and Benefits
Flush & protruding actuation available.
Gold plated terminals.
Designed to withstand IR & vapor phase reflow soldering.
Self cleaning contacts.
Both even and odd pole numbers available.
Flush & protruding actuation available.
Gold plated terminals.
Designed to withstand IR & vapor phase reflow soldering.
Self cleaning contacts.
Both even and odd pole numbers available.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 4 |
| Mounting Type | Surface Mount |
| Contact Material | Gold Plated Copper |
| Contact Configuration | 4PST |
| Package Style | DIP |
| Actuator Type | Piano, Raised |
| Contact Current Rating | 25 mA |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24V dc |
| Dielectric Strength | 100V ac |
