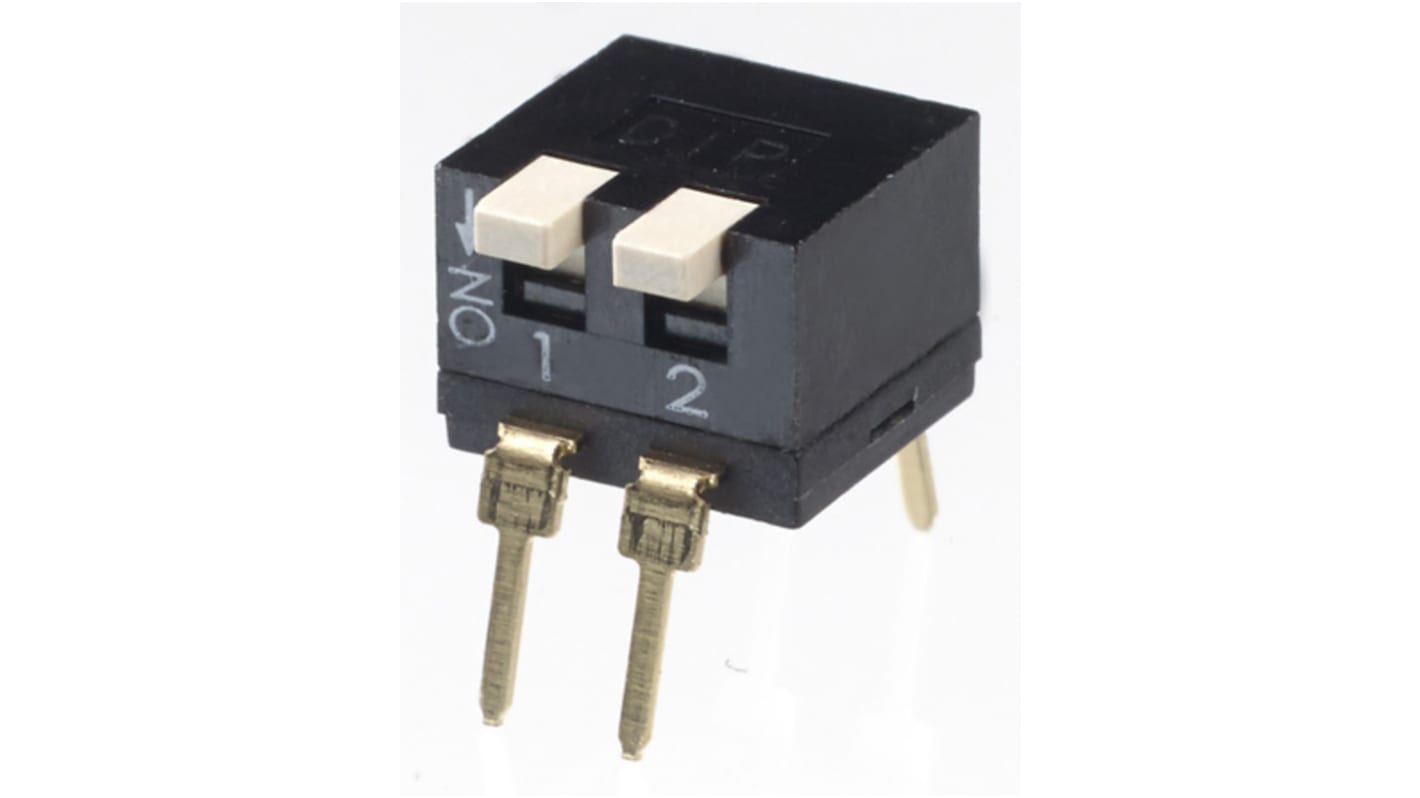

2 Way Through Hole DIP Switch DPST, Piano, Raised Actuator

  • RS Stock No. 122-2986
  • Mfr. Part No. IKP0200101
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Apem IKP Series Low Profile DIP Switch, Raised Actuator

Apem IKP series of piano-style dual inline switches are offered in both surface mount & through board low profile options. The series offers both raised and recessed actuators to ensure compatibility with your application. The series also comes equipped with self-cleaning wiping contacts to minimise the need for maintainance. The IKP series are flexible and can be used in a range of environments, such as IR & vapor phase reflow soldering installations.


Features and Benefits

Flush & protruding actuation available.
Gold plated terminals.
Designed to withstand IR & vapor phase reflow soldering.
Self cleaning contacts.
Both even and odd pole numbers available.

Specifications
Attribute Value
Contact Configuration DPST
Contact Current Rating 25 mA
Contact Material Gold Plated Copper
Number of Positions 2
Mounting Type Through Hole
Actuator Type Piano, Raised
Package Style DIP
Maximum Operating Temperature +85°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +85°C
Dielectric Strength 100V ac
Voltage Rating 24V dc
255 In stock - FREE next working day delivery available
Price Each (In a Bag of 5)
Was £1.29
£ 1.16
(exc. VAT)
£ 1.39
(inc. VAT)
Units
Per unit
Per Bag*
5 +
£1.16
£5.80
*price indicative
