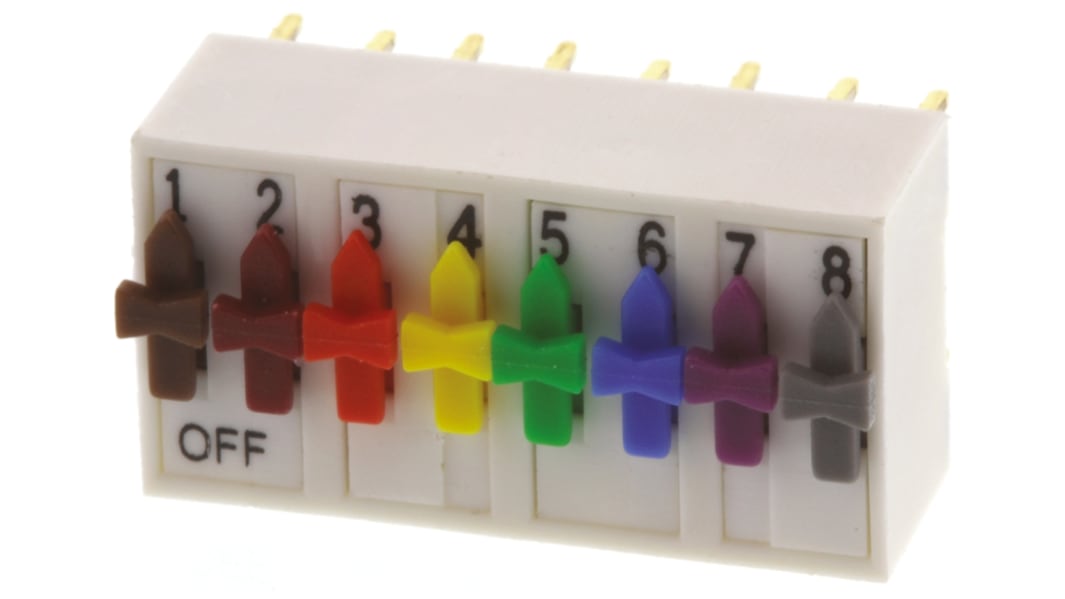

8 Way Through Hole DIP Switch SPST, Directing Switch Actuator

  • RS Stock No. 337-560
  • Mfr. Part No. ED57657
  • Brand ERG
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Lateral Operating Switches

Available in a choice of configurations
Changeover (SPDT) types have break-before-make contacts (pairs of pins along one side of the switch must be commoned to achieve a changeover action)
Suitable for dry circuit switching
Non switching rating: 5A @ 100Vac
Contact resistance: 10mΩ

Note

Unless stated otherwise, these switches are not suitable for immersion cleaning

//media.rs-online.com/t_line/L336668-01.gif
//media.rs-online.com/t_line/L337548-01.gif

Approvals

7777

Specifications
Attribute Value
Contact Configuration SPST
Contact Current Rating 1 A@ 100 V
Contact Material Nickel and gold plated
Number of Positions 8
Mounting Type Through Hole
Actuator Type Directing Switch
Package Style DIP
Mechanical Life 20000Operations
Maximum Operating Temperature +100°C
Minimum Operating Temperature -55°C
Available to back order for despatch 08/02/2021
Price Each
£ 5.27
(exc. VAT)
£ 6.32
(inc. VAT)
Units
Per unit
1 - 49
£5.27
50 - 99
£4.88
100 - 249
£4.53
250 +
£4.38
