- RS Stock No.:
- 913-1257
- Brand:
- RS PRO
- RS Stock No.:
- 913-1257
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

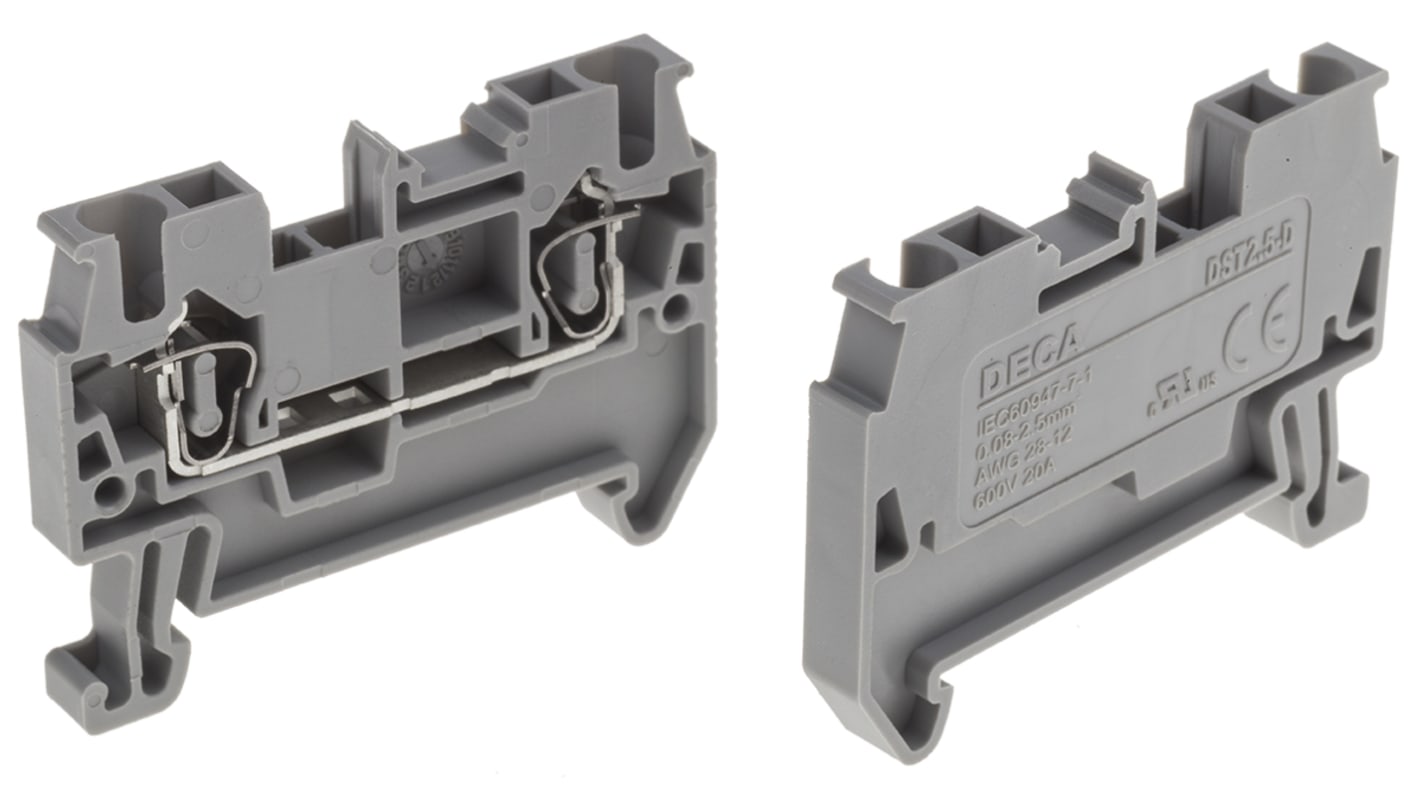

Spring Terminals
A range of spring feed through DIN Rail terminals with a proven tension spring connection system for the smallest cross sections ranging from 0.2mm² up to 16mm². This system provides safe and quick connections for solid and stranded wires, with or without wire-end ferrules. The earth terminals feature a PE foot contact that is snapped on, ensuring mechanical and electrical safety on both sides of the terminal without screws.
Specifications
Attribute | Value |
---|---|
Colour | Grey |
American Wire Gauge | 28 → 12AWG |
Cable CSA | 2.5mm² |
Current Rating | 20 A (CSA), 20 A (UL), 24 A (IEC) |
Voltage Rating | 800 V |
