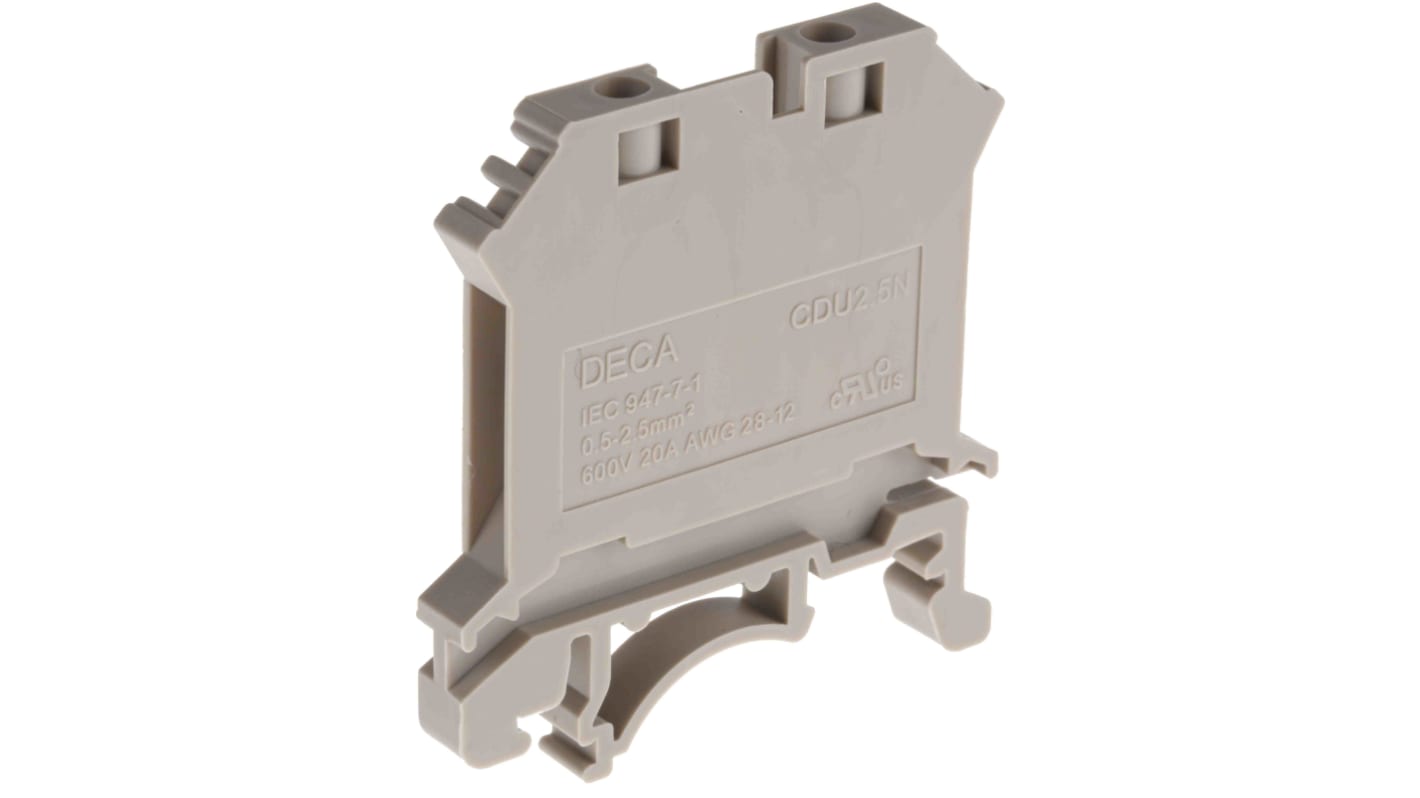

RS PRO, 800 V Din Rail Terminal, Screw Termination

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Mini Screw Clamp Terminal Blocks

Mini DIN rail mounted screw clamp terminal blocks
Suitable for a broad range of cross-section and wire types
Wires can be connected without any special preparations
Easy to handle and safe to connect
Excellent vibration resistance
High reliability and maintenance free
Very low contact resistant
Easy mounting and dismounting from DIN rail

Note

End plate (878-7544) is suitable for the following terminals:

878-7503
878-7506
878-7516
878-7538

Approvals

UL, CSA

Specifications
Attribute Value
Series CDU 2.5
Wire Size 28 → 12 AWG
Cable CSA 2.5mm²
Current Rating 20 (UL/CSA) A, 24 (IEC) A
Number of Levels Single
Termination Method Screw
Voltage Rating 800 V
3100 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£ 0.229
(exc. VAT)
£ 0.275
(inc. VAT)
Units
Per unit
Per Pack*
10 - 50
£0.229
£2.29
60 - 110
£0.217
£2.17
120 +
£0.208
£2.08
*price indicative
