RS PRO, 600 V Disconnect Terminal Block, Screw Termination

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

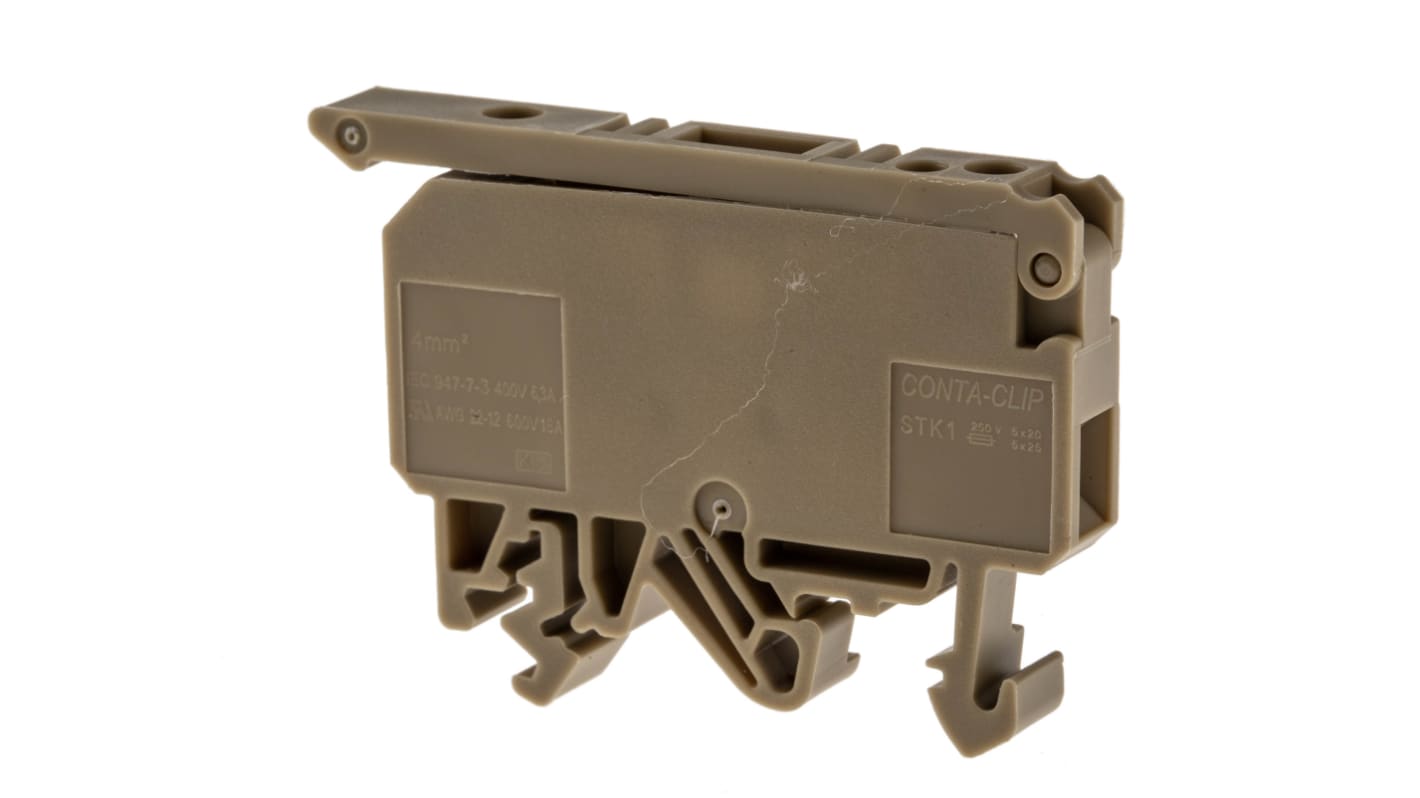

STK Series Fuse-Disconnect Terminals

The STK fuse-disconnect terminals feature a compact shape so they take up minimal space. The hinged lever is used to hold the fuse and locks into its open position.

Combi-foot snaps on to TS 35/TS 32 or mounting foot for the TS 15 rail
Connection cross-section up to 4 mm2
STK1 holds fuses (5 x 20/5 x 25)
Compact design
Can be used with solid link as a disconnect terminal

Specifications
Attribute Value
Series 2190.2
Wire Size 22 → 12 AWG
Cable CSA 4mm²
Colour Beige
Current Rating 6.3 (CSA) A, 6.3 (IEC) A, 16 (UL) A
Number of Levels 1
Termination Method Screw
Voltage Rating 600 V
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
4410 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£ 2.403
(exc. VAT)
£ 2.884
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£2.403
£24.03
*price indicative
