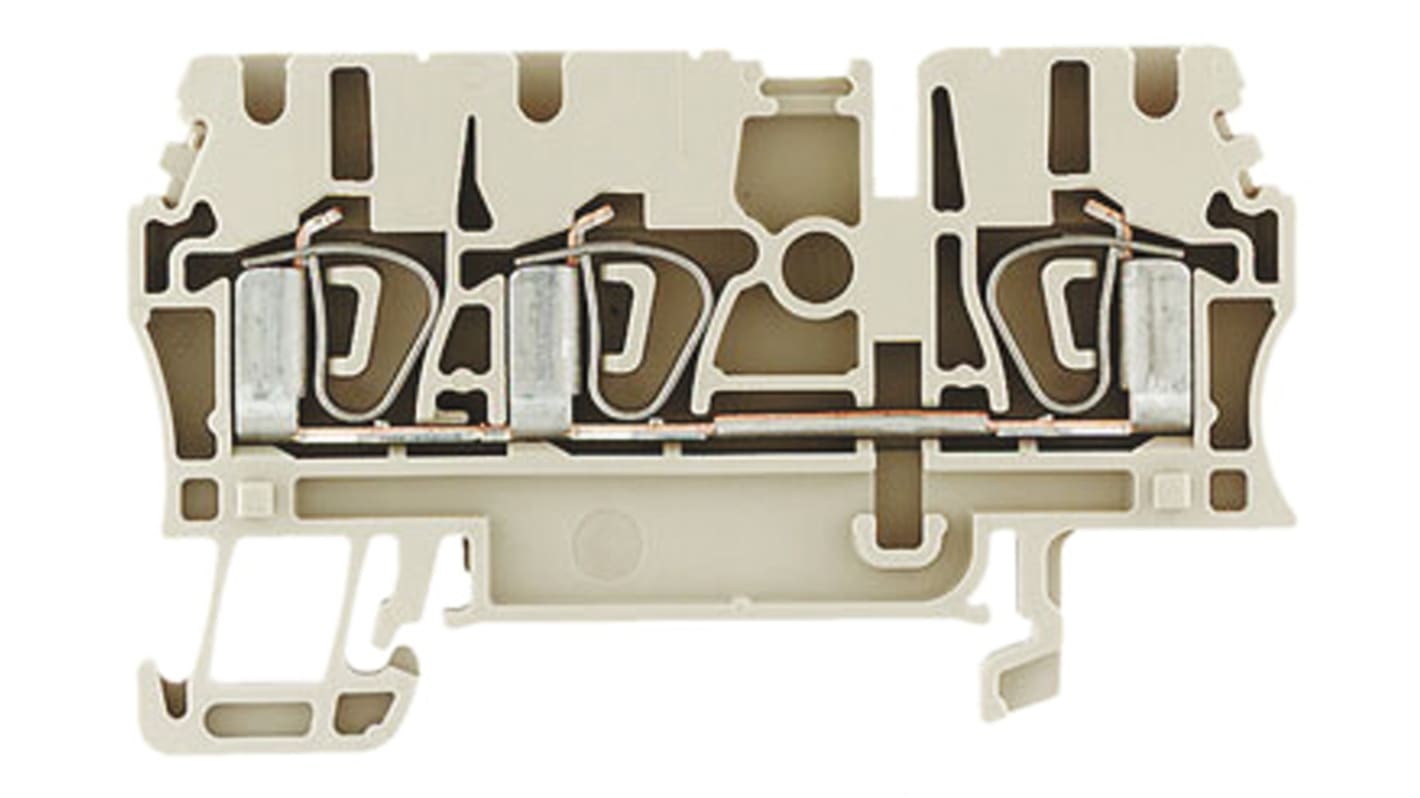

Weidmüller Z Series Beige Feed Through Terminal Block, 2.5mm², Single-Level, Clamp Termination
- RS Stock No.:
- 826-2947
- Mfr. Part No.:
- 1608540000
- Brand:
- Weidmuller
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 826-2947
- Mfr. Part No.:
- 1608540000
- Brand:
- Weidmuller
Technical Reference
Legislation and Compliance
Product Details
Weidmuller Feedthrough Terminal Blocks Z Series
Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Features and Benefits
• One, two, three and four tier available
• Tension clamp technology
• Available in different colours
Specifications
Attribute | Value |
|---|---|
| Colour | Beige |
| Number of Levels | Single |
| American Wire Gauge | 30 → 12AWG |
| Series | Z |
| Termination Method | Clamp |
| Cable CSA | 2.5mm² |
| Voltage Rating | 800 V |
| Current Rating | 24A |
| Pitch | 5.1mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | 120°C |
