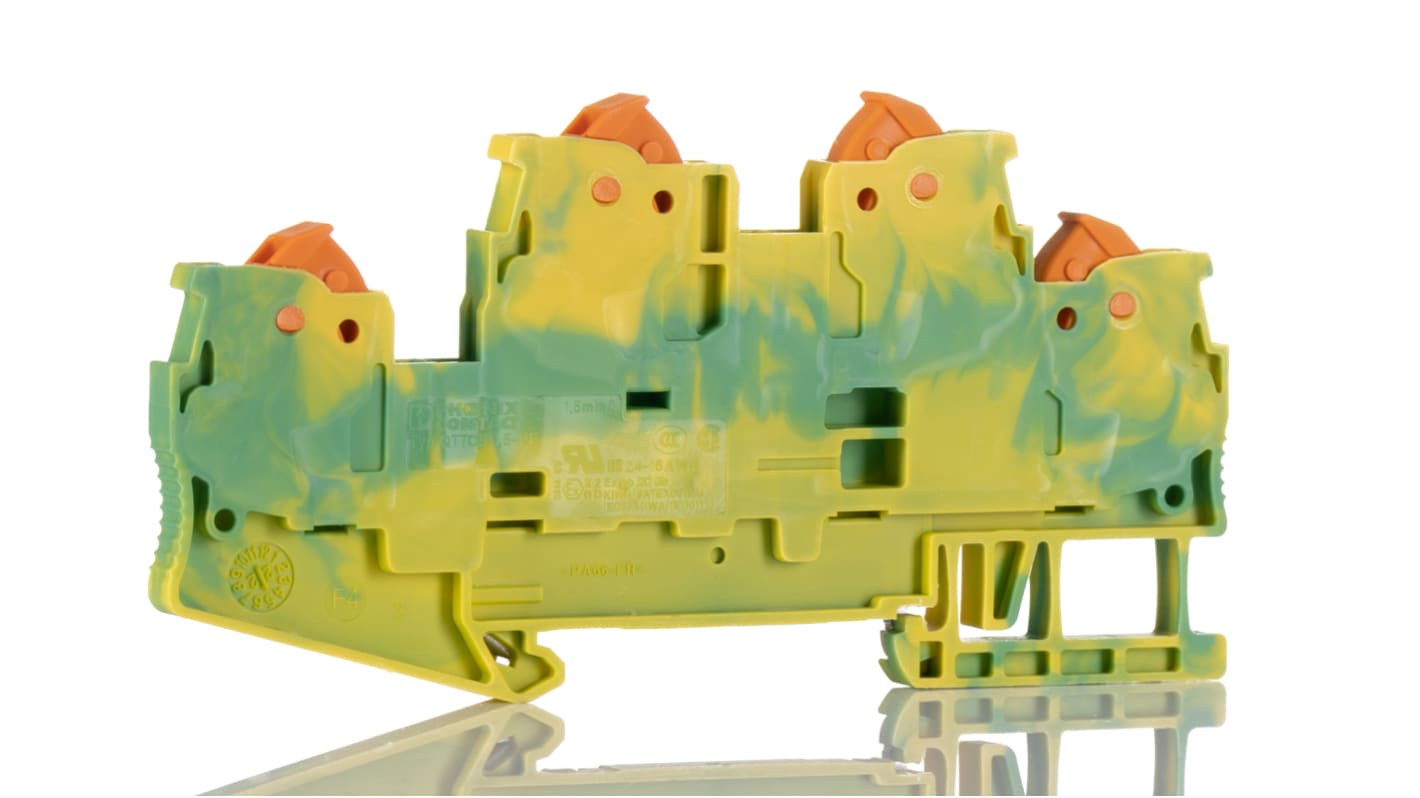

Phoenix Contact, QTTCB 1.5-PE, 800 V Double Level Terminal Block, Quick Connect Termination

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): DE
Product Details

QT Range

Quick connecting IDC-Connection
Feed-through terminal blocks
Knife disconnect terminal block with quick connection, cross section enable you to rapidly localise system faults
Endplates to finish off a row of multi connections
Separators for optical and electrical group separation

Specifications
Attribute Value
Series QTTCB 1.5-PE
Wire Size 24 → 16 AWG
Cable CSA 0.25 → 1.5mm²
Colour Green/Yellow
Current Rating 27.5A
Number of Levels Double
Termination Method Quick Connect
Voltage Rating 800 V
10 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 4.418
(exc. VAT)
£ 5.302
(inc. VAT)
Units
Per unit
Per Pack*
5 - 25
£4.418
£22.09
30 - 55
£4.198
£20.99
60 +
£4.02
£20.10
*price indicative
