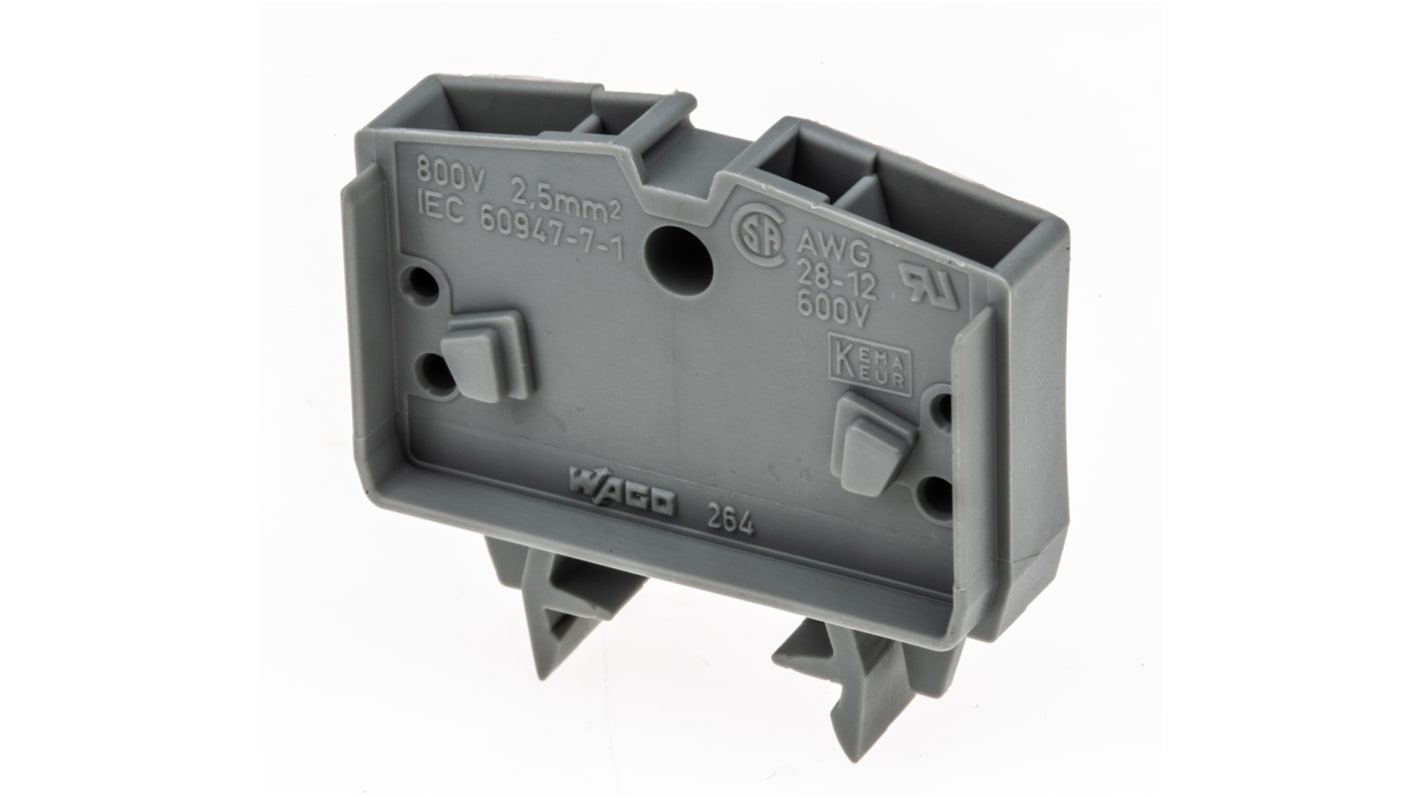

Wago, 264, 800 V Din Rail Terminal

  • RS Stock No. 484-3889
  • Mfr. Part No. 264-701
  • Brand Wago
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

264 Miniature Series

Front-entry miniature screwless DIN Rail terminals are designed for snap-mounting onto symmetrical DIN Rail 467-349. The terminals have a clamp design that ensures the clamping force automatically adjusts to the size of the connector. Thus resulting in a corrosion-free contact area, and compensates for any deformation of the conductor due to cold flow or settling of strands.

Features and Benefits

• Available in 3 colours
• Moulded in modified nylon 6.6 (free from halogen)
• Self-extinguishing according to UL94-V2
• Temperature stabilised allowing continuous operation at 105°C (170°C short term) according to IEC216 part 1 and 2
• Terminals interlock and are designed to prevent reverse mounting
• 24.5 mm Depth
• Rated at 600 V (UL)
• The green/yellow earth terminal blocks connect directly to the mounting rail

Note

To ensure a high level of safety and security it is essential that only 1 conductor is inserted in each terminal. However, when jumper bars are used to common terminals a conductor of not more than 1.5mm² may be inserted between the jumper and the outer edge of the terminal block

Approvals

UL recognised component, CSA certified, DEMKO (except 264-727), KEMA, SEMKO.

//media.rs-online.com/t_line/L460418-02.gif
Specifications
Attribute Value
Series 264
Wire Size 28 → 12 AWG
Cable CSA 0.08 → 2.5mm²
Colour Grey
Current Rating 20A
Number of Levels Single
Voltage Rating 800 V
Pitch 6mm
2560 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£ 0.546
(exc. VAT)
£ 0.655
(inc. VAT)
Units
Per unit
Per Pack*
10 - 50
£0.546
£5.46
60 - 110
£0.518
£5.18
120 +
£0.496
£4.96
*price indicative
