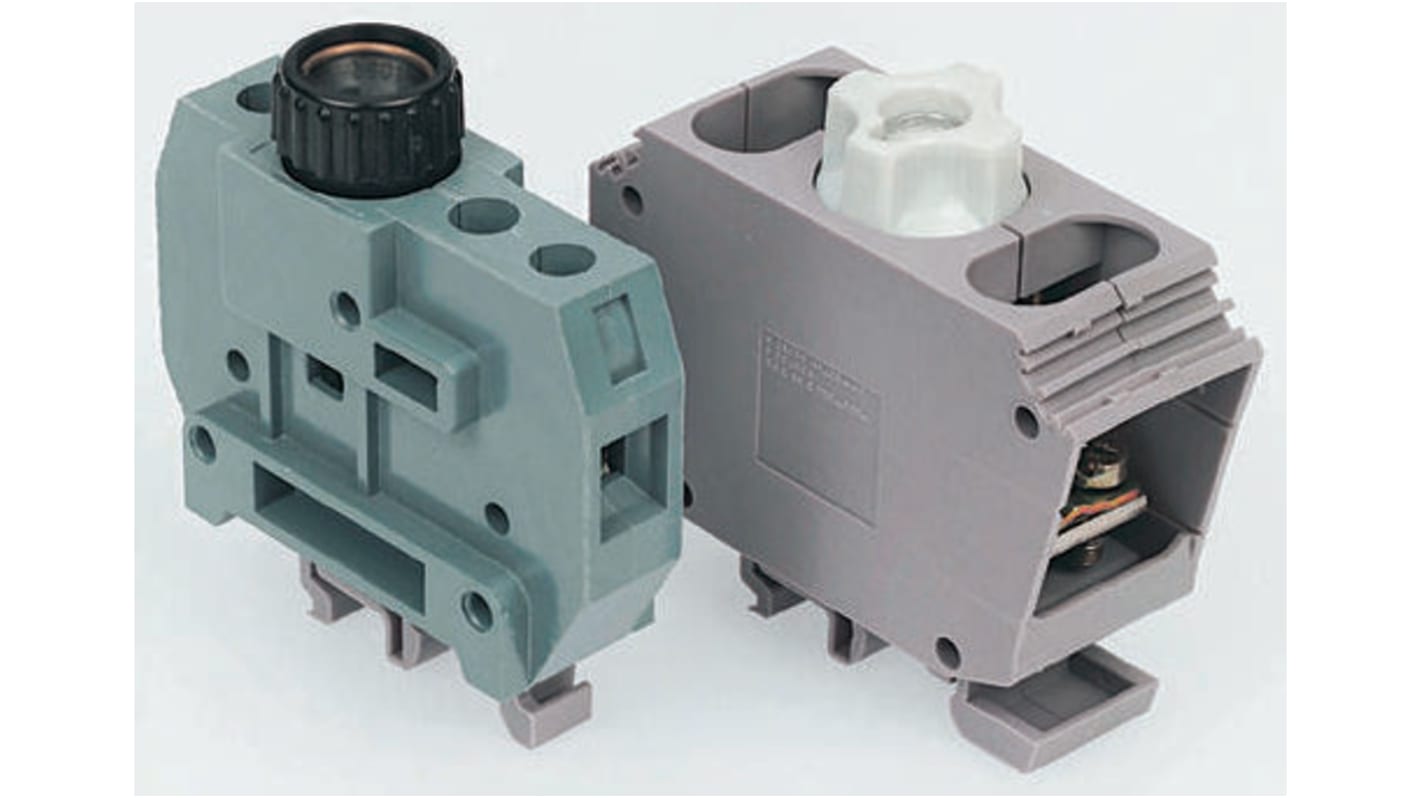

Entrelec, MB, 750 V Fused DIN Rail Terminal, Screw Clamp Termination

  • RS Stock No. 413-2375
  • Mfr. Part No. 1SNA116298R2700
  • Brand Entrelec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Fused (Bottle Type)

Fused terminal blocks accepting European bottle fuses type D01 (413-2375) and D02 (413-2381)
Suitable for mounting on both symmetric (deep top hat) and asymmetric ("G") type DIN rails
Voltage rating 750 V

Approvals

7777

Specifications
Attribute Value
Series MB
Wire Size 6 AWG
Cable CSA 10 (stranded) mm², 16 (solid) mm²
Colour Black, Grey
Current Rating 32A
Termination Method Screw Clamp
Voltage Rating 750 V
Pitch 24mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +110°C
6 In stock - FREE next working day delivery available
Price Each
Was £9.08
£ 3.91
(exc. VAT)
£ 4.69
(inc. VAT)
Units
Per unit
1 +
£3.91
