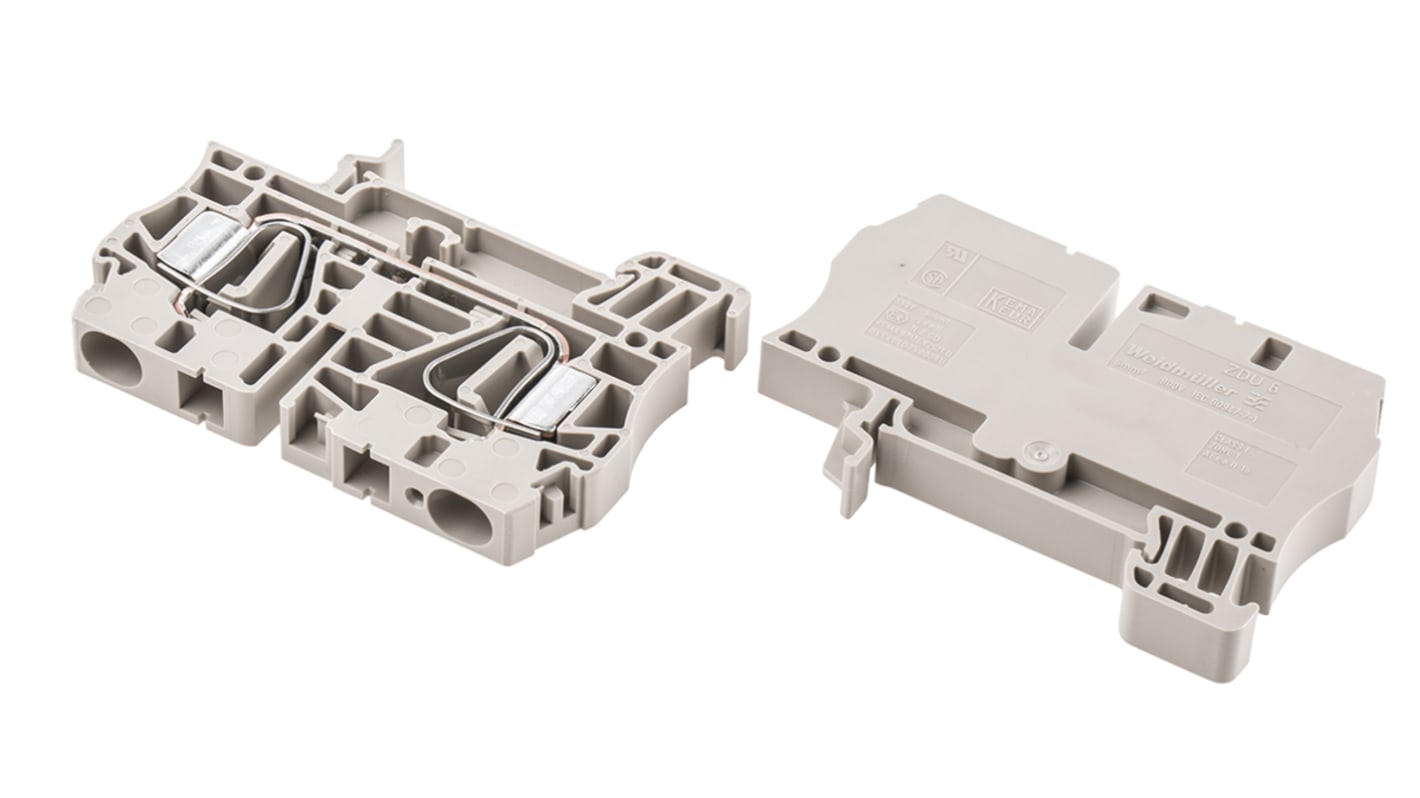

Weidmüller ZDU Series Brown Feed Through Terminal Block, 6mm², Single-Level, Clamp Termination
- RS Stock No.:
- 225-9951
- Mfr. Part No.:
- 1608620000
- Brand:
- Weidmüller
380 In stock - FREE next working day delivery available
30 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£1.184
(exc. VAT)
£1.421
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 25 | £1.184 | £5.92 |
| 30 - 55 | £1.124 | £5.62 |
| 60 + | £1.074 | £5.37 |
| *price indicative | ||
- RS Stock No.:
- 225-9951
- Mfr. Part No.:
- 1608620000
- Brand:
- Weidmüller
Legislation and Compliance
- COO (Country of Origin):
- RO
Product Details
Standard Terminals
Screwless Z series DIN mounting terminals offer a top entry system that saves time and space. Quick and easy installation as the conductor is inserted using the clamping system. The top entry system means that the conductor entry and clamp actuation access is from the same direction.
Features and Benefits
• Tension clamp connection
• Continuous temperature rating of 120°C- self-extinguishing to UL94V-0
• Available in variety of sizes
• Ideal when space is confined
• Continuous temperature rating of 120°C- self-extinguishing to UL94V-0
• Available in variety of sizes
• Ideal when space is confined
Note
The ZDU 10 and ZDU 16 terminals only have CSA and UL Approvals.
Approvals
CSA certified, UL listed, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI
Approvals
1-7
Contents
ZDU 6 terminals
Specifications
Attribute | Value |
|---|---|
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 22 → 8AWG |
| Series | ZDU |
| Termination Method | Clamp |
| Cable CSA | 6mm² |
| Current Rating | 57A |
| Voltage Rating | 800 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
