Entrelec, M, 600 V Fused DIN Rail Terminal, Screw Termination

  • RS Stock No. 210-4609
  • Mfr. Part No. 1SNA115661R2100
  • Brand Entrelec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

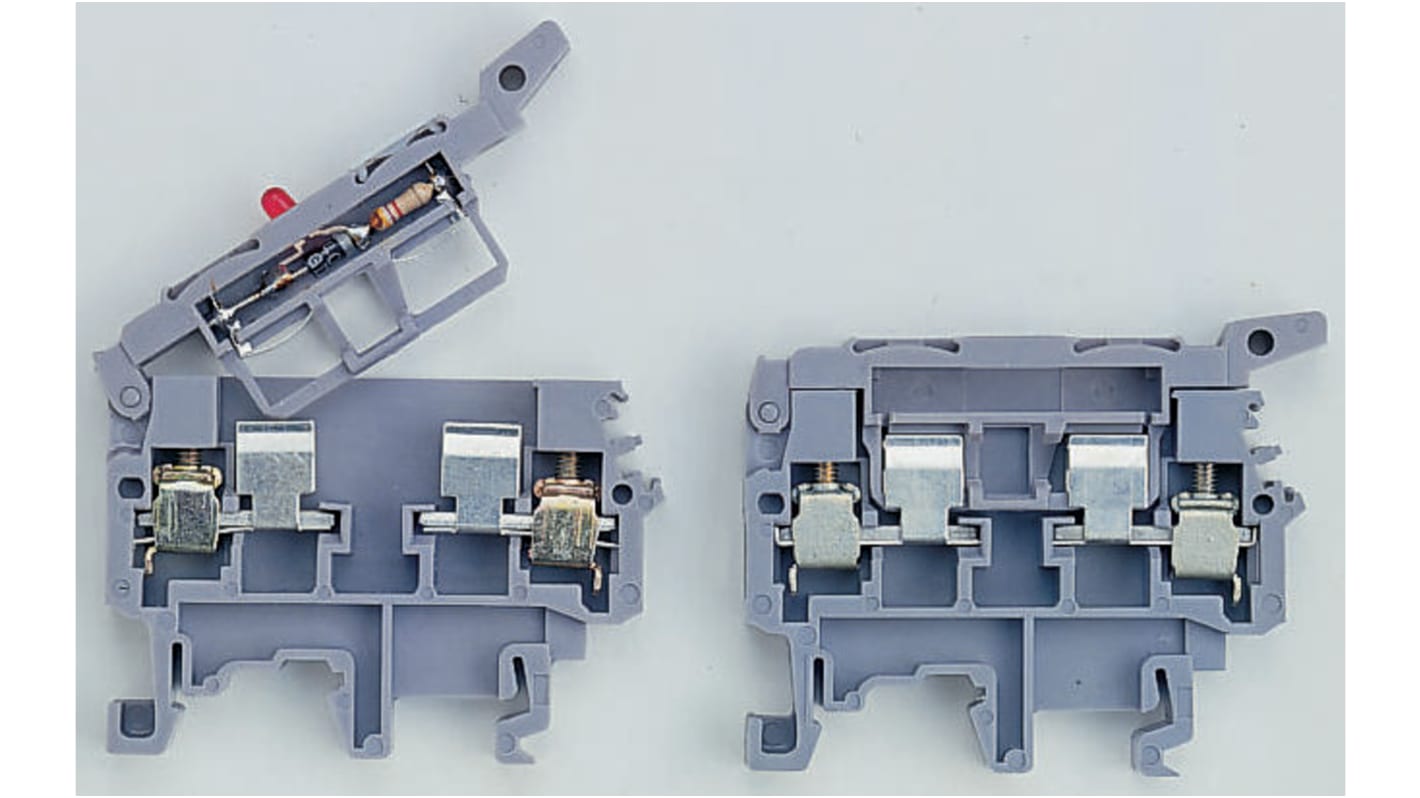

Fused Lever Action

ABB series of Fused terminals with a lever action fuse carrier, the standard product accepts both 20´5mm and 25´5mm fuses whilst terminals with ’fuse failed’ indication are suited to 20´5mm fuse links only.
Fuse failed indication terminals are available either a LED suited to 24V dc, or with a neon suited to 110-220V usage.

Approvals

UL listed, CSA certified.

Approvals

1, 8

Specifications
Attribute Value
Series M
Wire Size 12 AWG, 14 (with ferrule) AWG
Fused Yes
Cable CSA 4 (stranded) mm², 6 (solid) mm²
Colour Grey
Current Rating 6.3A
Termination Method Screw
Voltage Rating 600 V
Pitch 8mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +110°C
110 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 7.354
(exc. VAT)
£ 8.825
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£7.354
£36.77
*price indicative
