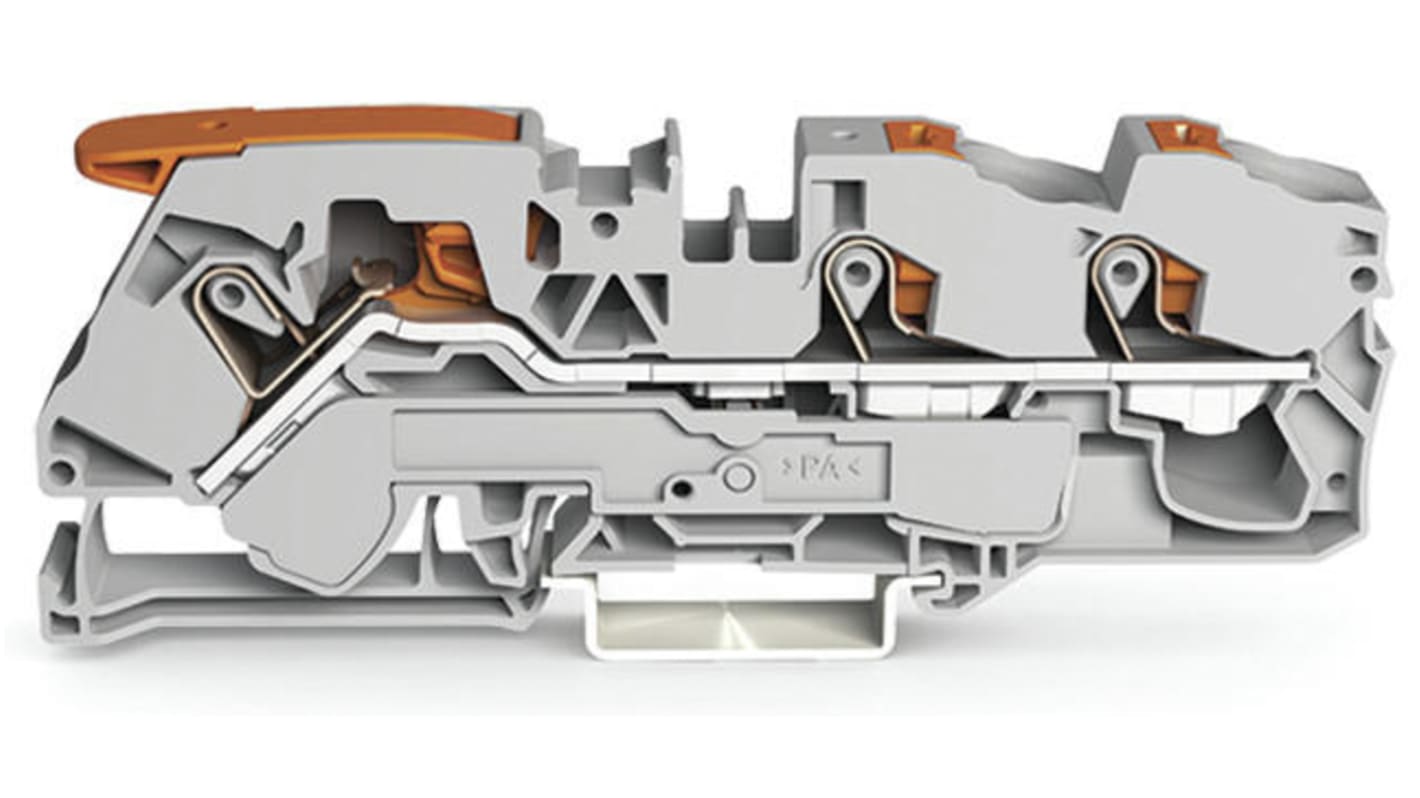

Wago TOPJOB S, 2116 Series Grey Feed Through Terminal Block, 16mm², Single-Level, Push-In Cage Clamp Termination, ATEX,
- RS Stock No.:
- 184-9804
- Mfr. Part No.:
- 2116-5301
- Brand:
- Wago
- RS Stock No.:
- 184-9804
- Mfr. Part No.:
- 2116-5301
- Brand:
- Wago
Technical Reference
Legislation and Compliance
Product Details
3-Conductor through terminal block, with lever and push-button, 16 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 16,00 mm², grey
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Single |
Series | TOPJOB S, 2116 |
American Wire Gauge | 20 → 4AWG |
Termination Method | Push-In Cage Clamp |
Cable CSA | 16mm² |
Fused | No |
Current Rating | 76A |
Voltage Rating | 800 V |
Pitch | 12mm |
Minimum Operating Temperature | -35°C |
Maximum Operating Temperature | +105°C |
Hazardous Area Certification | ATEX, IECEx |
Standards Met | CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR |
