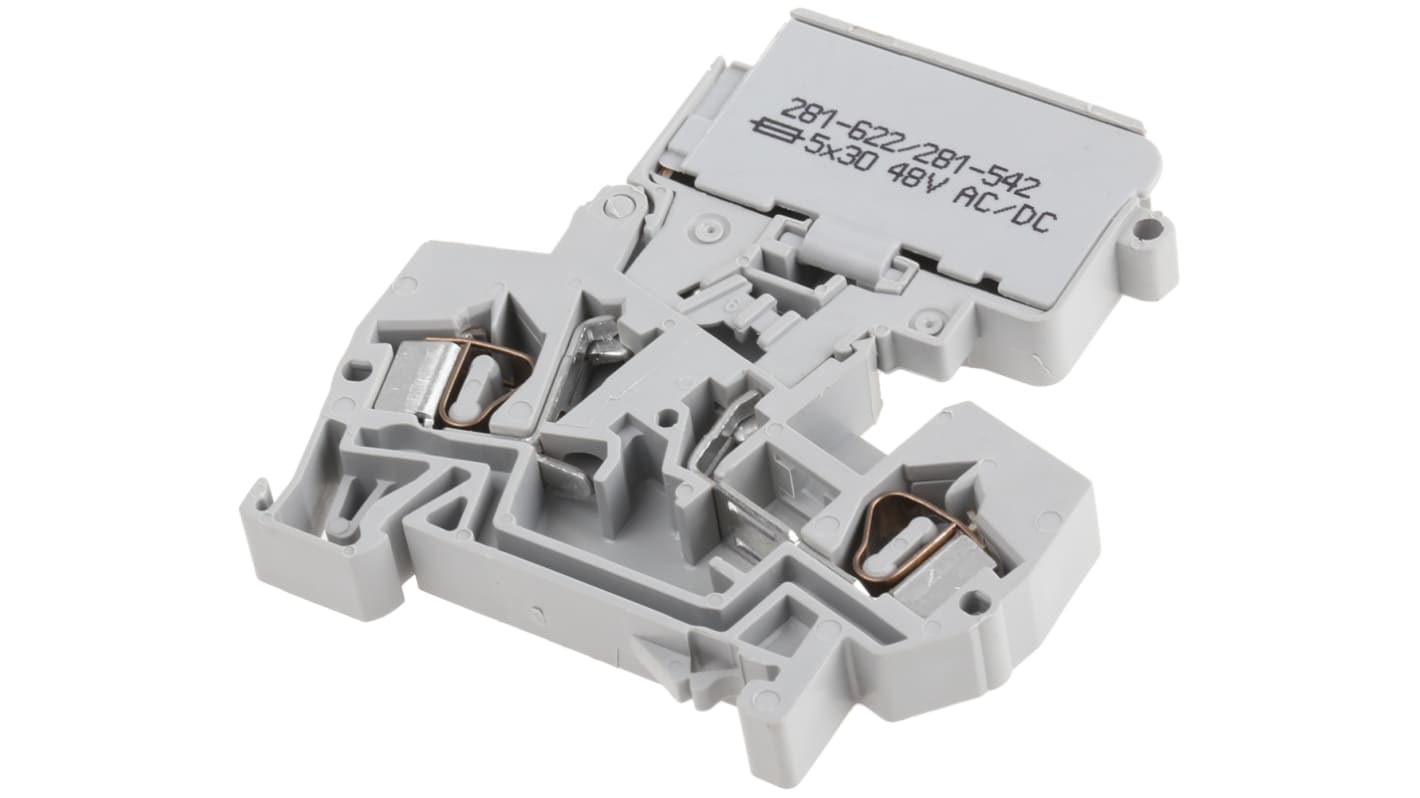

Wago, 281, 800 V ac Fused DIN Rail Terminal, Crimp Termination

  • RS Stock No. 167-5841
  • Mfr. Part No. 281-622/281-542
  • Brand Wago
Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): DE
Product Details

Fuse Terminals

DIN Rail fused terminals are produced in plastic housing, fitted with a DIN mounting system to allow for quick assembly. It is possible for assembly of several terminals by simply interconnecting the locking profile and the end plate.

Features and Benefits

• Fuse holders fitted for 5 x 20, 5 x 25 and 5 x 30 mm cartridges
• Quick connection using Spring Cage connections
• Fault indicator by LED or neon depending on the voltage
• High resistance to vibrations and impact
• Integrated test terminal

DIN Standard Fuse Holders

European style surface mount 3 pole fuse load switches/disconnectors for use with NH type industrial HRC fuses.

Specifications
Attribute Value
Series 281
Wire Size 28 → 12 AWG
Colour Grey
Current Rating 10A
Termination Method Crimp
Voltage Rating 800 V ac
Pitch 8mm
11 In stock - FREE next working day delivery available
Price Each
£ 13.96
(exc. VAT)
£ 16.75
(inc. VAT)
Units
Per unit
1 - 14
£13.96
15 - 49
£13.85
50 - 99
£11.83
100 - 249
£11.58
250 +
£11.36
