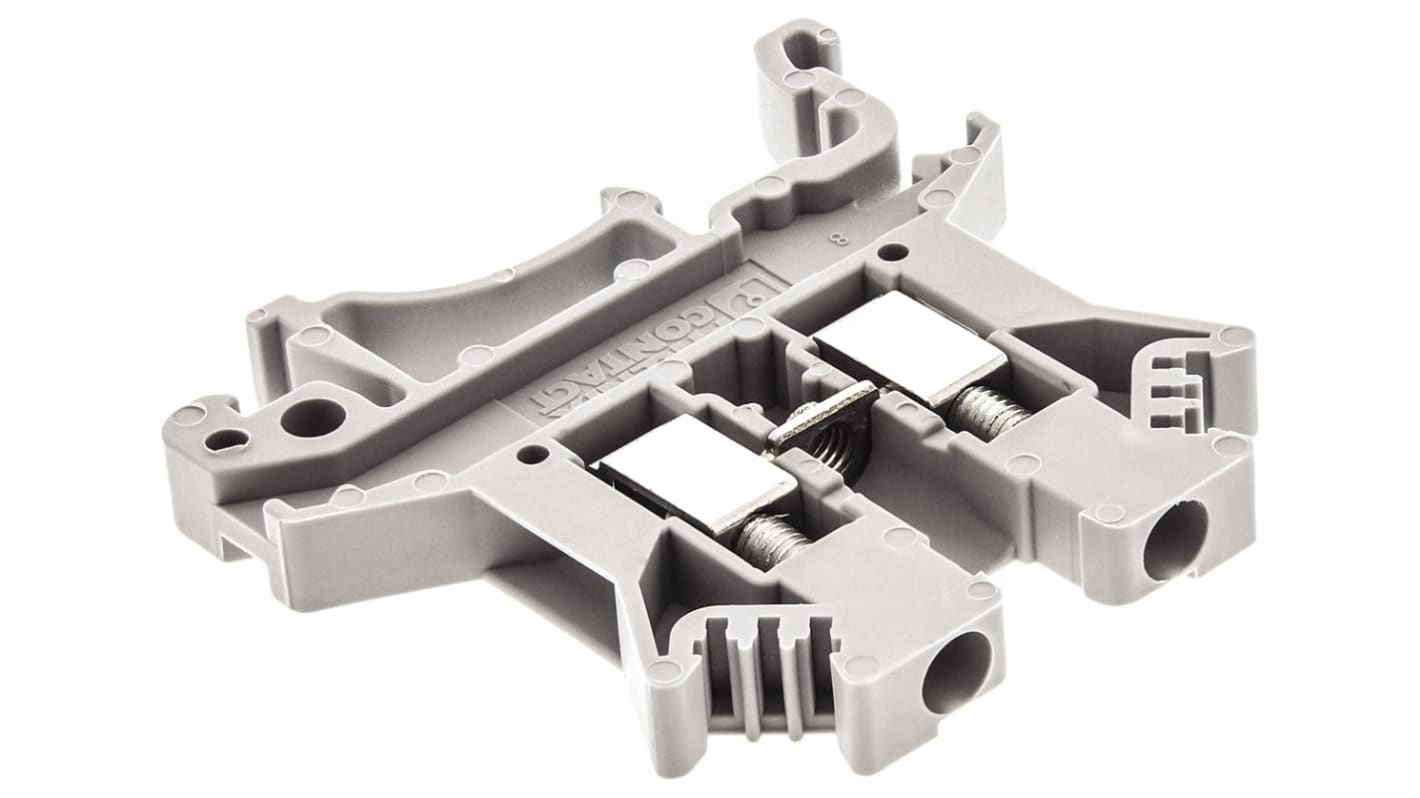

Phoenix Contact UK 2.5 N Series Grey DIN Rail Terminal Block, 0.2 → 2.5mm², Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 101-2751
- Mfr. Part No.:
- 3003347
- Brand:
- Phoenix Contact
590 In stock - FREE next working day delivery available
2060 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.90
(exc. VAT)
£1.08
(inc. VAT)
Units | Per unit | Per Pack* |
10 + | £0.90 | £9.00 |
*price indicative |
- RS Stock No.:
- 101-2751
- Mfr. Part No.:
- 3003347
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Phoenix Contact UK Series Terminal Blocks
Phoenix Contact Feed-Through Terminal Block, 24A, 800V AC/DC - UK 2.5 N - 3003347
Easily build an electrical circuit in an industrial control cabinet with this feed-through terminal block from Phoenix Contact. Its screw terminals quickly connect electrical inputs and outputs while providing protection against short circuits and current surges.
The unit features a robust polyamide housing that's resistant to corrosion for improved longevity. It also provides insulation to protect operators against electric shocks. As it accepts wires across a broad diameter range of 24 to 12AWG (American Wire Gauge), the block is compatible with a wide variety of conductors.
You can safely use this feed-through terminal block in areas where explosive atmospheres or gases may be present and it has a wide operating temperature range from -60°C to +105°C. That makes it a reliable choice for the chemical and petrochemical industries.
The unit features a robust polyamide housing that's resistant to corrosion for improved longevity. It also provides insulation to protect operators against electric shocks. As it accepts wires across a broad diameter range of 24 to 12AWG (American Wire Gauge), the block is compatible with a wide variety of conductors.
You can safely use this feed-through terminal block in areas where explosive atmospheres or gases may be present and it has a wide operating temperature range from -60°C to +105°C. That makes it a reliable choice for the chemical and petrochemical industries.
Compact dimensions of 42.5 (L) x 42 (H) x 5.2mm (W) take up minimal space in your setup
Universal foot that easily clips onto a DIN rail
Resistant to temperature rises for improved reliability in a wide range of operating conditions
Meets IEC/EN 60079-7 (International Electrotechnical Commission/European Norm) requirements for the design, construction, testing and marking of electrical equipment
Universal foot that easily clips onto a DIN rail
Resistant to temperature rises for improved reliability in a wide range of operating conditions
Meets IEC/EN 60079-7 (International Electrotechnical Commission/European Norm) requirements for the design, construction, testing and marking of electrical equipment
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Single |
American Wire Gauge | 24 → 12AWG |
Series | UK 2.5 N |
Termination Method | Screw |
Cable CSA | 0.2 → 2.5mm² |
Voltage Rating | 800 V |
Current Rating | 24A |
Hazardous Area Certification | ATEX |
Standards Met | CSA |
Model Number | UK 2,5 N |
