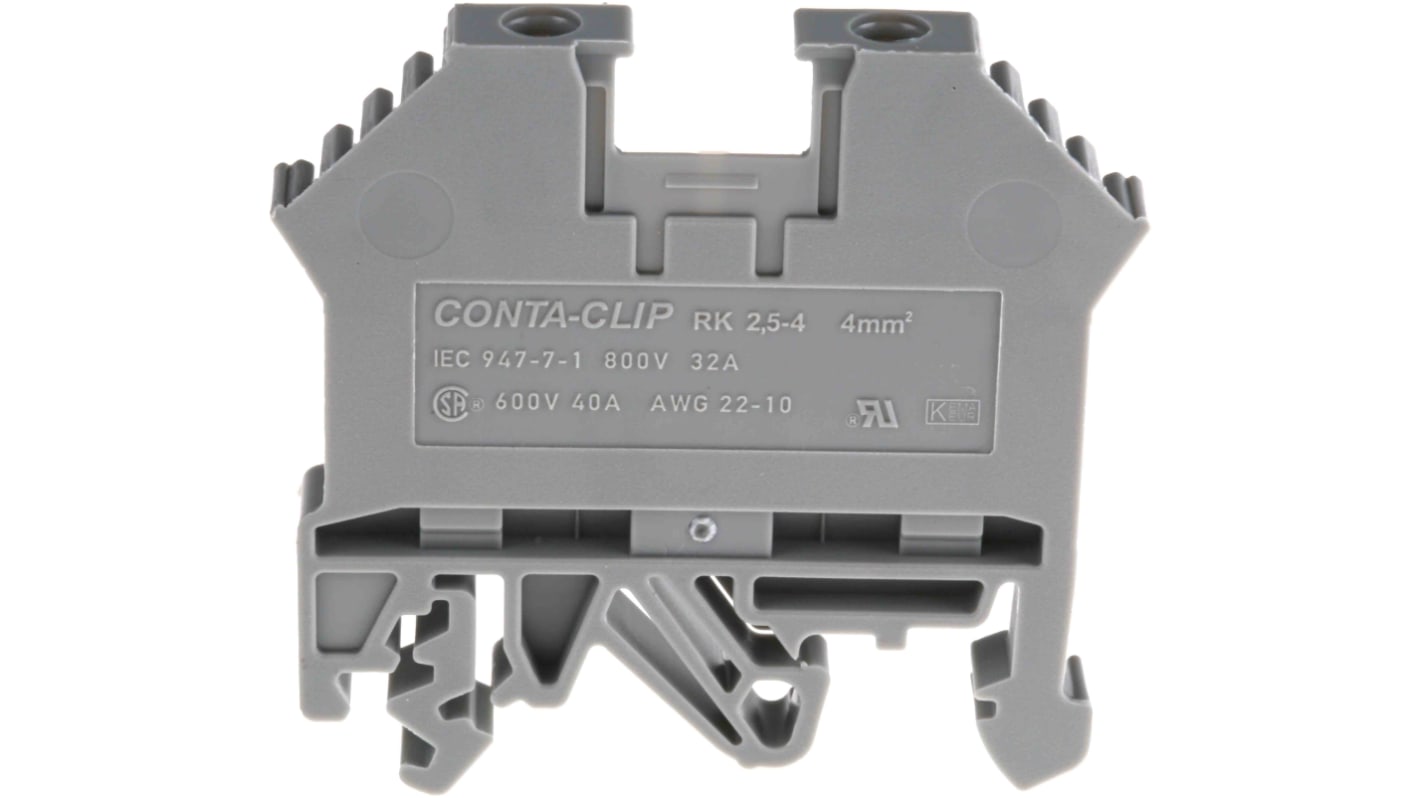

RS PRO, 800 V Standard Din Rail Terminal

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Coloured Terminals

Identify signals or voltages easilyTerminal colours match incoming cables, reducing wiring errorThree phase systems are always wired consistently

An additional selection of 2.5 and 4mm² terminals in useful colours including the newphase colours black, brown and grey, as well as white, orange, yellow and red

Approvals

UL, CSA, NEMKO, GOST

Approvals

UL, CSA

Specifications
Attribute Value
Wire Size 0.2 → 4 mm²
Cable CSA 0.2 → 4mm²
Colour Grey
Current Rating 32A
Number of Levels Single
Voltage Rating 800 V
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
10310 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£ 0.469
(exc. VAT)
£ 0.563
(inc. VAT)
Units
Per unit
Per Pack*
10 - 50
£0.469
£4.69
60 - 110
£0.445
£4.45
120 +
£0.427
£4.27
*price indicative
