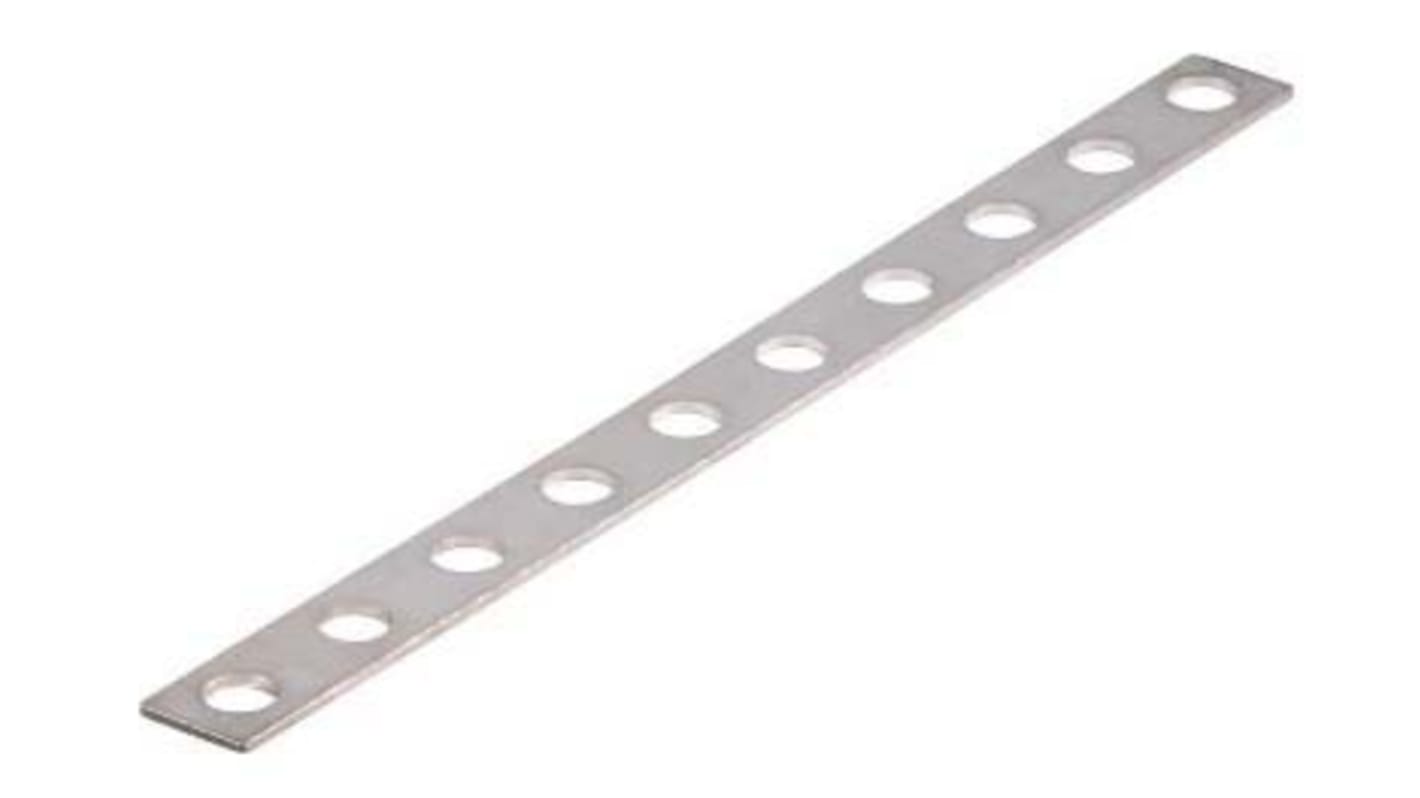

ABB Jumper Bar for Use with HD16/14.FF5.21 Stud Terminal Block, HD16/14.FF5.21.3 Stud Terminal Block
- RS Stock No.:
- 136-3891
- Mfr. Part No.:
- 1SNA173452R2200
- Brand:
- ABB
Available to back order for despatch 02/08/2024
Added
Price Each (In a Pack of 5)
£0.766
(exc. VAT)
£0.919
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £0.766 | £3.83 |
| 25 - 45 | £0.728 | £3.64 |
| 50 - 120 | £0.688 | £3.44 |
| 125 - 245 | £0.65 | £3.25 |
| 250 + | £0.612 | £3.06 |
| *price indicative | ||
- RS Stock No.:
- 136-3891
- Mfr. Part No.:
- 1SNA173452R2200
- Brand:
- ABB
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Not assembled screw jumpers bar, - Allows connection between consecutive blocks, - Perforated jumper bar without captive screw and washer, - The perforated jumper bar must be fitted under the washer and the nut of each block.
2 stud terminals M5 x 19.5 mm 0.768 in,
Equipment: self locking nut + spring washer + washer,
18 mm 0.709 in spacing adding SCH6 or INH3,
Two jumpering options: 14 mm 0.551 in spacing with BJH14 and 18 mm 0.709 in spacing (adding INH3)
with BJH18,
NF F 61-017 designation: BE0018-FF5 (1SNA295012R1700 + SCH6 or INH3).
Equipment: self locking nut + spring washer + washer,
18 mm 0.709 in spacing adding SCH6 or INH3,
Two jumpering options: 14 mm 0.551 in spacing with BJH14 and 18 mm 0.709 in spacing (adding INH3)
with BJH18,
NF F 61-017 designation: BE0018-FF5 (1SNA295012R1700 + SCH6 or INH3).
Specifications
Attribute | Value |
|---|---|
| Accessory Type | Jumper Bar |
| For Use With | HD16/14.FF5.21 Stud Terminal Block, HD16/14.FF5.21.3 Stud Terminal Block |
