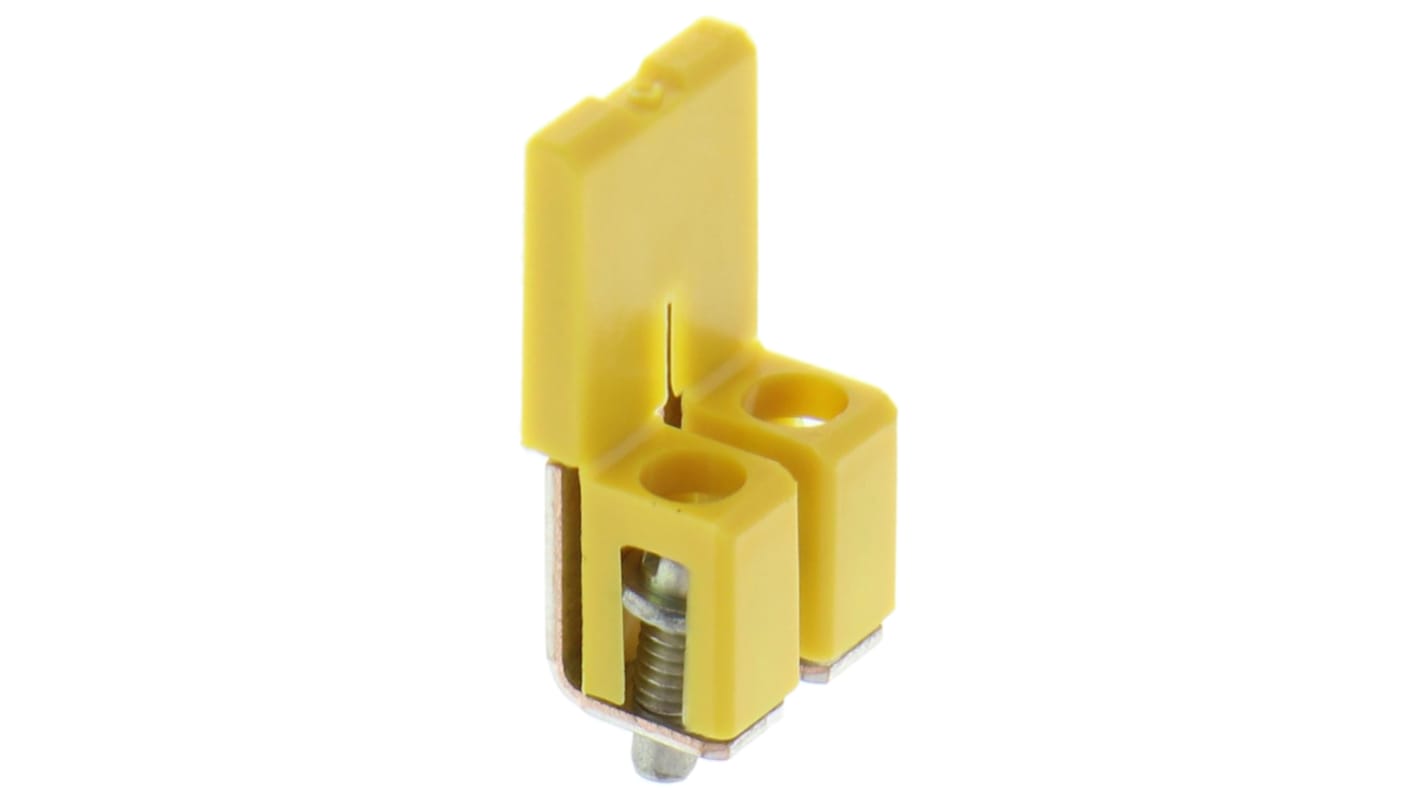

Weidmuller, WQV 2-Pole Cross Connector, 2-Pole Jumper Bar for Terminal Block

  • RS Stock No. 202-574
  • Mfr. Part No. 1053660000
  • Brand Weidmuller
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RO
Product Details

’W’ Series Terminal Blocks

One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.

Features and Benefits:

Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals

Product Application Information

Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.

A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Approvals

8888

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Specifications
Attribute Value
Accessory Type 2-Pole Cross Connector, 2-Pole Jumper Bar
Series WQV
For Use With Terminal Block
106 In stock - FREE next working day delivery available
166 available from Europe for delivery within 1 working day(s)
Price 1 Bag of 10
£ 7.43
(exc. VAT)
£ 8.92
(inc. VAT)
Bag(s)
Per Bag
Per unit*
1 +
£7.43
£0.743
*price indicative
