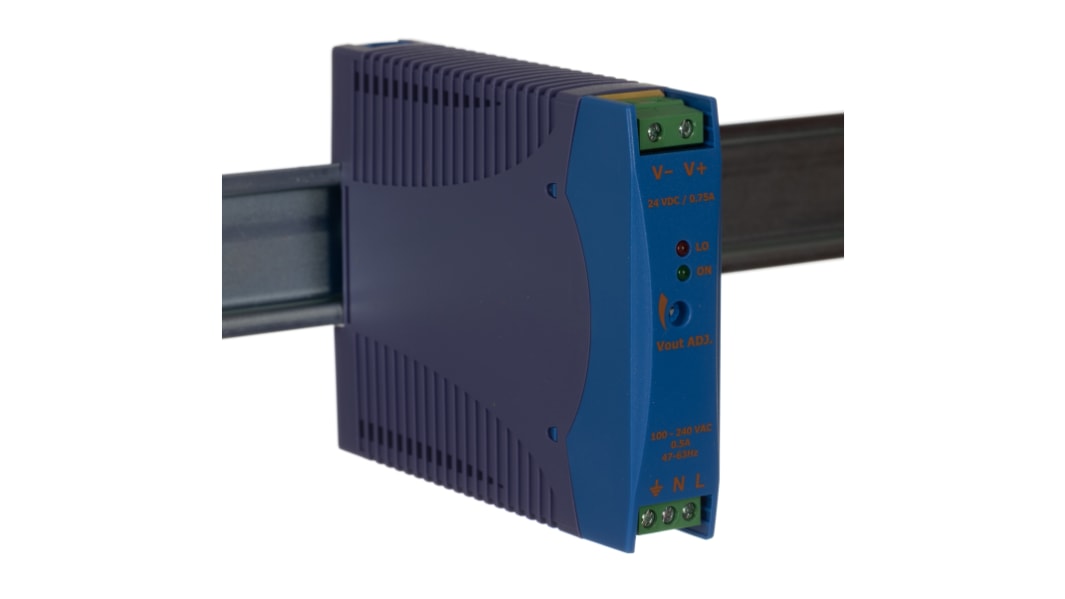

Chinfa, DRA18 DIN Rail Power Supply, 24V dc Output Voltage, 750mA Output Current

  • RS Stock No. 896-2230
  • Mfr. Part No. DRA18-24A
  • Brand Chinfa
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

DRAN & DRA PSU's Series

DIN rail power supplies for industrial control automation with universal input, short circuit protection and internal input filter

Universal mains input & 90 - 375Vdc, 90 - 264Vac
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty

Approvals

UL / cUL / TUV / CE

Switch Mode - Chinfa Electronics

Specifications
Attribute Value
AC or DC Input Voltage Ac
AC or DC Output Voltage Dc
Input Voltage 90 → 264V ac
Output Voltage 24 V dc
Output Current 750 mA
Power Rating 18W
Number of Outputs 1
Electrical Phase 1
Height 90mm
Width 22.5mm
MTBF 764000h
Series DRA18
Depth 114mm
Mounting Type DIN Rail Mount
Maximum Temperature +71°C
Ripple And Noise 50mV
Special Features Internal Input Filter
Minimum Temperature -20°C
71 In stock for FREE next working day delivery
Price Each
£ 26.37
(exc. VAT)
£ 31.64
(inc. VAT)
Units
Per unit
1 +
£26.37
