- RS Stock No.:
- 753-1980
- Mfr. Part No.:
- ML60.241
- Brand:
- PULS
30 In stock - FREE next working day delivery available
146 available from Europe for delivery within 1 working day(s).
Added
Price Each
£71.14
(exc. VAT)
£85.37
(inc. VAT)
Units | Per unit |
1 - 4 | £71.14 |
5 + | £67.50 |
- RS Stock No.:
- 753-1980
- Mfr. Part No.:
- ML60.241
- Brand:
- PULS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

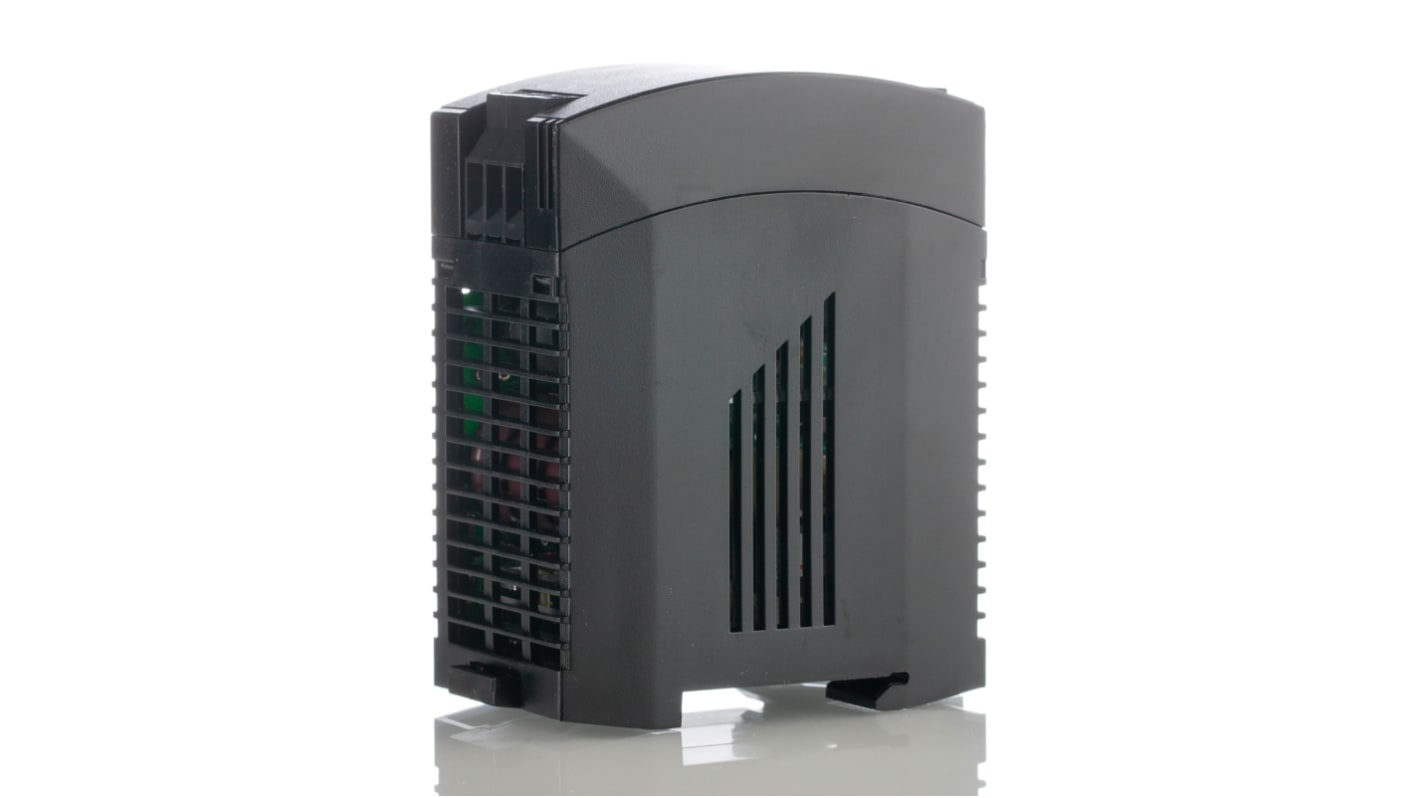

PULS DIN Rail Power Supply
The PULS MiniLine MLY series single-phase DIN-rail power supply have adjustable output voltage ranging between 24VDC and 28VDC with 2.5A and 2.1A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage ranging between 100VAC and 240VAC/85VDC and 375VDC. A rugged electrical and mechanical design of robust plastic housing with a fine ventilation grid as well as a high immunity against electrical disturbances on the mains provides reliable output power.
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating at 60 and 70°C
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating at 60 and 70°C
Features and Benefits
Miniature size and lightweight
Quick and easy mount
Plug connector with screw terminations
Efficiency is up to 89.7%
Power rating is 60W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Parallel mode for load sharing
Operation temperature ranges between -10°C and 70°C
Quick and easy mount
Plug connector with screw terminations
Efficiency is up to 89.7%
Power rating is 60W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Parallel mode for load sharing
Operation temperature ranges between -10°C and 70°C
Applications
Industrial control
Automation
Communication and instrumentation equipment
Automation
Communication and instrumentation equipment
Certifications
EN 61000-6-3
CSA certified
UL approved
IP20 rated
NEC class 2 compliant
CSA certified
UL approved
IP20 rated
NEC class 2 compliant
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Output Current | 2.5A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 100 → 240V ac |
Power Rating | 60W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 75mm |
Width | 45mm |
Depth | 91mm |
Series | MiniLine MLY |
Maximum Temperature | +70°C |
Load Regulation | 100mV |
MTBF | 3345000h |
Minimum Temperature | -10°C |
Ripple And Noise | 50mV Pk-Pk |
Mounting Type | DIN Rail Mount |
