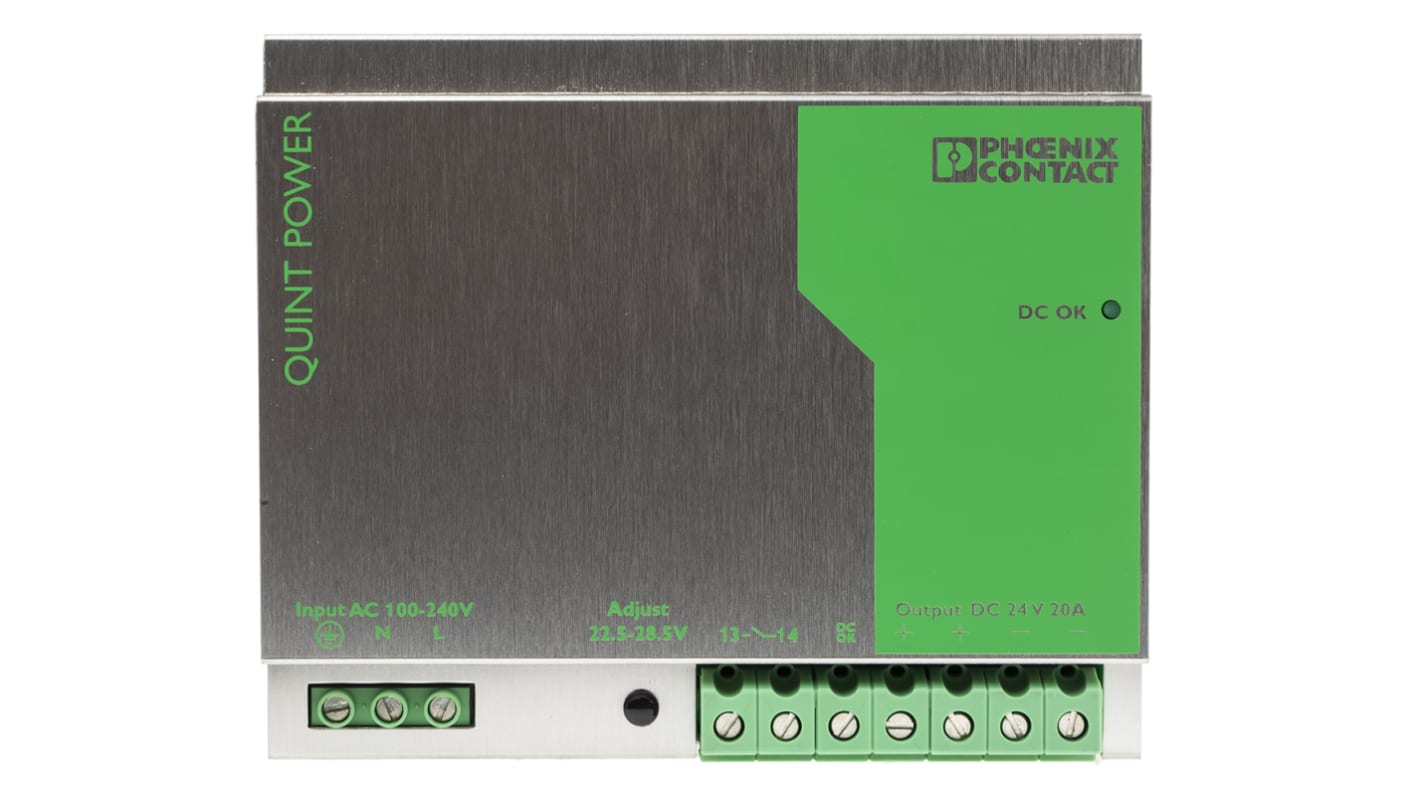

Phoenix Contact QUINT PS-100 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 20A
- RS Stock No.:
- 505-5459
- Mfr. Part No.:
- 2938620
- Brand:
- Phoenix Contact
Discontinued product
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 505-5459
- Mfr. Part No.:
- 2938620
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
Product Details
Phoenix Contact QUINT PS
The QUINT PS range of universal power supply units from Phoenix Contact are designed for starting heavy loads with high inrush currents reliably using POWER BOOST power reserve.
The DIN rail mounting, PSUs can be installed within the potentially hazardous area in which category 3 items are necessary.
The DIN rail mounting, PSUs can be installed within the potentially hazardous area in which category 3 items are necessary.
Features and Benefits
Preventive function monitoring
Reliable at starting difficult loads
Use worldwide
Extensive product range
Fast Tripping of Standard Power Circuit breakers
All ranges between 5 V DC AND 56 V DC are covered
Single and three phase options
IP20 protection
LED displays
Reliable at starting difficult loads
Use worldwide
Extensive product range
Fast Tripping of Standard Power Circuit breakers
All ranges between 5 V DC AND 56 V DC are covered
Single and three phase options
IP20 protection
LED displays
Typical Applications
The QUINT PS units are suitable for use within power management.
Standards
EN 60079-15
Phoenix Contact Switch Mode DIN Rail Power Supply, 480W Power Rating - QUINT-PS-100-240AC/24DC/20 - 2938620
This power supply unit (PSU) from Phoenix Contact is designed for starting heavy loads with high inrush currents in industrial systems. With a 480W power capacity, it's suitable for a wide range of plant and process control applications, including powering control devices for motors in the automotive and manufacturing industries. Robust metal housing offers durability and corrosion resistance, so there's no risk of it decaying through rust.
It's easy to tell when the unit is functioning properly, thanks to a green LED (light-emitting diode) that shows DC OK status. There's also has a preventive function monitoring system that detects critical operating conditions so you can troubleshoot and make changes before damage occurs or time is lost. For reliable short circuit protection, the PSU has an integrated fuse that cuts power when a fault occurs.
It's easy to tell when the unit is functioning properly, thanks to a green LED (light-emitting diode) that shows DC OK status. There's also has a preventive function monitoring system that detects critical operating conditions so you can troubleshoot and make changes before damage occurs or time is lost. For reliable short circuit protection, the PSU has an integrated fuse that cuts power when a fault occurs.
Wide operating temperature range of -25°C to +70°C for use in demanding environments
Screw termination method is simple and doesn't call for complex tools
MTBF (mean time between failures) of 500,000 hours for long-term performance
Screw termination method is simple and doesn't call for complex tools
MTBF (mean time between failures) of 500,000 hours for long-term performance
Specifications
Attribute | Value |
---|---|
Type | Switch Mode |
Output Voltage | 24V dc |
Output Current | 20A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 85 → 264V ac |
Power Rating | 480W |
Electrical Phase | 1 |
Number of Outputs | 2 |
Height | 130mm |
Width | 125mm |
Depth | 130mm |
Series | QUINT PS-100 |
Efficiency | >92% |
Minimum Temperature | -25°C |
MTBF | 500000h |
Load Regulation | ±1% |
Maximum Temperature | +70°C |
Mounting Type | DIN Rail Mount |
Ripple And Noise | 10mV Pk-Pk |
