PULS CP DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 10A Output, 240W
- RS Stock No.:
- 181-2489
- Mfr. Part No.:
- CP10.241-C1
- Brand:
- PULS
7 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Added
Price Each
£238.28
(exc. VAT)
£285.94
(inc. VAT)
| Units | Per unit |
| 1 + | £238.28 |
- RS Stock No.:
- 181-2489
- Mfr. Part No.:
- CP10.241-C1
- Brand:
- PULS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

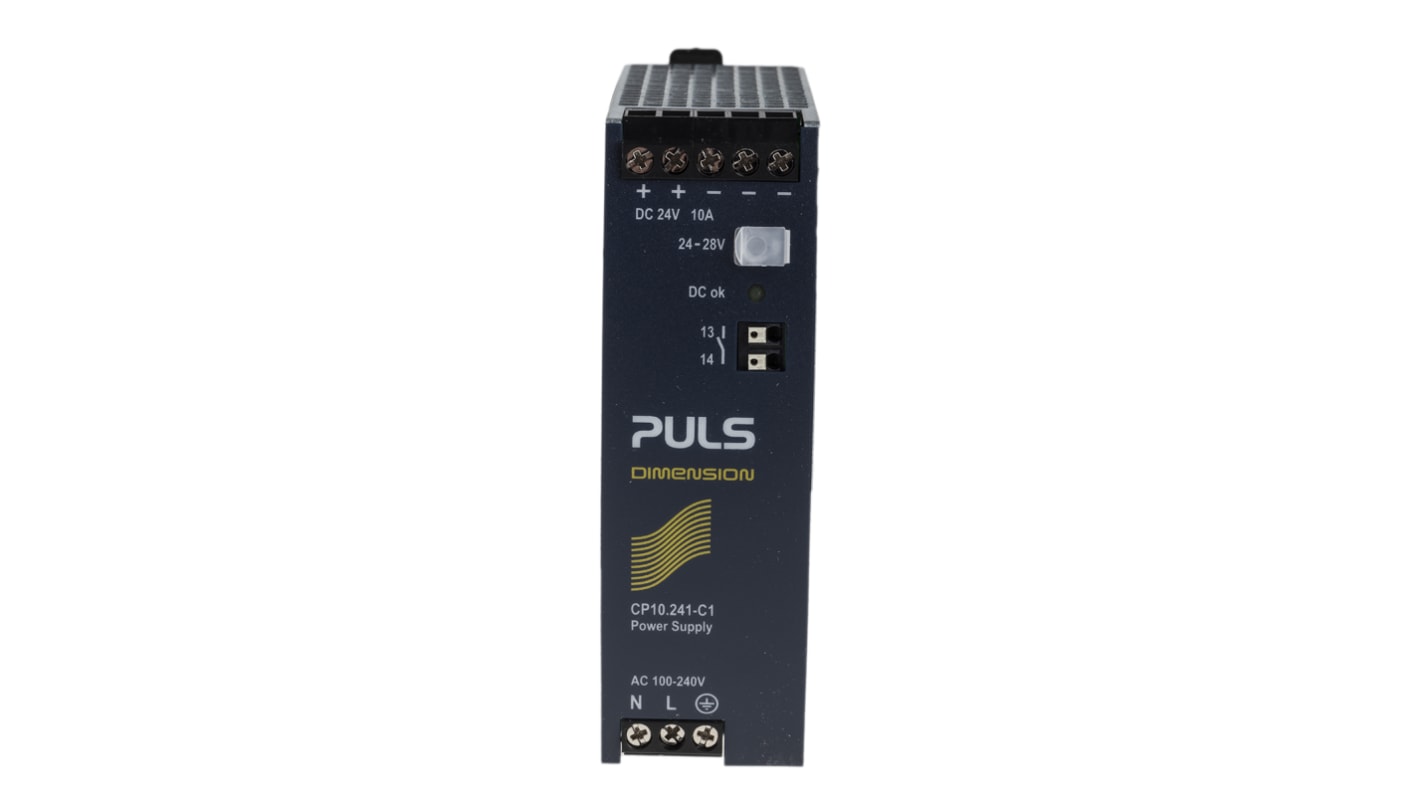

PULS DIN Rail Power Supply
The PULS DIN rail panel mount power supply has an input voltage range from 100VAC to 240VAC. The output current is 10A and the maximum input current is 2.15A. The type of mode is switch mode power supply. The switch mode CP series is a DIN rail mounting type power supply. It has high immunity to transients and power surges as well as low electromagnetic emission makes it suitable for almost every application.
Features and Benefits
• 20% output power reserves
• Active power factor correction
• Efficiency up to 95.2%
• Excellent partial load efficiency
• Minimal inrush surge current
• Overload protection
• Practical handling
• Short circuit protection
• Active power factor correction
• Efficiency up to 95.2%
• Excellent partial load efficiency
• Minimal inrush surge current
• Overload protection
• Practical handling
• Short circuit protection
Applications
• ITE commercials
Certifications
• ATEX
• CE certified
• CULus listed
• IEC
• IECEx
• UL approved
• CE certified
• CULus listed
• IEC
• IECEx
• UL approved
Specifications
Attribute | Value |
|---|---|
| Type | Power Supply |
| Output Voltage | 24V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 100 → 240V ac |
| Power Rating | 240W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 124mm |
| Width | 39mm |
| Depth | 117mm |
| Series | CP |
| Output Voltage Adjustment Range | 24 → 28V |
| Load Regulation | 50mV |
| Special Features | Easy Fuse Breaking due to High Overload Peak Current |
| Maximum Temperature | +70°C |
| Standards Met | ANSI/ISA 12.12.01-2015, ATEX EN 60079-0, ATEX EN 60079-15, CE Certified, cRUus UL 60950-1, CSAus Certified, cULus Listed, GL Listed, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-15, UL 508 |
| Mounting Type | DIN Rail Mount |
| Minimum Temperature | -25°C |
| Hazardous Area Certification | ATEX, IECEx |
| Efficiency | 95.2% |
| Ripple And Noise | 50mV Pk-Pk |
| MTBF | 100h |
