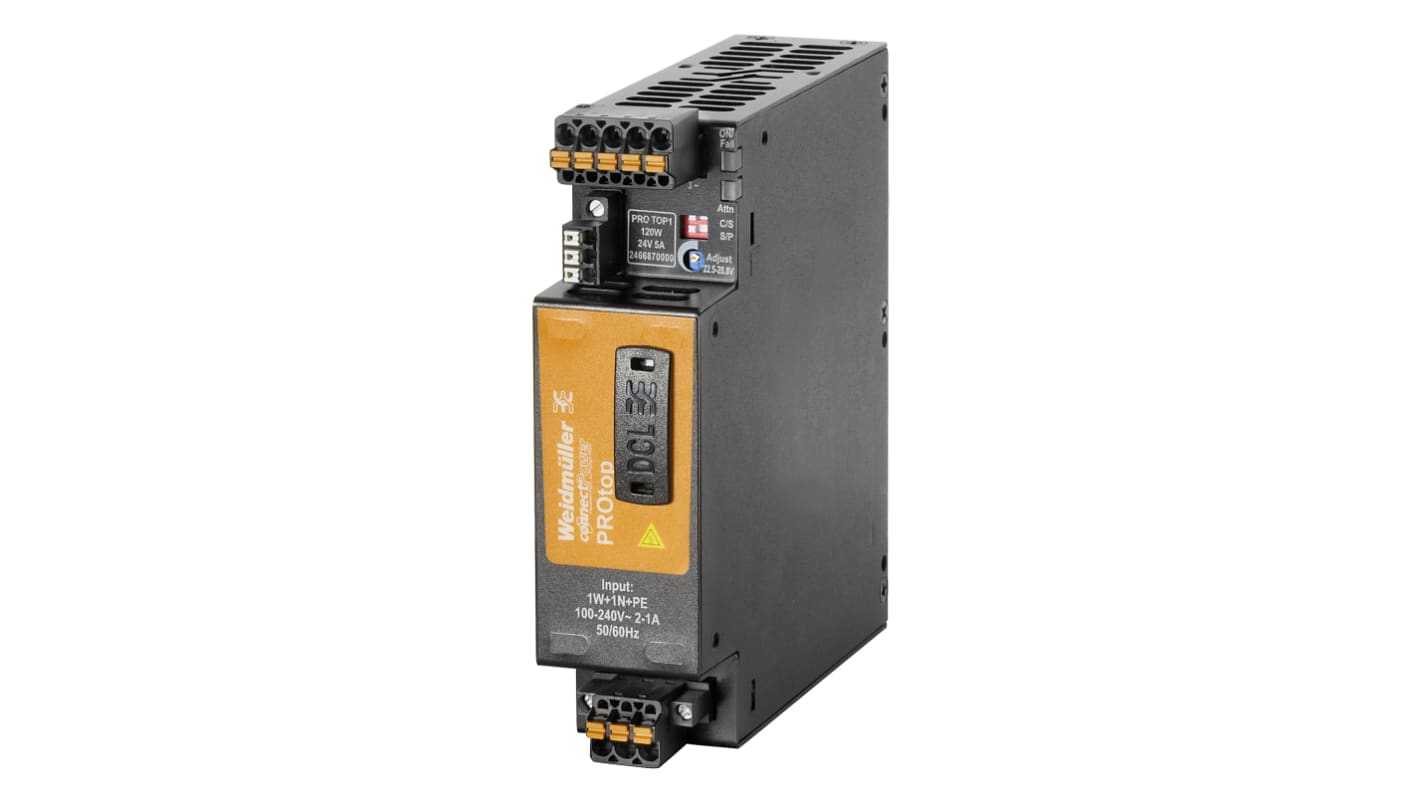

Weidmüller Pro Top Switched Mode DIN Rail Power Supply, 100 → 277 V ac / 120 → 340V dc ac, dc Input, 12V
- RS Stock No.:
- 177-4385
- Mfr. Part No.:
- 2466910000
- Brand:
- Weidmüller
Available to back order for despatch 23/08/2024
Added
Price Each
£171.59
(exc. VAT)
£205.91
(inc. VAT)
| Units | Per unit |
| 1 + | £171.59 |
- RS Stock No.:
- 177-4385
- Mfr. Part No.:
- 2466910000
- Brand:
- Weidmüller
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Weidmuller DIN Rail Panel Mount Power Supply
The Weidmuller DIN rail panel mount power supply is known for its good quality and high end performance. It has an input voltage range from 85VAC to 277VAC. The output current is 10A and the maximum input current is 5A. The switch mode pro top series is a DIN rail mounting type power supply. The ripple and noise factor is 50mV and high MTBF device.
Features and Benefits
• Cost efficient
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
Applications
• Circuit breakers
• Industrial environments
• Powerful motor starts
• Reliable triggering
• Industrial environments
• Powerful motor starts
• Reliable triggering
Certifications
• UL approved
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 12V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 100 → 277 V ac / 120 → 340V dc |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 130mm |
| Width | 35mm |
| Depth | 125mm |
| Series | Pro Top |
| Ripple And Noise | 50mV Pk-Pk |
| Minimum Temperature | -25°C |
| MTBF | 1000000h |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
| Special Features | Series Switching Capability, Switch-Mode Power Supply |
