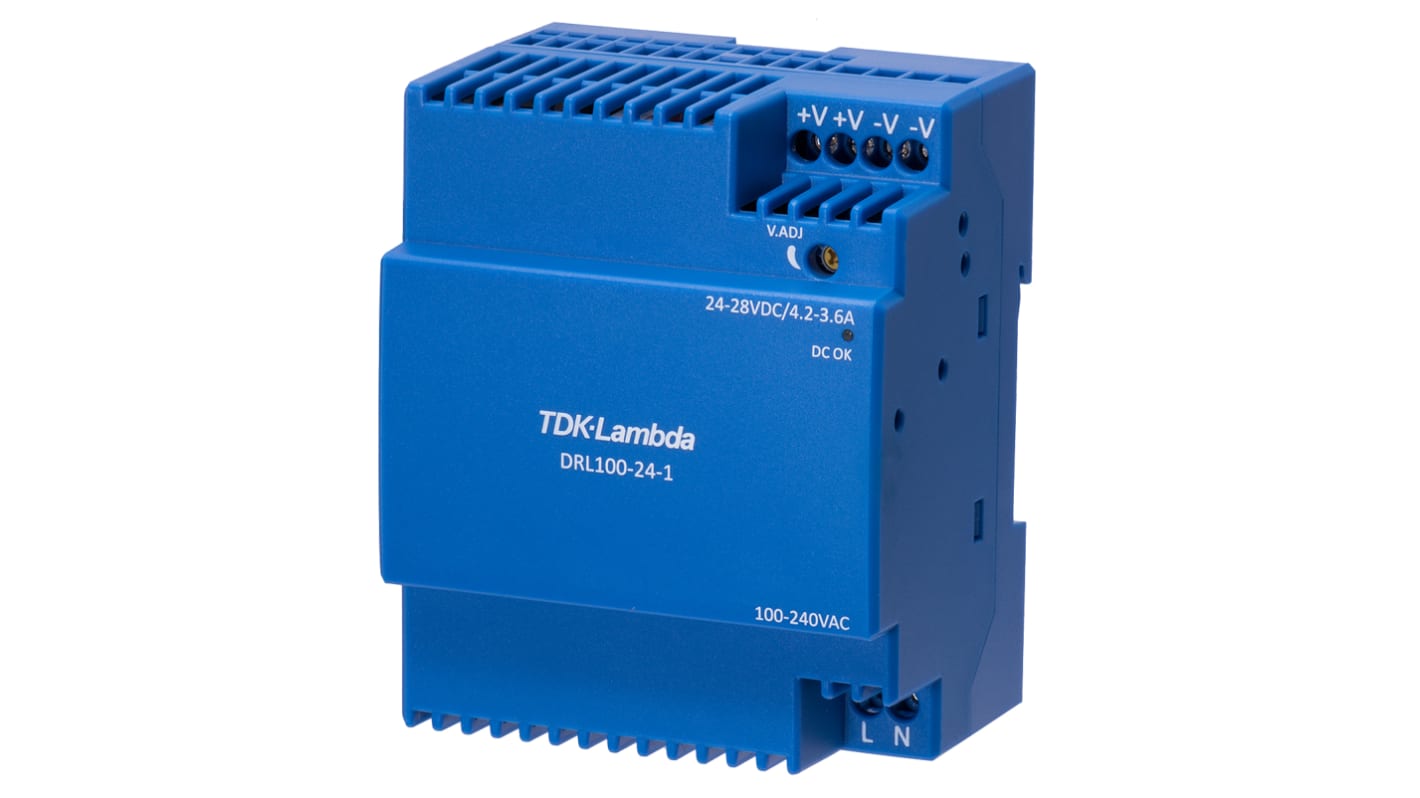

TDK-Lambda DRL-100 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 4.2A Output,
- RS Stock No.:
- 137-0858
- Mfr. Part No.:
- DRL-100-24-1
- Brand:
- TDK-Lambda
14 In stock - FREE next working day delivery available
7 available from Europe for delivery within 1 working day(s).
Added
Price Each
£48.22
(exc. VAT)
£57.86
(inc. VAT)
| Units | Per unit |
| 1 + | £48.22 |
- RS Stock No.:
- 137-0858
- Mfr. Part No.:
- DRL-100-24-1
- Brand:
- TDK-Lambda
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
DRL Series DIN Rail Power Supplies
The low profile DRL series DIN Rail power supply provides a reliable solution for many industrial applications and building automation. With double insulation and safety Class II input, connection to earth is not required. The NEC Class 2 compliant output, in accordance with UL 1310, allows operation where output currents are to be limited under fault conditions. Available in four power ranges, the DRL series provide a choice of 12 and 24 output voltages.
Features and Benefits
• Protection Class II
• No load power < 0.3 W to 0.5 W
• Universal AC input 85 V ac to 264 V ac
• 12 V and 24 V dc
• Operating temperature -20°C to +71°C
Product Application Information
• Building control
• Security and surveillance
• Climate controls
• Smart home
• Renewable energy
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 4.2A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Power Rating | 100W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 91mm |
| Width | 72mm |
| Depth | 55.6mm |
| Series | DRL-100 |
| Minimum Temperature | -20°C |
| Maximum Temperature | +71°C |
| Special Features | High In-Service Lifetime, Low No Load Consumption |
| Ripple And Noise | 240mV |
| Mounting Type | DIN Rail Mount |
| Output Voltage Adjustment Range | 24 → 28V |
| Load Regulation | 240mV |
| Standards Met | IEC 60068-2-27, IEC 60068-2-6, UL 1310, UL 508, UL 60950-1 |
