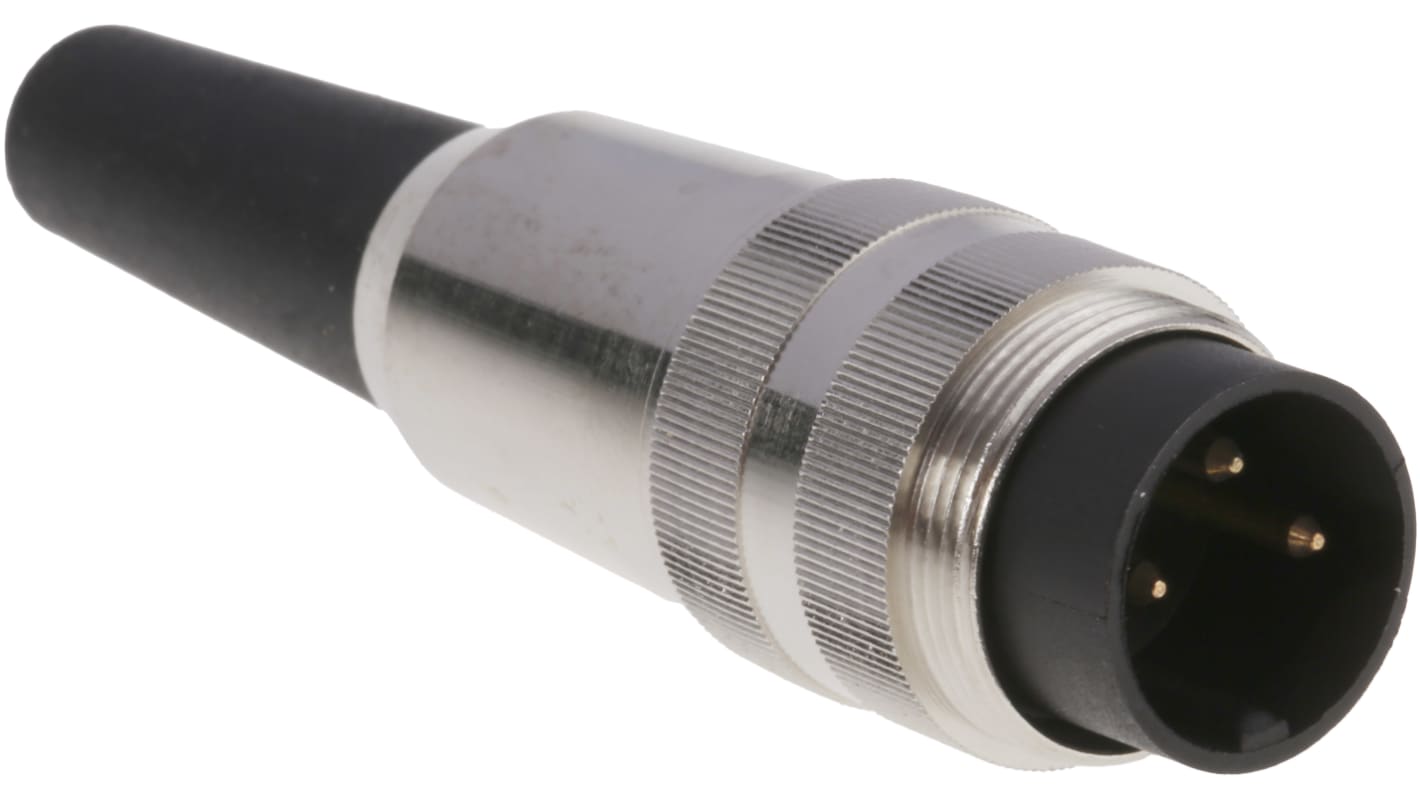

Lumberg SV Series, 3 Pole Din Plug Plug, DIN EN 60529, 5A, 250 V ac IP40, Screw On

  • RS Stock No. 533-6720
  • Mfr. Part No. SV 30
  • Brand Lumberg
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

SV Cable Plugs

Straight version with threaded joint and solder terminals

Temperature range -40°C → +85°C
Mates with Sockets: KV, KFV
Contact resistance ≤5 mΩ
Cable csa 0.75mm2
- (except SV 120) 0.25mm2

Standards

IEC60130-9

//media.rs-online.com/t_line/L533676-01.gif

Lumberg DIN Connector

The Lumberg DIN connector is an SV series 3-pole, male, din plug with an electrical rating of 250VAC and 5A. This connector has brass contact material plated with gold over silver. It has chassis, cable mount plugs and sockets up to 12-way.

Features and Benefits

• Cable mount device
• Contact resistance ≤5mohm
• Operating temperature ranges between -40°C and 85°C
• Straight version with threaded joint
• Solder terminals

Applications

• Automation technology
• Control engineering
• Medical instrumentation
• MIDI instruments
• PC keyboards
• Portable video devices and projectors

Certifications

• EN 60529
• IEC60130-9
• IP40 rated

Lumberg Connectors - IP40

Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.

Specifications
Attribute Value
Number of Contacts 3
Gender Male
Mounting Type Cable Mount
Mating Type Screw On
Termination Method Solder
Body Orientation Straight
Current Rating 5A
Voltage Rating 250 V ac
IP Rating IP40
DIN Number DIN EN 60529
Series SV
Minimum Operating Temperature -40°C
Contact Material Brass
Maximum Operating Temperature +85°C
Contact Plating Gold over Silver
2745 In stock for FREE next working day delivery
Price Each
£ 4.60
(exc. VAT)
£ 5.52
(inc. VAT)
Units
Per unit
1 - 9
£4.60
10 - 49
£4.11
50 - 99
£3.72
100 +
£3.35
