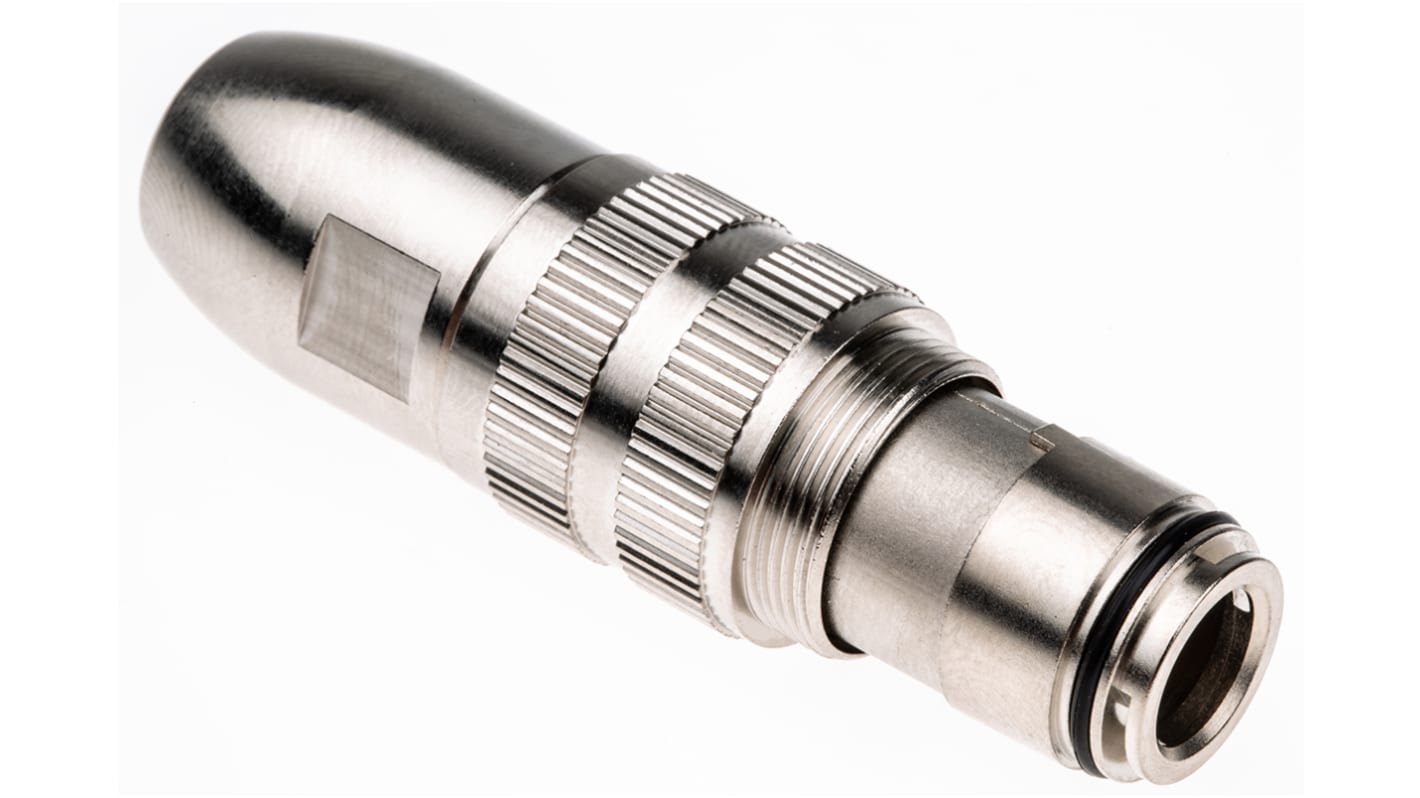

Lumberg 7 Pole Din Plug, DIN EN 60529, 5A, 250 V ac IP68, Male, Cable Mount
- RS Stock No.:
- 533-2627
- Mfr. Part No.:
- 0332 07
- Brand:
- Lumberg
233 In stock - FREE next working day delivery available
55 available from Europe for delivery within 1 working day(s).
Added
Price Each
£11.22
(exc. VAT)
£13.46
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £11.22 |
| 10 - 49 | £10.11 |
| 50 - 99 | £9.09 |
| 100 + | £8.18 |
- RS Stock No.:
- 533-2627
- Mfr. Part No.:
- 0332 07
- Brand:
- Lumberg
Technical Reference
Legislation and Compliance
Product Details
0332 Cable Plugs
Threaded joint and solder terminals
360° shielded
360° shielded
Standards
IEC60130-9
Lumberg DIN Connector
The Lumberg DIN connector is a 7-pole, male, din plug socket with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way.
Features and Benefits
• Cable mount device
• Contact resistance ≤5mohm
• Operating temperature ranges between -40°C and 85°C
• Shielded at 360°
• Solder terminals
• Threaded joint device
• Contact resistance ≤5mohm
• Operating temperature ranges between -40°C and 85°C
• Shielded at 360°
• Solder terminals
• Threaded joint device
Applications
• Automation technology
• Medical instrumentation
• Medical instrumentation
Certifications
• EN 60529
• IEC60130-9
• IP68 rated
• IEC60130-9
• IP68 rated
Lumberg Connectors Standard and SWUM™ - IP68
Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 7 |
| Gender | Male |
| Mounting Type | Cable Mount |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 5A |
| Voltage Rating | 250 V ac |
| IP Rating | IP68 |
| DIN Number | DIN EN 60529 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Plating | Gold over Silver |
| Contact Material | Brass |
- RS Stock No.:
- 533-2627
- Mfr. Part No.:
- 0332 07
- Brand:
- Lumberg
