- RS Stock No.:
- 170-5516
- Mfr. Part No.:
- KV 30
- Brand:
- Lumberg
850 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 50)
£4.677
(exc. VAT)
£5.612
(inc. VAT)
Units | Per unit | Per Box* |
50 + | £4.677 | £233.85 |
*price indicative |
- RS Stock No.:
- 170-5516
- Mfr. Part No.:
- KV 30
- Brand:
- Lumberg
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

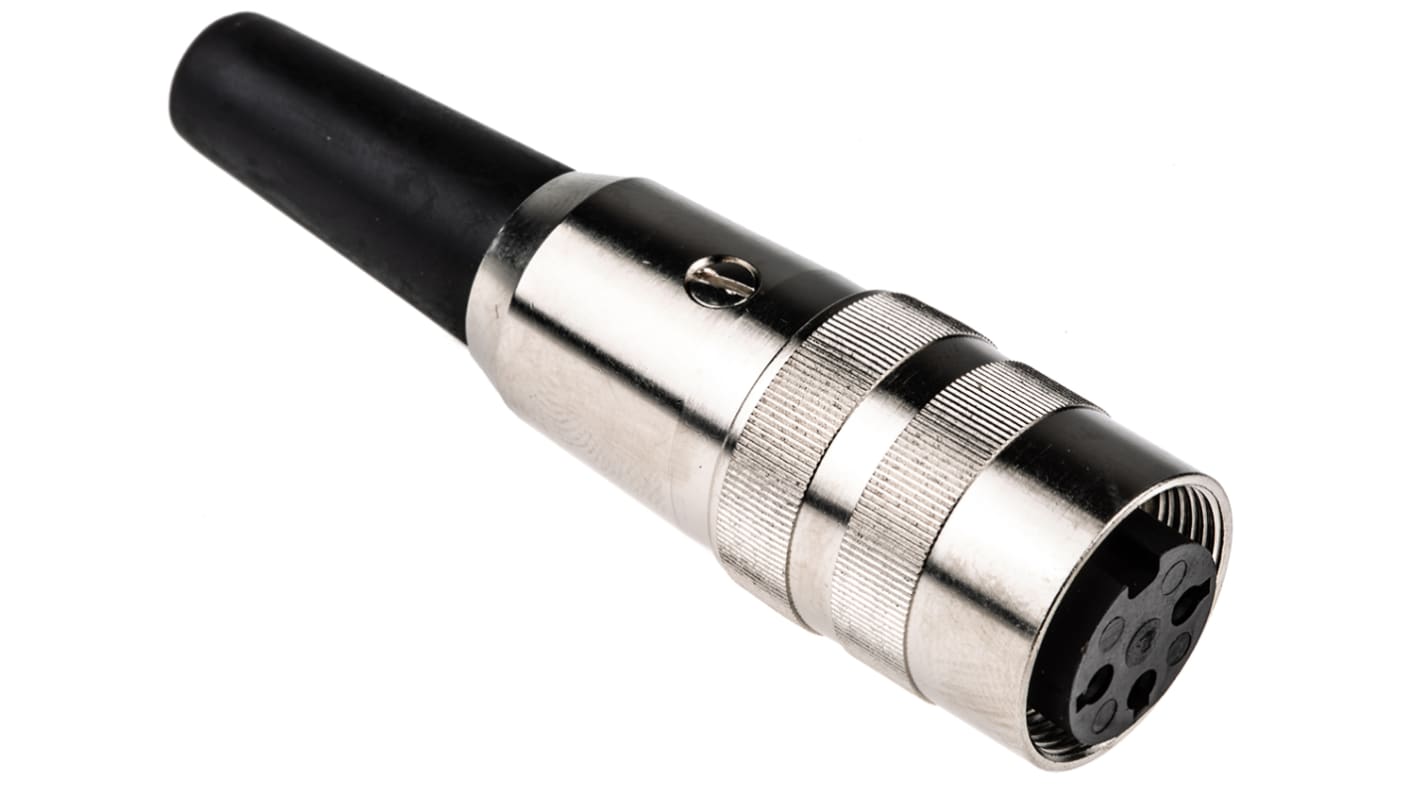

KV Cable Sockets
Straight version with threaded joint and solder terminals
533-2778 is domino layout (with pin in four corners and a middle pin)
533-2778 is domino layout (with pin in four corners and a middle pin)
Standards
IEC60130-9
Lumberg DIN Connector
The Lumberg DIN connector is a KV series, 3-pole, female, socket with an electrical rating of 250VAC and 5A. It is round with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way.
Features and Benefits
• 533-2778 is domino layout (with pin in four corners and a middle pin)
• Cable mount device
• Contact resistance ≤5mohm
• Front mounting device
• Operating temperature ranges between -40°C and 85°C
• Shielded at 360°
• Solder terminals
• Threaded joint device
• Cable mount device
• Contact resistance ≤5mohm
• Front mounting device
• Operating temperature ranges between -40°C and 85°C
• Shielded at 360°
• Solder terminals
• Threaded joint device
Applications
• Automation technology
• Control engineering
• Medical instrumentation
• MIDI instruments
• PC keyboards
• Portable video devices and projectors
• Control engineering
• Medical instrumentation
• MIDI instruments
• PC keyboards
• Portable video devices and projectors
Certifications
• EN 60529
• IEC60130-9
• IP40 rated
• IEC60130-9
• IP40 rated
Lumberg Connectors - IP40
Chassis and cable mount plugs and sockets up to 12 way. Typical applications are control engineering, automation technology and medical instrumentation.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 3 |
Gender | Female |
Mounting Type | Cable Mount |
Connector Size | M16 |
Mating Type | Screw On |
Termination Method | Solder |
Body Orientation | Straight |
Current Rating | 5A |
Voltage Rating | 250 V ac |
IP Rating | IP40 |
DIN Number | DIN EN 60529 |
Series | KV |
Contact Material | Brass |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
