RS PRO 3 Pole Din Plug, 2A, 34 V ac/dc, Male, Cable Mount
- RS Stock No.:
- 110-2797
- Brand:
- RS PRO
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 110-2797
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

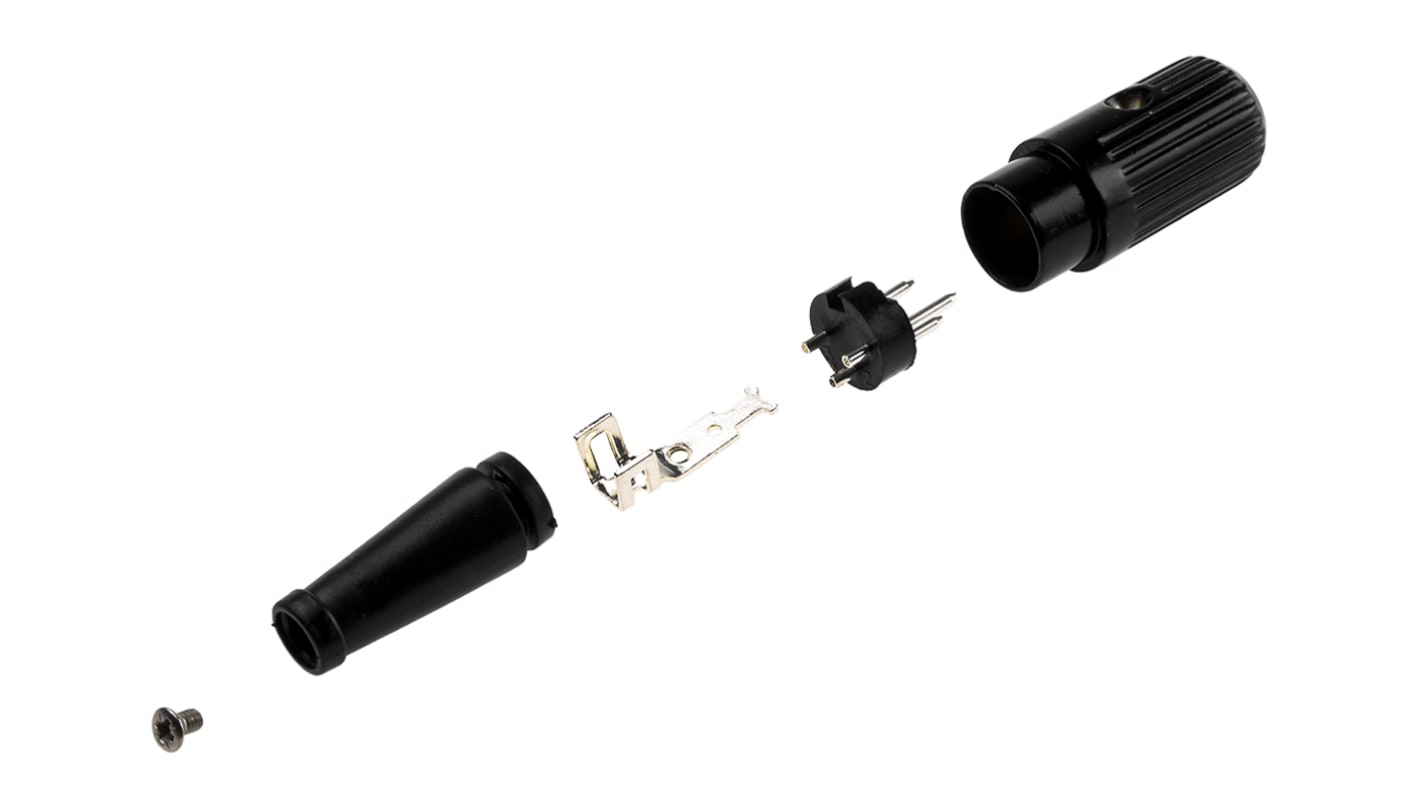

DIN standard male plugs - black finish
Brought to you by the trusted RS Brand, this range of robust metal DIN connectors have all the benefits of the "standard metal'' range, but are coated in a black finish. While the connectors have no lock, they are supplied with a cable tie and a grommet, ensuring a reliable and secure connection for standard DIN applications. The standard DIN connector measures 60.3mm in length and in 15.9mm diameter.
Note
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Male |
| Mounting Type | Cable Mount |
| Connector Size | Standard |
| Termination Method | Crimp |
| Current Rating | 2A |
| Voltage Rating | 34 V ac/dc |
| Shielded/Unshielded | Shielded |
| DIN Number | DIN 41524, DIN 45322, DIN 45326, DIN 45327, DIN 45329 |
| Series | 611 |
| Housing Material | Zinc Alloy |
| Contact Material | Brass |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Silver |
