Molex 121023 3P DIN 43650 C DIN 43650 Solenoid Connector, 250 V ac, 300 V dc Voltage
- RS Stock No.:
- 174-6586
- Mfr. Part No.:
- 121023-0467
- Brand:
- Molex
Available to back order for despatch 28/05/2024
Added
Price Each (In a Bag of 5)
£2.588
(exc. VAT)
£3.106
(inc. VAT)
| Units | Per unit | Per Bag* |
| 5 + | £2.588 | £12.94 |
| *price indicative | ||
- RS Stock No.:
- 174-6586
- Mfr. Part No.:
- 121023-0467
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details

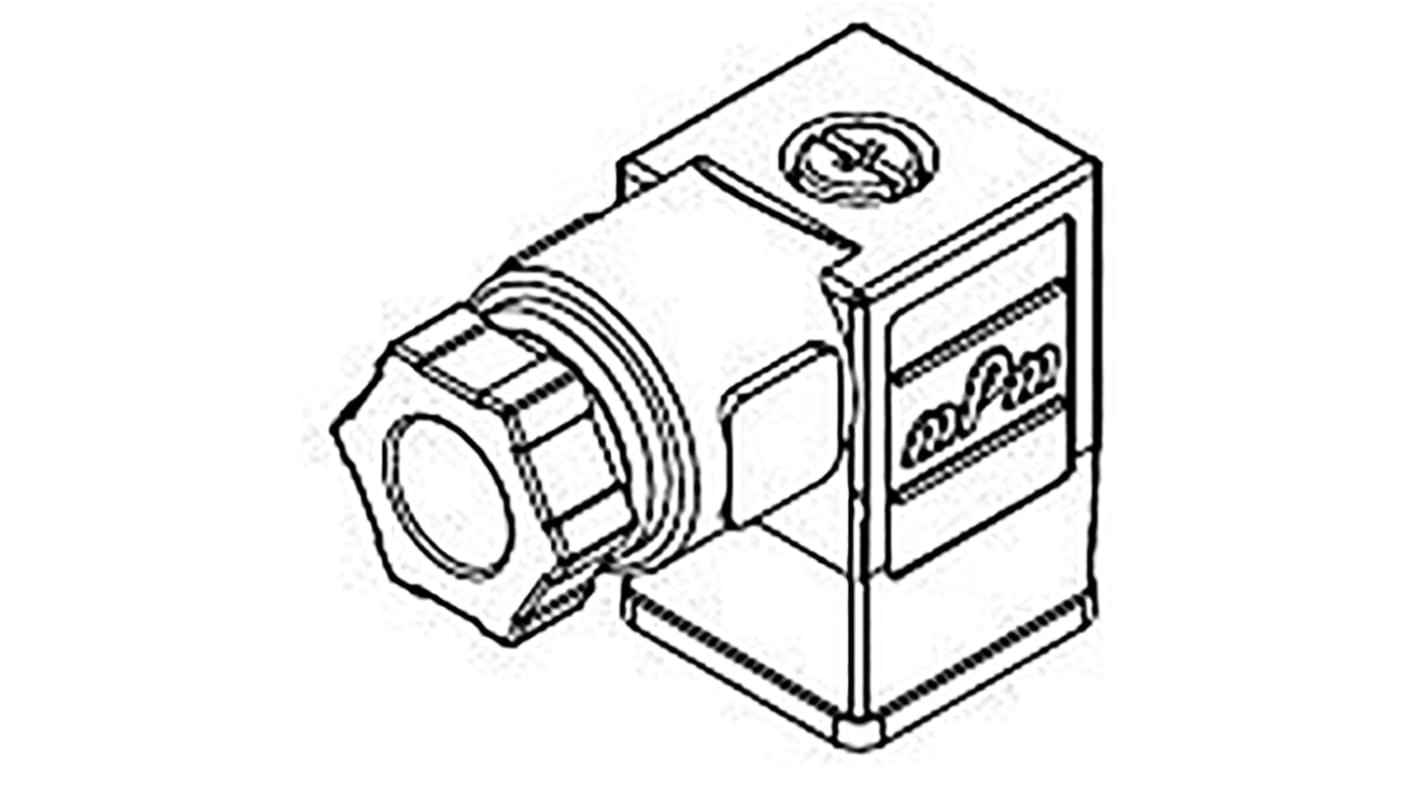

Molex mPm DIN Valve Connector
The Molex mPm field attachable DIN solenoid valve connector comes with improved strain relief. The cable retention force is increased up to 20% over internal nut style. It is a Form C industrial, PG7 internal thread, 3-pole plus ground position H12, black nitrile flat gasket and screw, bulk pack mounted connector.
Features and Benefits
• Superior cable retention
• Simplifies manufacturing processes
• Internal thread coupling
• Polypropylene connector body
• Silver plated mating
• Operating temperature ranges between -40°C and 90°C
• Simplifies manufacturing processes
• Internal thread coupling
• Polypropylene connector body
• Silver plated mating
• Operating temperature ranges between -40°C and 90°C
Applications
• Hydraulic, pneumatic and electromagnetic devices
Certifications
• IP65 rated
• IP67 rated
• IP67 rated
Specifications
Attribute | Value |
|---|---|
| Pole Format | 3P |
| DIN 43650 Type | DIN 43650 C |
| Voltage Rating | 250 V ac, 300 V dc |
| Cable Gland Size | PG7 |
| Colour | Black |
| Current Rating | 16A |
| Series | 121023 |
| IP Rating | IP65, IP67 |
| Termination Method | Screw |
- RS Stock No.:
- 174-6586
- Mfr. Part No.:
- 121023-0467
- Brand:
- Molex
