Hirschmann GM 2P+E DIN 43650 B, Female Solenoid Valve Connector, 250 V Voltage
- RS Stock No.:
- 484-010
- Mfr. Part No.:
- 932977100 GM 209 NJ black
- Brand:
- Hirschmann
Available to back order for despatch 21/05/2024
Added
Price Each
£2.93
(exc. VAT)
£3.52
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.93 |
| 10 - 24 | £2.73 |
| 25 - 49 | £2.34 |
| 50 + | £2.26 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 484-010
- Mfr. Part No.:
- 932977100 GM 209 NJ black
- Brand:
- Hirschmann
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- DE
Product Details

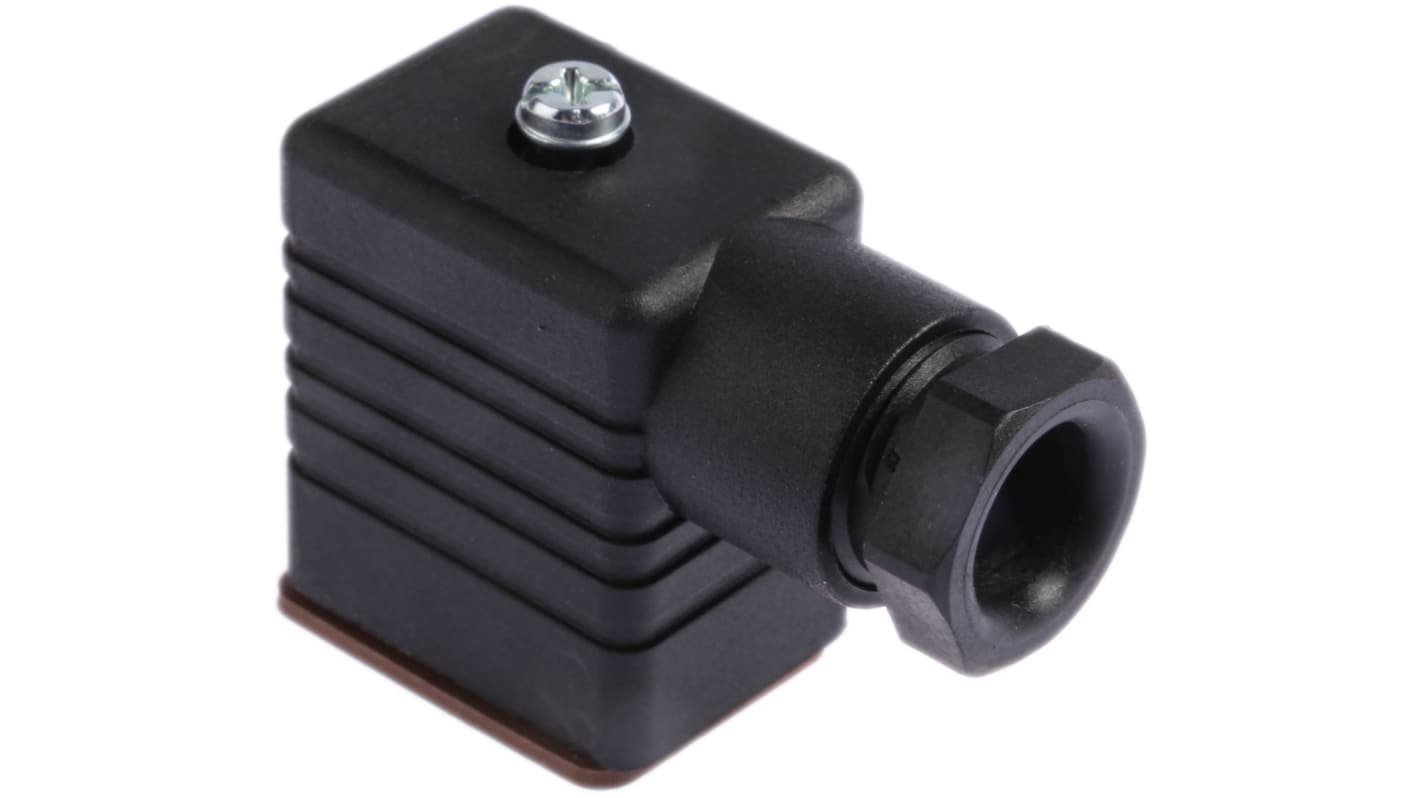

Belden Hirschmann Solenoid Valve Connector, 250V AC/DC, 16A - GM Series - 932977100 GM 209 NJ black
Safely connect your solenoid valve or pressure switch to a power source using this solenoid valve connector from Belden Hirschmann. The female unit's black housing is made of durable glass-fibre-reinforced PA (polyamide) material, which offers excellent resistance to impacts and chemicals. Thanks to an operating temperature range from -40°C to +125°C, you can rely on this unit to perform even in extreme industrial conditions. You'll commonly find connectors like this one used in hydraulic and pneumatic equipment.
Features & Benefits
• IP65 (ingress protection) rating means it's dust-tight and able to withstand low-pressure water jets from all directions
• Earth pole for protection against harmful electric shocks
• Earth pole for protection against harmful electric shocks
Applications
• HVAC (heating, ventilation and air conditioning) systems
• Water treatment facilities
• High-temperature ovens
• Medical technology
• Gas plants
• Water treatment facilities
• High-temperature ovens
• Medical technology
• Gas plants
What cable diameter can I use with this solenoid valve connector?
The connector is suitable for cables with open diameters of 4.5 to 7mm.
How do I attach the cable to the connector?
The connector has screw terminals for attaching the wires. This makes installation quick and easy.
Specifications
Attribute | Value |
|---|---|
| Pole Format | 2P+E |
| DIN 43650 Type | DIN 43650 B |
| Voltage Rating | 250 V |
| Gender | Female |
| Mounting Type | Screw Down |
| Cable Gland Size | PG9 |
| Colour | Black |
| Current Rating | 16A |
| Series | GM |
| IP Rating | IP65 |
| Termination Method | Screw Down |
| Cable Diameter | 4.5 → 7mm |
