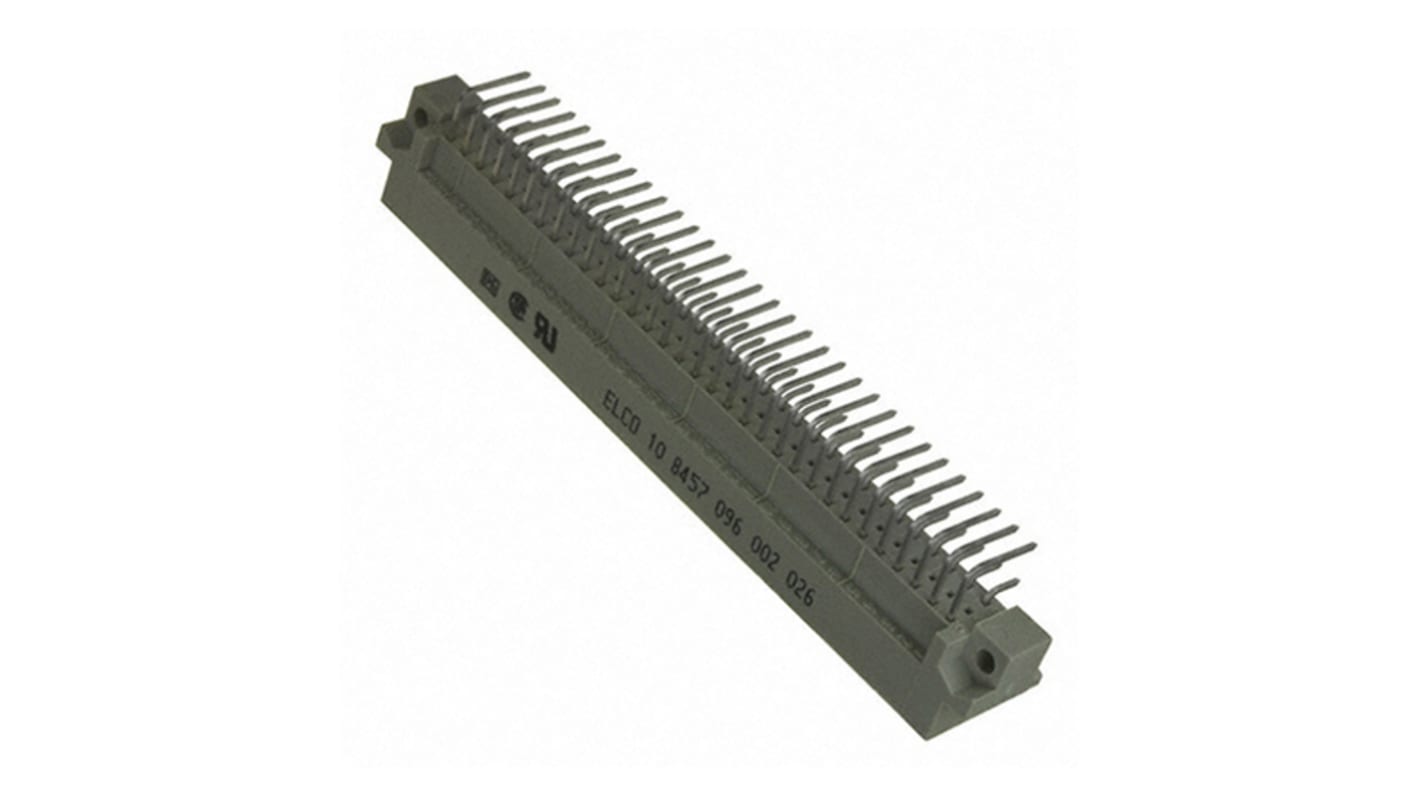

AVX 8457 Series 64 Way 2.54mm Pitch, Type C Class C2, 3 Row, Right Angle DIN 41612 Connector, Plug

  • RS Stock No. 888-1627
  • Mfr. Part No. 108457096002026
  • Brand AVX
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

8457 Series DIN41612 Connectors

AVX DIN 41612 8457 series backplane connectors are designed for PCB applications with a maximum of 3A per contact. Hard wearing and durable with a good mating cycle, these DIN 41612 PCB connectors offer an economical solution to many connector design applications.

Operating temp -55 to +125 °C
3A max per contact
Test voltage 1kV
Thermoplastic polyester - glass filled

DIN41612 - AVX Range

Specifications
Attribute Value
Number of Contacts 64
Gender Male
Number of Rows 3
Body Orientation Right Angle
Termination Method Solder
Row Loading A/c
Type C
Pitch 2.54mm
Contact Plating Tin
Class Rating C2
Current Rating 3A
Contact Material Copper Alloy
Maximum Contact Resistance 20mΩ
Maximum Operating Temperature +125°C
Minimum Operating Temperature -65°C
Series 8457
Housing Material Thermoplastic Polyester
Available to back order for despatch 01/05/2020
Price Each (In a Pack of 10)
£ 4.116
(exc. VAT)
£ 4.939
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£4.116
£41.16
*price indicative
