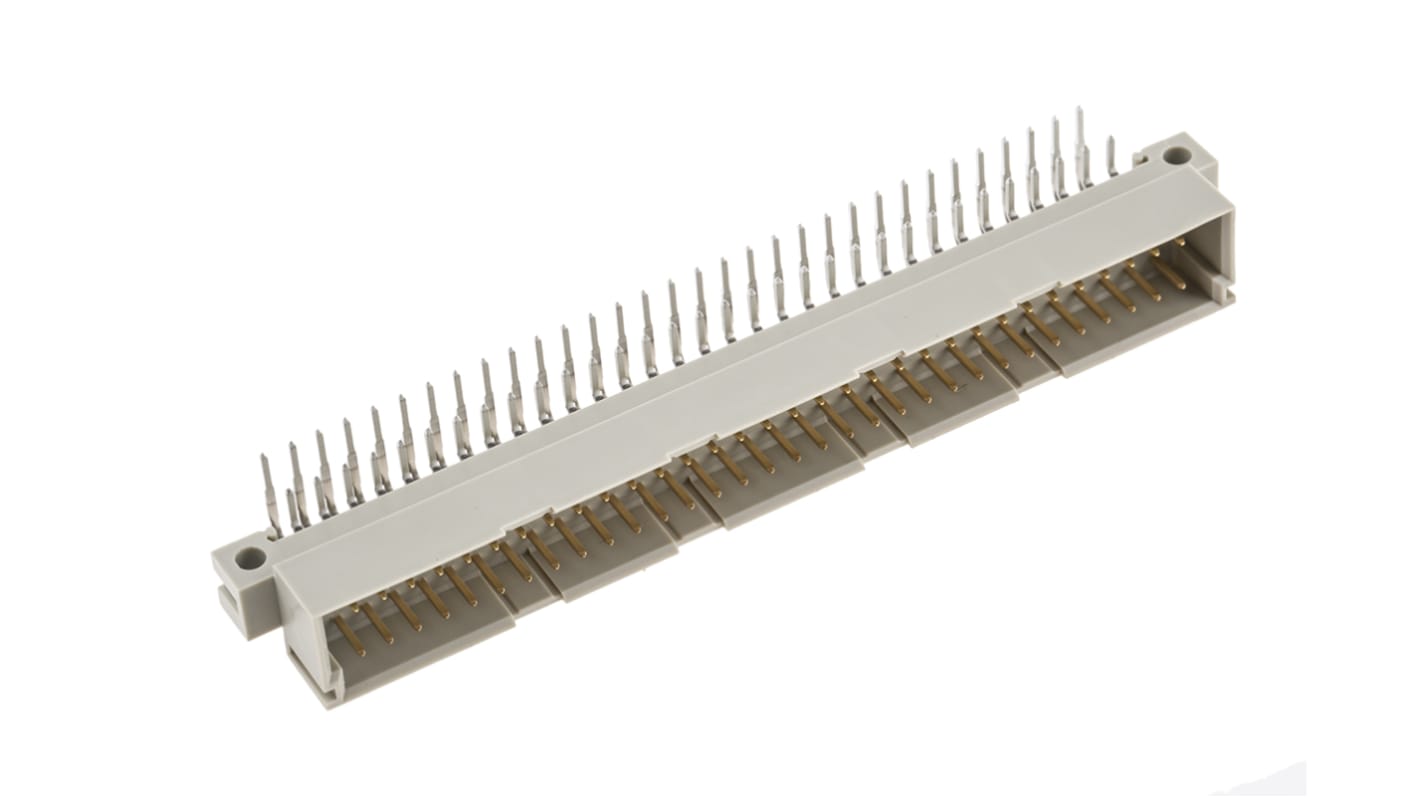

RS PRO 64 Way 2.54mm Pitch, Type C Class C3, 2 Row, Right Angle DIN 41612 Connector, Plug
- RS Stock No.:
- 508-3347
- Brand:
- RS PRO
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 5)
£2.286
(exc. VAT)
£2.743
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 95 | £2.286 | £11.43 |
| 100 - 370 | £1.896 | £9.48 |
| 375 - 1495 | £1.60 | £8.00 |
| 1500 - 2995 | £1.494 | £7.47 |
| 3000 + | £1.456 | £7.28 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 508-3347
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
DIN 41612 Types B and C Two-part Edge Connectors
Class 1, 2 and 3 performance versions available
Type B (2 row) 32 and 64 way or type C (3 row) 64 and 96 way versions available
Tin plated termination supplied as follows :
Type B (2 row) 32 and 64 way or type C (3 row) 64 and 96 way versions available
Tin plated termination supplied as follows :
Plugs - 90° PCB Pins
Sockets - 13mm wire wrap or 4mm PCB Pins
Sockets - 13mm wire wrap or 4mm PCB Pins
Manufactured to a high quality standard to DIN 41612 part 5
Female contacts are of a dual cantilever design increasing reliability, reducing insertion force (not contact pressure) and extending connector life
Female contacts are of a dual cantilever design increasing reliability, reducing insertion force (not contact pressure) and extending connector life
DIN41612 - RS Range
DIN 41612 connectors for interconnection in all 19in Eurocard racking systems. Connectors are compatible with RS 19in sub-rack systems. Typical applications include telecommunications, data communications, measurement and control. Connection between plug-in cards at right angle to backplane wiring. Connection between two parallel PCB's arranged one above the other. For front or rear I/O.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 64 |
| Gender | Male |
| Number of Rows | 2 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Row Loading | a/c |
| Type | C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Class Rating | C3 |
| Current Rating | 2A |
| Contact Material | Phosphor Bronze |
| Maximum Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -55°C |
| Voltage Rating | 1 kV |
| Maximum Operating Temperature | +125°C |
| Housing Material | PBT |
