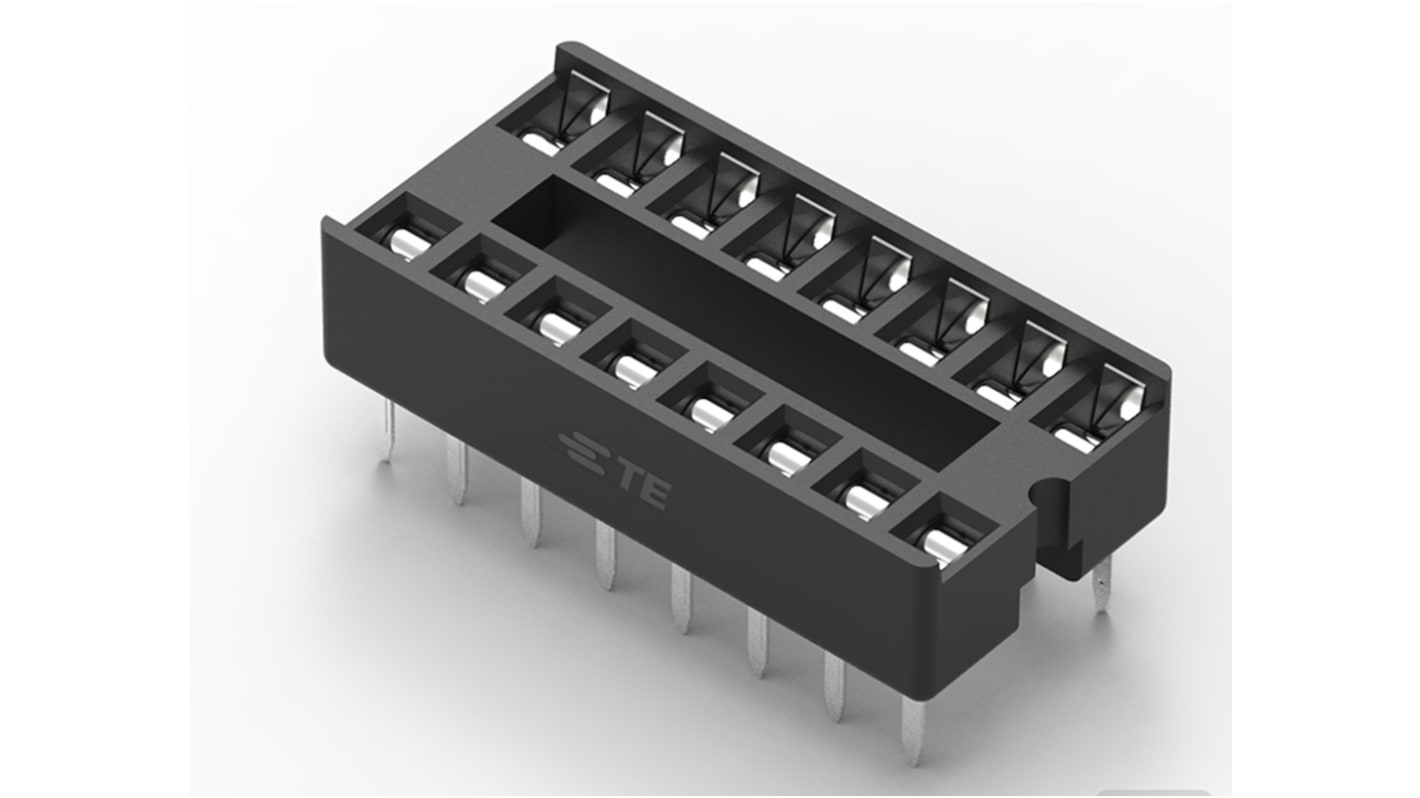

TE Connectivity 2.54mm Pitch Vertical 16 Way, Through Hole Standard Pin Ladder IC Dip Socket, 1A

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Our large selection of DIP sockets ranging from 6 to 48 contacts provides a highly reliable connection between your integrated circuit (IC) devices and PCBs. Termination options include through hole and surface mounting, four-finger and dual leaf contacts, as well as a variety of plating options.

6 to 48 positions
Precision four-finger inner contacts or dual
Leaf contacts are optional
Open frame and closed frame housings
End-to-end and side-to-side stackable
Available with a variety of plating options
Quick IC mating/unmating
Easy field IC replacement
Avoidance of IC overheating during soldering
Flexibility of system upgrade
Large portfolio offers product closest to your need
Applications
Industrial controls
Intelligent buildings
Medical devices
Military
Other embedded systems

Specifications
Attribute Value
Number of Contacts 16
Mounting Type Through Hole
Pin Type Standard
Pitch 2.54mm
Row Width 7.62mm
Frame Type Ladder
Termination Method Solder
Contact Plating Tin
Current Rating 1A
Orientation Vertical
Length 17.78mm
Width 10mm
Depth 5.1mm
Dimensions 17.78 x 10 x 5.1mm
Housing Material PBT
Contact Material Phosphor Bronze
Maximum Operating Temperature +105°C
Voltage Rating 250 V ac/dc
Minimum Operating Temperature -40°C
510 In stock - FREE next working day delivery available
Price Each (In a Pack of 30)
£ 0.142
(exc. VAT)
£ 0.17
(inc. VAT)
Units
Per unit
Per Pack*
30 - 60
£0.142
£4.26
90 - 210
£0.117
£3.51
240 - 870
£0.111
£3.33
900 +
£0.099
£2.97
*price indicative
