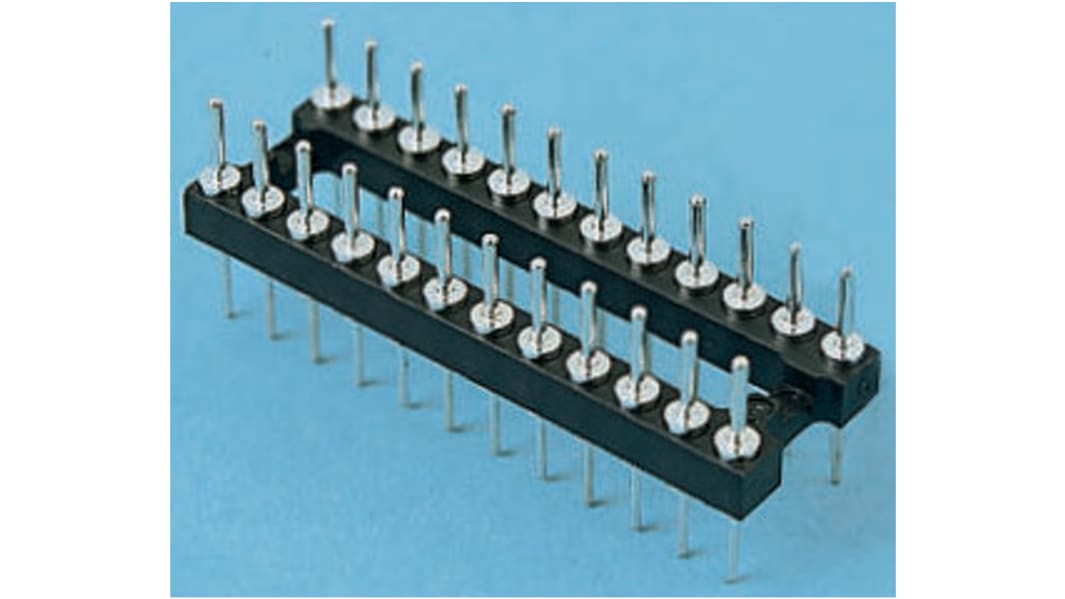

E-TEC 2.54mm Pitch 20 Way,Through Hole Mount IC Dip Header, Tin
- RS Stock No.:
- 615-5342
- Mfr. Part No.:
- POS-320-S037-99
- Brand:
- E-TEC
4 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price 1 Tube of 20
£49.44
(exc. VAT)
£59.33
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 9 | £49.44 | £2.472 |
| 10 - 24 | £47.02 | £2.351 |
| 25 - 49 | £44.55 | £2.228 |
| 50 - 99 | £42.02 | £2.101 |
| 100 + | £39.60 | £1.98 |
| *price indicative | ||
- RS Stock No.:
- 615-5342
- Mfr. Part No.:
- POS-320-S037-99
- Brand:
- E-TEC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Through Headers
Tin plated through headers, suitable for interconnecting two PCBs. They can be used with appropriate DIL socket to form a plug and socket pair, or can be directly soldered to the PCB.
Inner contact material: Tin plated beryllium copper
Outer pin material: Tin plated brass
Current rating 3A
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109Ω (at 500Vdc)
Operating Temperature -65°C to +175°C
Flammability UL 94 V-0
Outer pin material: Tin plated brass
Current rating 3A
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109Ω (at 500Vdc)
Operating Temperature -65°C to +175°C
Flammability UL 94 V-0
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 20 |
| Contact Plating | Tin |
| Pitch | 2.54mm |
| Termination Method | Solder |
| Mounting Type | Through Hole |
| Housing Material | PBT |
| Width | 8.15mm |
| Length | 25.3mm |
- RS Stock No.:
- 615-5342
- Mfr. Part No.:
- POS-320-S037-99
- Brand:
- E-TEC
