Chauvin Arnoux C.A 1822 E, J, K, N, R, S, T Input Handheld Digital Thermometer, for Multipurpose Use

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

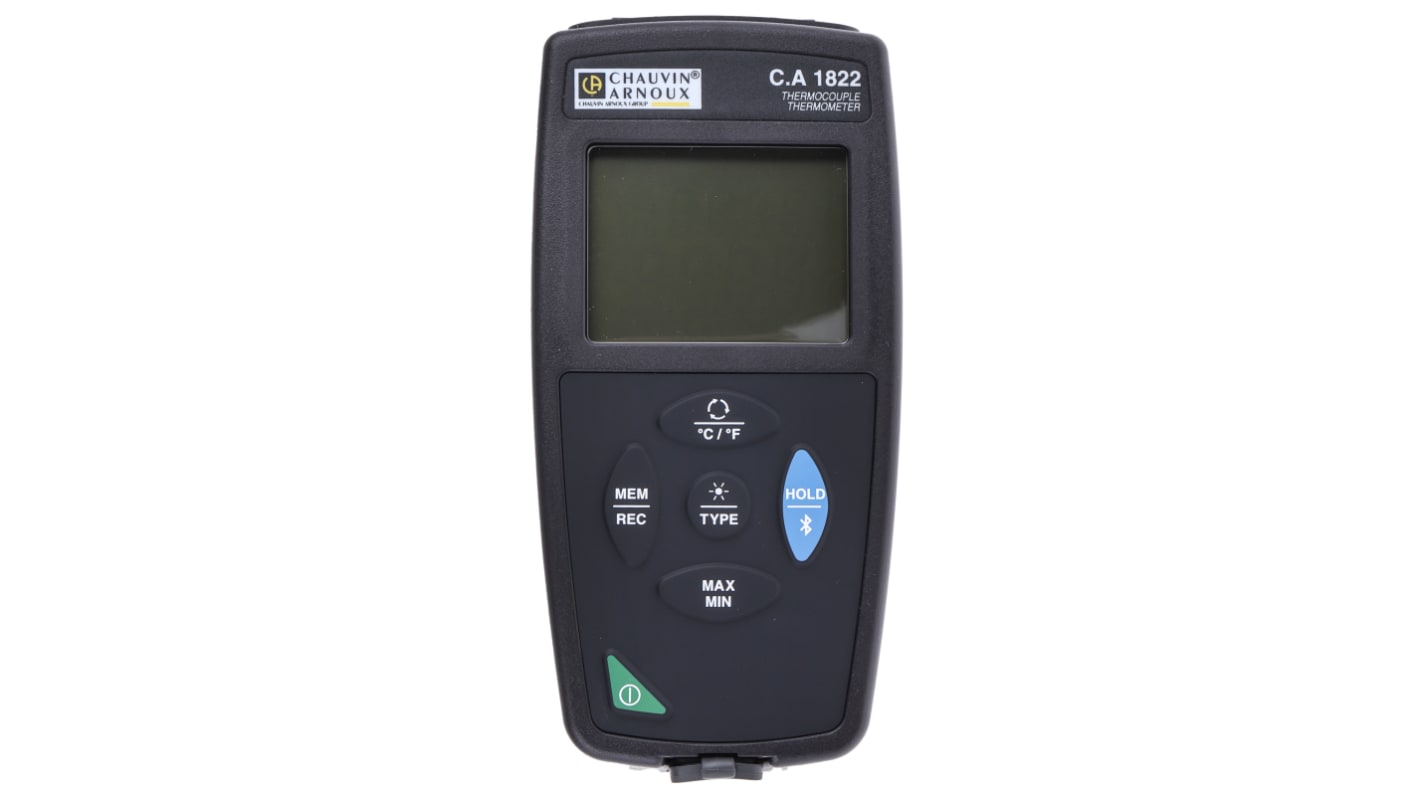

Chauvin Arnoux C.A 1822 Thermometer 2 Input KJTENRS Thermocouple

Chauvin Arnoux C.A 1822 is a single-input, data logging digital thermometer which allows you to log temperature readings from a single attached temperature probe. Compact and magnetised for fixed or portable use, the C.A 1822 is an accurate, versatile, long-lasting thermometer. Featuring a wide backlit display, it offers useful functions for work in the field, such as Min, Max, Hold, ΔT differential temperature measurement and spot or programmable recording possibilities. Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by the Data Logger Transfer software. Suitable for use with type J, K, T, N, E and R thermocouple temperature probes. The C.A 1822 is ideal for use in any temperature measurement application, provided you have the correct probe.

Feature and Benefits

• Compact and magnetised for fixed or portable use • Wide backlit display
• Recording up to 1 million points
• ΔT differential temperature measurement
• Communicating via USB or Bluetooth
• Alarms and recording trigger on alarms
• Battery life of up to 3 years
• IP54 casing
• Data Logger Transfer software with automatic report generation
• 2 inputs for K, J, T, N, E, R or S thermocouples
• Measurement Range: - 210°C to +1767°C
• Dimensions: 150 x 72 x 32 mm
• Weight: 260 g with batteries

Supplied with

Bag, 3 x 1.5 V AA alkaline batteries, USB cable, test report and quick start-up guide

Specifications
Attribute Value
Absolute Maximum Temperature Measurement +400 (T) °C, +752 (T) °F, +950 (E) °C, +1200 (J) °C, +1300 (N) °C, +1372 (K) °C, +1742 (E) °F, +1767 (R) °C, +1767 (S) °C, +2192 (J) °F, +2372 (N) °F, +2501 (K) °F, +3212 (R) °F, +3212 (S) °F
Thermometer Type Handheld
Probe Type E, J, K, N, R, S, T
Application Multipurpose
Best Accuracy ±(0.1% R + 0.6°C)
Number of Temperature Inputs 2
Resolution 0.1 °C, 0.1 °F
Data Storage Yes
Length 150mm
Width 72mm
Height 32mm
Dimensions 150 x 72 x 32mm
Minimum/Maximum Recordings Yes
Battery Type 1.5 V AA/LR6 Alkaline
Temperature Scale Centigrade, Fahrenheit
Model Number p C.A 1822
Weight 260 (with Battery)g
2 In stock - FREE next working day delivery available
13 available from Europe for delivery within 1 working day(s).
Price Each
£ 165.55
(exc. VAT)
£ 198.66
(inc. VAT)
Units
Per unit
1 +
£165.55
