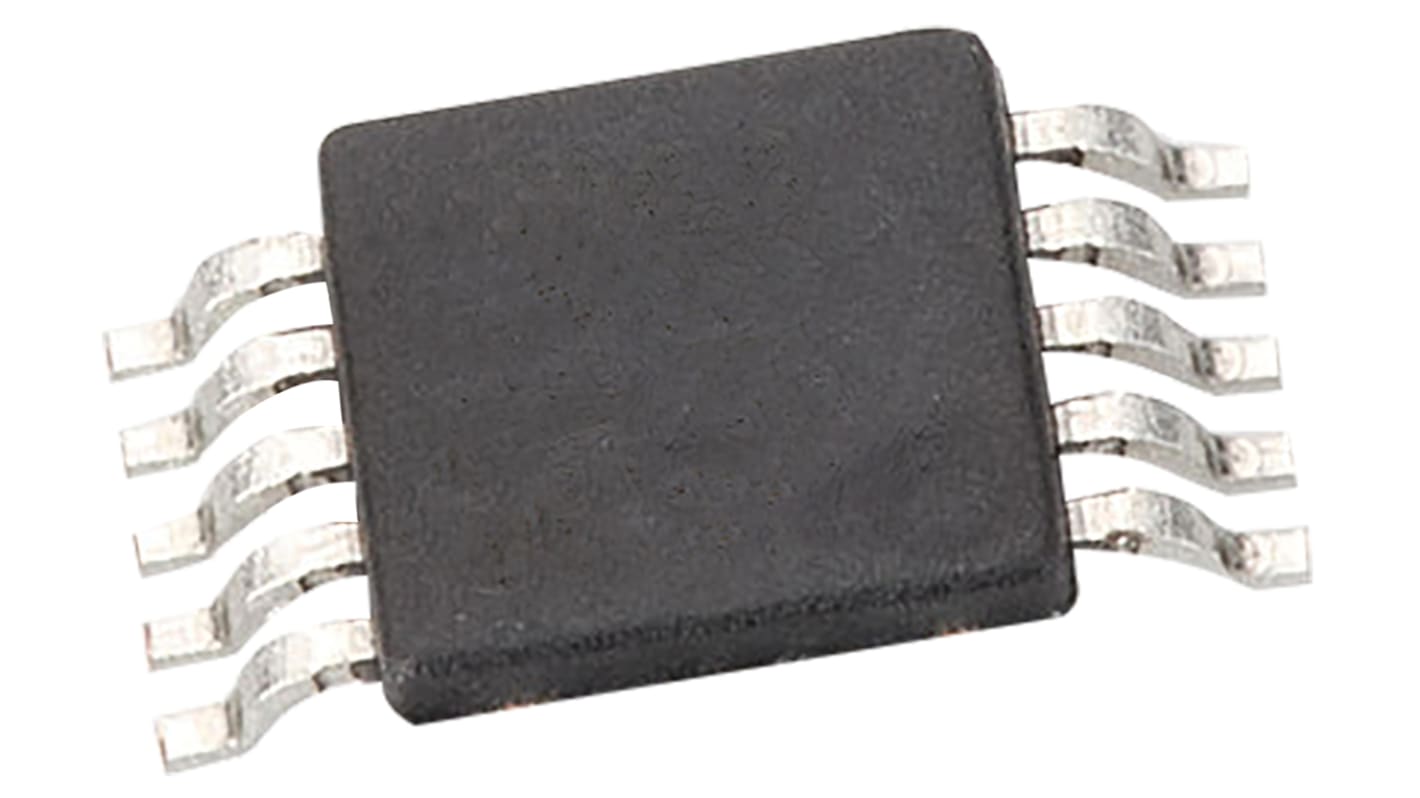

AD5200BRMZ50, Digital Potentiometer 50kΩ 256-Position Linear Serial-3 Wire, Serial-SPI 10 Pin, MSOP
- RS Stock No.:
- 709-5695
- Mfr. Part No.:
- AD5200BRMZ50
- Brand:
- Analog Devices
Discontinued product
- RS Stock No.:
- 709-5695
- Mfr. Part No.:
- AD5200BRMZ50
- Brand:
- Analog Devices
Technical Reference
Legislation and Compliance
Product Details
Digital Potentiometer (Single, 50KΩ), Analog Devices
Digital Potentiometer - Analog Devices
Specifications
Attribute | Value |
|---|---|
| Control Interface | Serial-3 Wire, Serial-SPI |
| Resistance Value | 50kΩ |
| Number of Positions | 256 |
| Taper Type | Linear |
| Memory Type | Volatile |
| Number of Pots per Package | 1 |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 10 |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 3 V, 5 V |
| Typical Dual Supply Voltage | ±2.5V |
| Dimensions | 3 x 3 x 0.85mm |
| Height | 0.85mm |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
