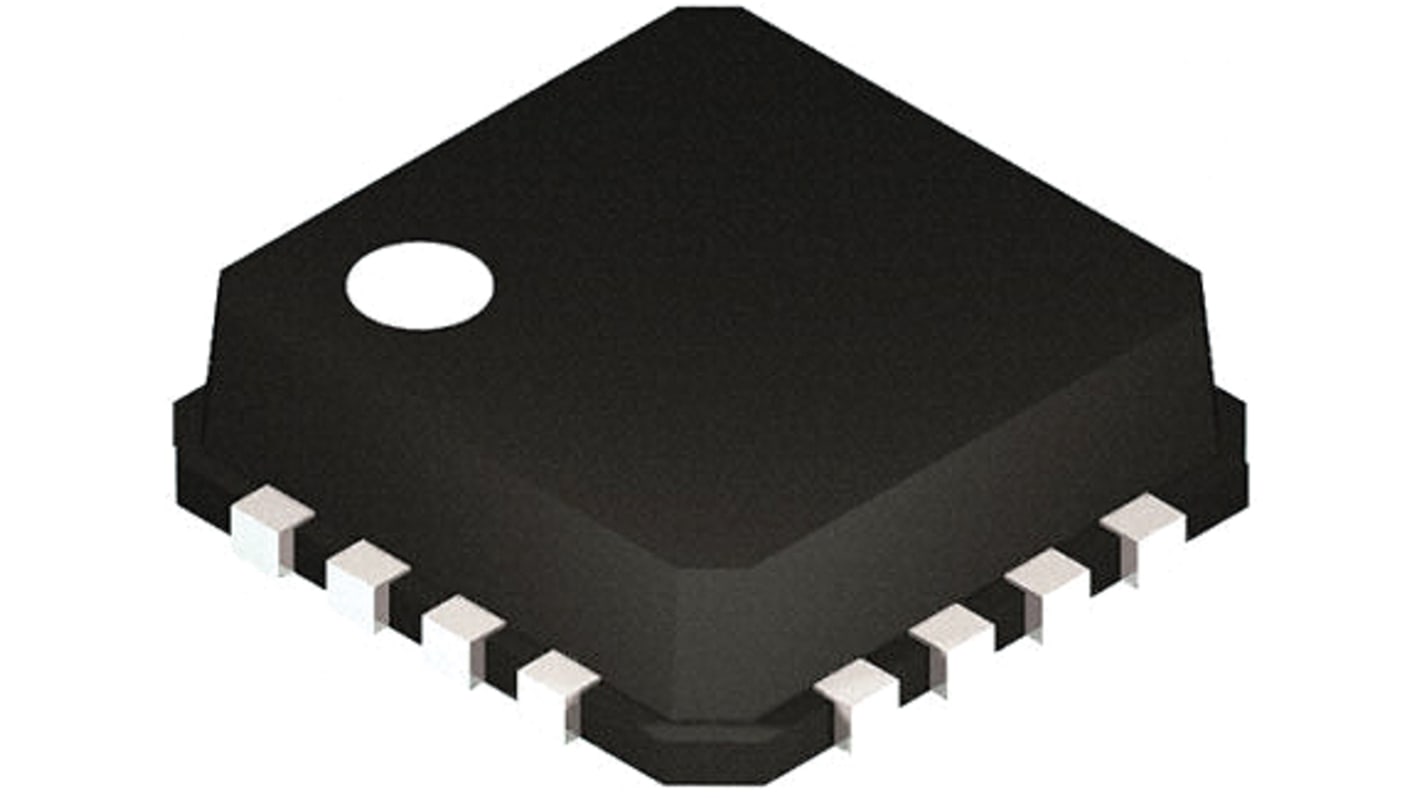

AD5141BCPZ100-RL7, Digital Potentiometer 100kΩ 256-Position Log Serial-I2C, Serial-SPI 16 Pin, LFCSP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Digital Potentiometer (Single, 100KΩ), Analog Devices

Digital Potentiometer - Analog Devices

Specifications
Attribute Value
Control Interface Serial-I2C, Serial-SPI
Resistance Value 100kΩ
Number of Positions 256
Taper Type Log
Memory Type Non-Volatile
Number of Pots per Package 1
Mounting Type Surface Mount
Package Type LFCSP
Pin Count 16
Power Supply Type Dual, Single
Typical Single Supply Voltage 2.3 → 5.5 V
Typical Dual Supply Voltage ±2.25 → ±2.75V
Dimensions 3.1 x 3.1 x 0.75mm
Height 0.75mm
Minimum Operating Temperature -40 °C
Length 3.1mm
Maximum Operating Temperature +125 °C
Width 3.1mm
Available to back order for despatch 18/01/2021
Price Each (On a Reel of 1500)
£ 1.037
(exc. VAT)
£ 1.244
(inc. VAT)
Units
Per unit
Per Reel*
1500 +
£1.037
£1,555.50
*price indicative
