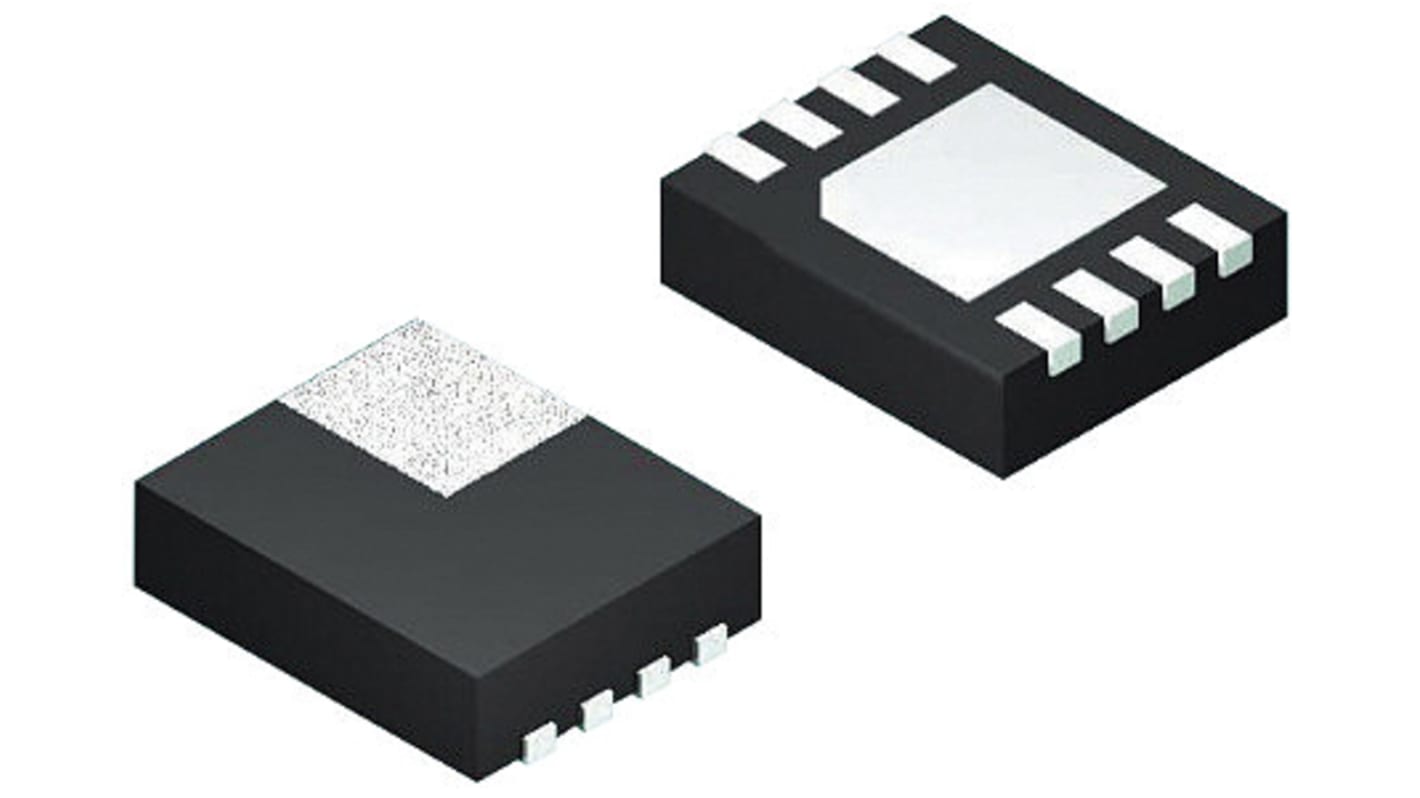

AD8137YCPZ-R2 Analog Devices, Differential Amplifier 110MHz Rail to Rail Output 8-Pin LFCSP
- RS Stock No.:
- 160-2822
- Mfr. Part No.:
- AD8137YCPZ-R2
- Brand:
- Analog Devices
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 250)
£2.622
(exc. VAT)
£3.146
(inc. VAT)
| Units | Per unit | Per Reel* |
| 250 - 500 | £2.622 | £655.50 |
| 750 + | £2.556 | £639.00 |
| *price indicative | ||
- RS Stock No.:
- 160-2822
- Mfr. Part No.:
- AD8137YCPZ-R2
- Brand:
- Analog Devices
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Differential Amplifiers, Analog Devices
Differential Amplifiers by Analog Devices are integrated and optimised for differential signalling applications. These speciality amplifiers have inherent common mode rejection properties that provide a low harmonic distortion with an output gain and phase matching. Applications include driving or receiving signals over long cable lengths, driving a balanced ADC input and looking for complementary outputs.
Differential Amplifiers, Analog Devices
Specifications
Attribute | Value |
|---|---|
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 12 V |
| Typical Dual Supply Voltage | ±6V |
| Maximum Input Offset Voltage | 2.75mV |
| Maximum Input Resistance | 800kΩ |
| Maximum Voltage Gain | 91dB |
| Typical Gain Bandwidth Product | 110MHz |
| Minimum CMRR | 62dB |
| Number of Channels per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Pin Count | 8 |
| Rail to Rail | Rail to Rail Output |
| Maximum Supply Current | 240 μA |
| Maximum Operating Temperature | 125 °C |
| Dimensions | 3.1 x 3.1 x 0.8mm |
| Height | 0.8mm |
| Width | 3.1mm |
| Minimum Operating Temperature | -40 °C |
| Length | 3.1mm |
